Aero, super-wide, incredibly-lightweight

35 DEEP | 27 WIDE Ext | 19 Wide Int | 397G

Disc specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on its primary roles of supporting the tire and spoke forces. The 35 Carbon Aero Disc specific rim's smooth rounded disc-specific side wall also looks stunning of course. The rim dimensions are seriously wide at 27mm (19mm internal) which creates a great tire profile with wider 23-50mm tires, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

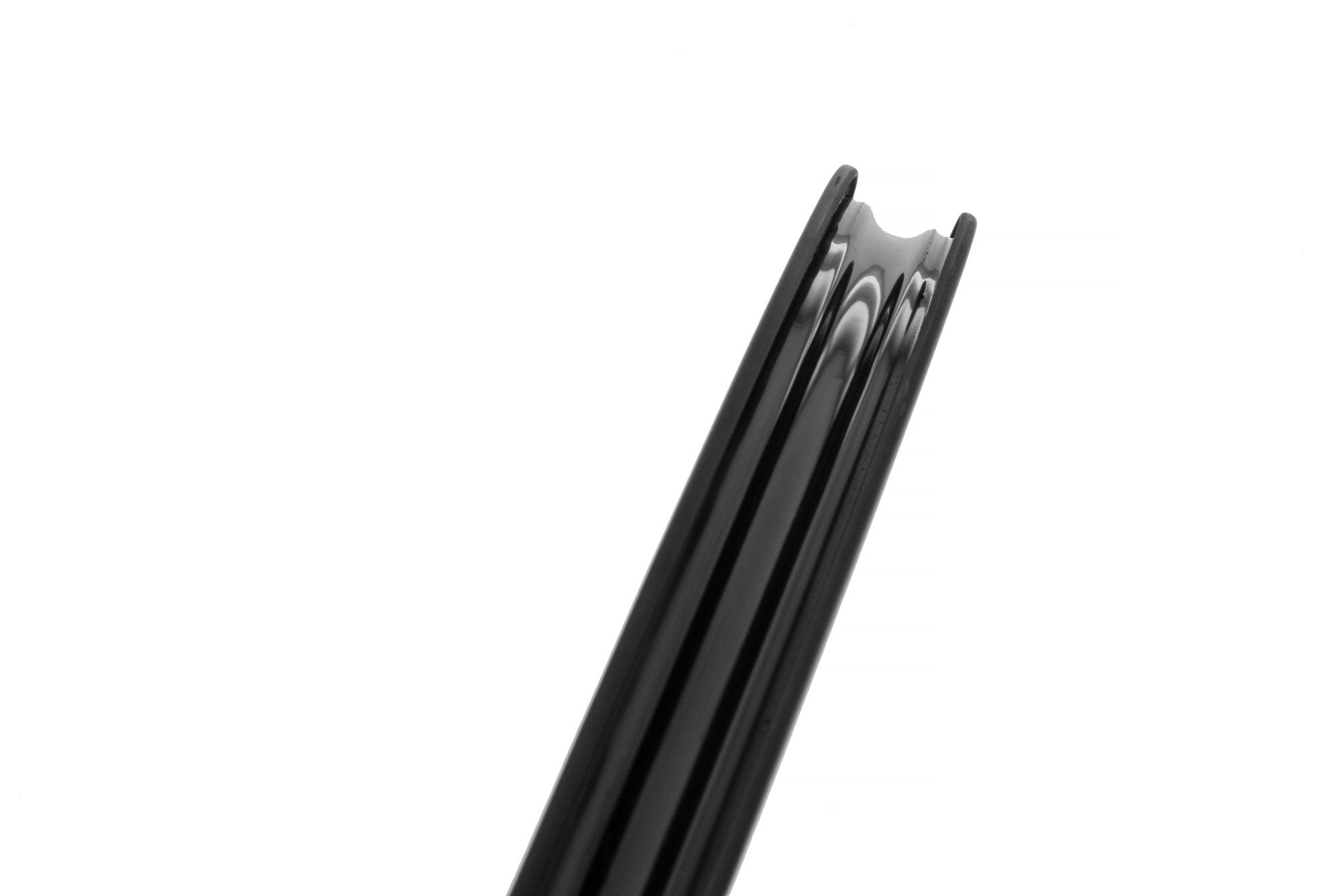

H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course, all our tubeless-ready rims are also designed to work perfectly with most clincher tires and inner tubes.

Detailed Specifications

Rim

• Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
• Disc-specific tubeless-ready profile
• H-lock bead-seat up-kicks for easy and secure tubeless installation
• Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes

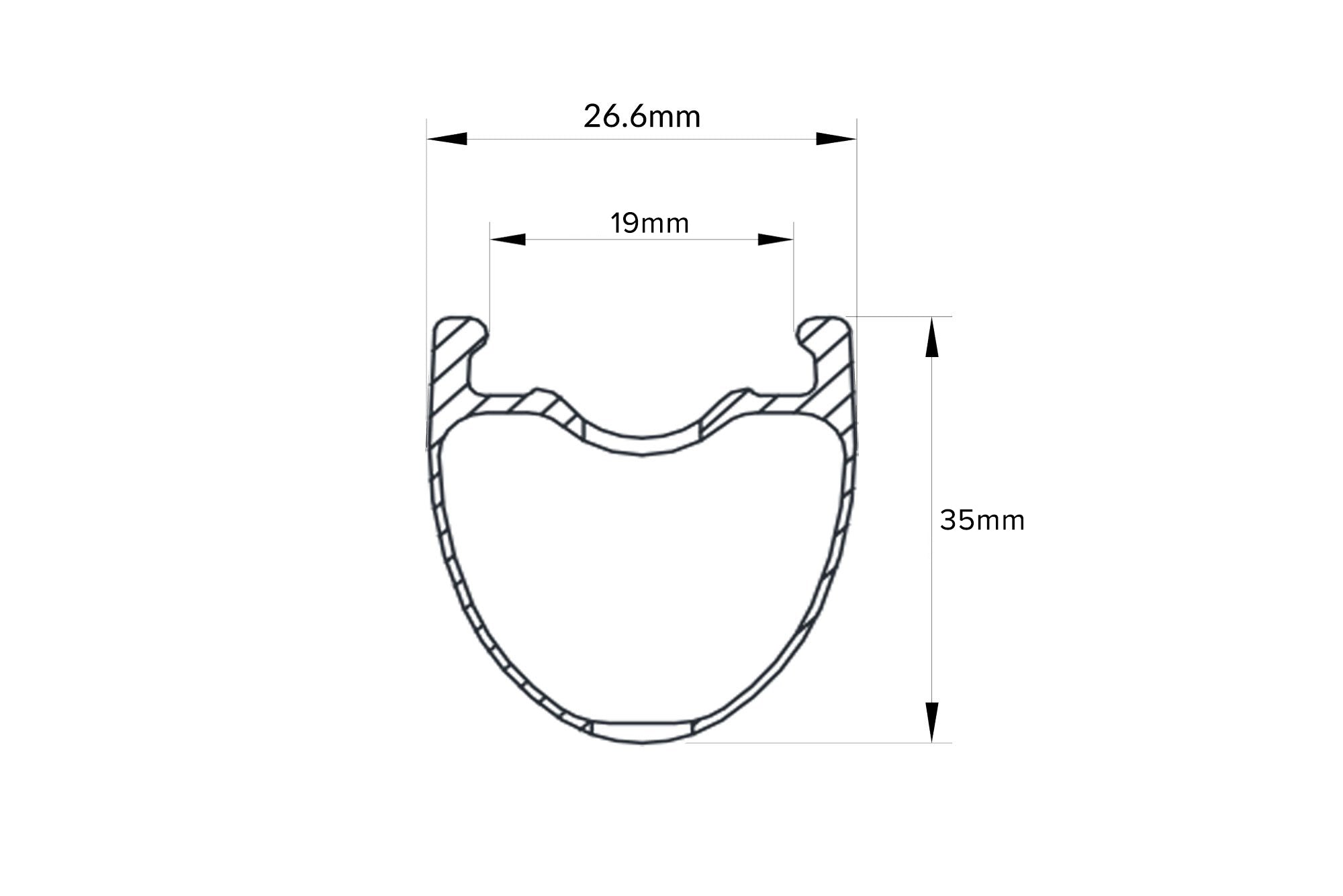

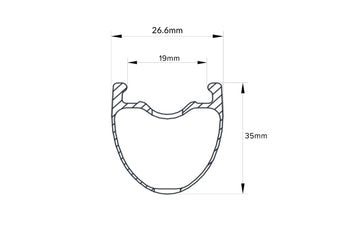

• 27mm outer and 19mm inner width ideal for 23-50mm tire widths
• 35mm depth
• Matt black base finished with matt white contrasting graphics.

• Maximum tire pressure for this rim is 100 psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
• Maximum tire pressures for other tire sizes 30mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 40psi, 46mm+ do not exceed 35psi.
• Please do not exceed the maximum pressure stated on your tire.
• ERD 578.7mm
• Lacing:
• Front - Cross 2
• Rear - Cross 2 (Interlaced)
• Recommended spoke tension:
• Front/Rear - 115 -130 kgf
