HUNT 35 Carbon Gravel Disc X-Wide Rim
HUNT 35 Carbon Gravel Disc X-Wide Rim
HUNT 35 Carbon Gravel Disc X-Wide Rim

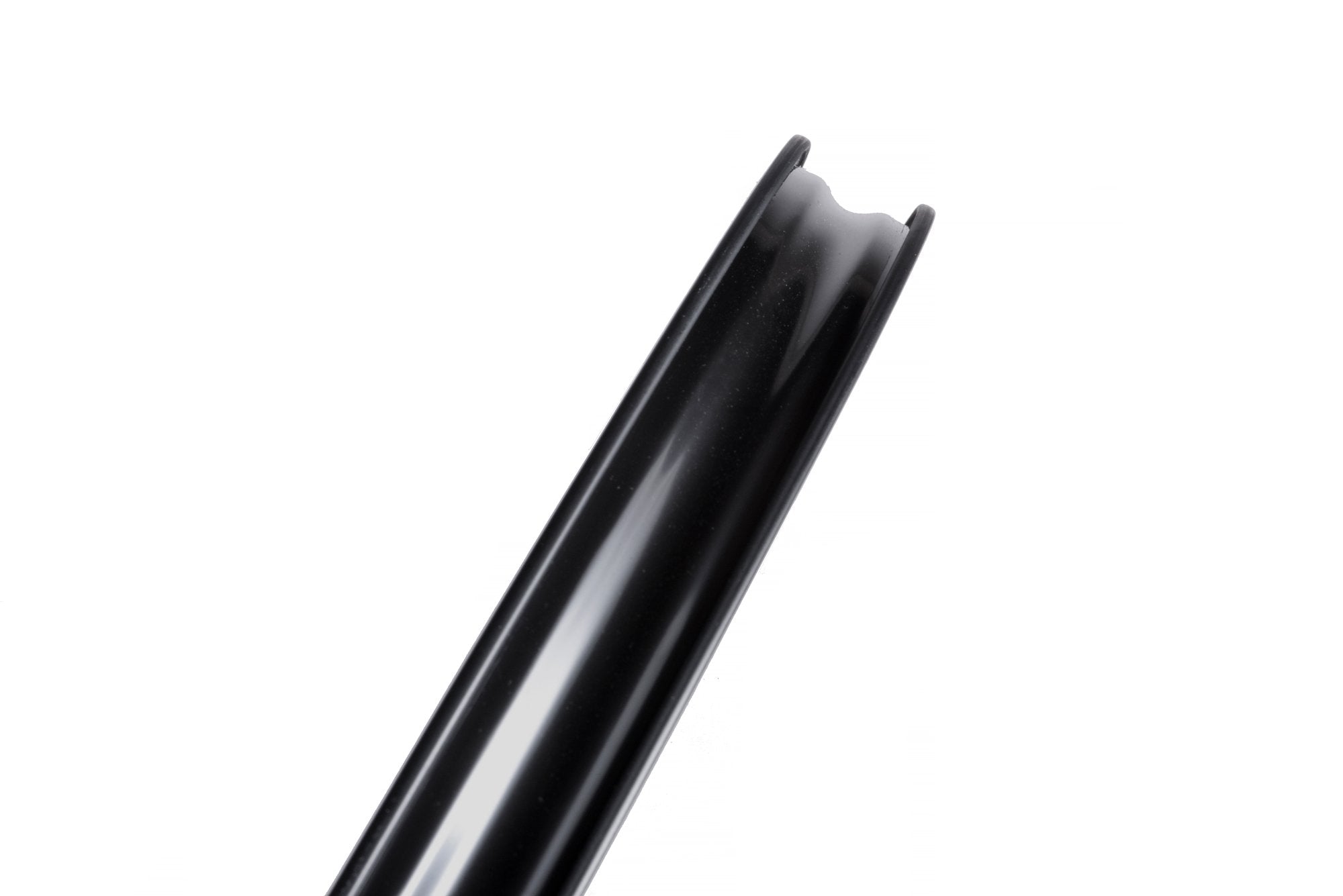

<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
HUNT 35 Carbon Gravel Disc X-Wide Rim
HUNT 35 Carbon Gravel Disc X-Wide Rim
HUNT 35 Carbon Gravel Disc X-Wide Rim
HUNT 35 Carbon Gravel Disc X-Wide Rim
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

HUNT 35 Carbon Gravel Disc X-Wide Rim

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 420G

THE LAST WORD IN SERIOUSLY FAST RIDING ACROSS TOUGH GRAVEL. OPTIMISED FOR WIDE TIRES ABOVE 35C, TO HIT THE ROUGH STUFF WITH CONFIDENCE.

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 420G

Disc specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tire and spoke forces. The 35 Carbon Gravel Disc X-Wide specific rim's smooth rounded disc specific side wall also looks stunning of course. The rim dimensions are extremely wide at 30mm (23mm internal) which creates a great tire profile with wider 35-50mm tires, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
  • Disc-specific tubeless-ready profile
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 30mm outer and 23mm inner width ideal for 35mm+ tire widths
  • 35mm depth
  • Matt black base finished with matt white contrasting graphics.
  • Maximum tire pressure for this rim is 60psi when used with 35-40mm tires. Maximum tire pressures for other tire sizes: 28mm do not exceed 90psi, 30-34mm do not exceed 70psi, 45-50mm do not exceed 45psi. Please do not exceed the maximum pressure stated on your tire.
  • ERD 568.2mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended Spoke Tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf

THE LAST WORD IN SERIOUSLY FAST RIDING ACROSS TOUGH GRAVEL. OPTIMISED FOR WIDE TIRES ABOVE 35C, TO HIT THE ROUGH STUFF WITH CONFIDENCE.

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 420G

Disc specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tire and spoke forces. The 35 Carbon Gravel Disc X-Wide specific rim's smooth rounded disc specific side wall also looks stunning of course. The rim dimensions are extremely wide at 30mm (23mm internal) which creates a great tire profile with wider 35-50mm tires, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
  • Disc-specific tubeless-ready profile
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 30mm outer and 23mm inner width ideal for 35mm+ tire widths
  • 35mm depth
  • Matt black base finished with matt white contrasting graphics.
  • Maximum tire pressure for this rim is 60psi when used with 35-40mm tires. Maximum tire pressures for other tire sizes: 28mm do not exceed 90psi, 30-34mm do not exceed 70psi, 45-50mm do not exceed 45psi. Please do not exceed the maximum pressure stated on your tire.
  • ERD 568.2mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended Spoke Tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf

HUNT 35 Carbon Gravel Disc X-Wide Rim

35 DEEP | 30 WIDE EXT | 23 WIDE INT | 420G

Regular price $479.00
Limited Stock
HUNT 35 Carbon Gravel Disc X-Wide Rim $479.00
