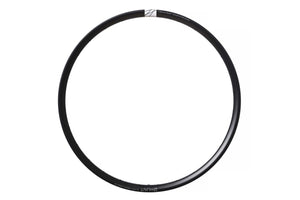

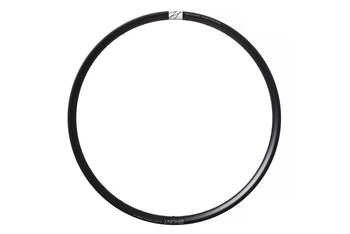

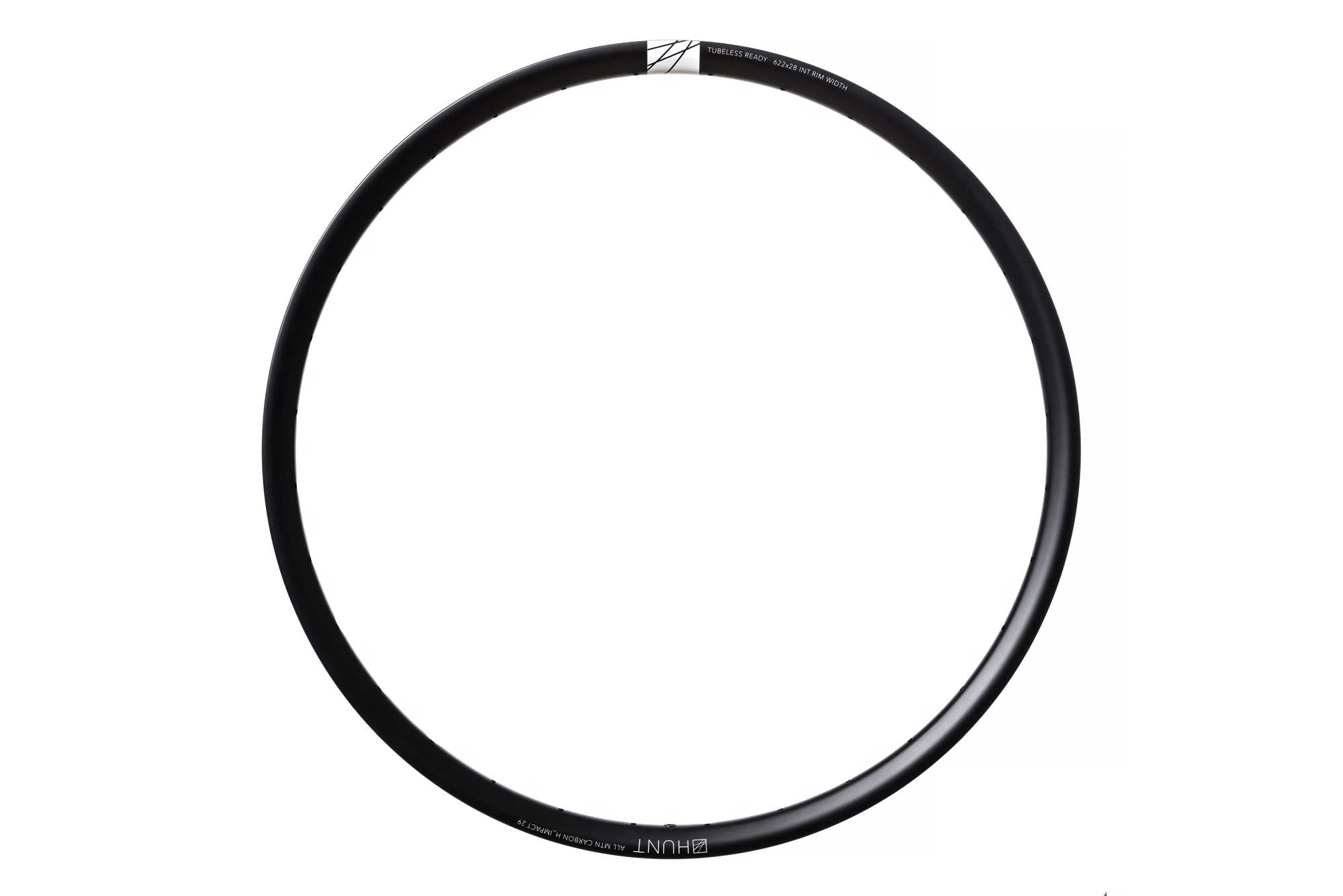

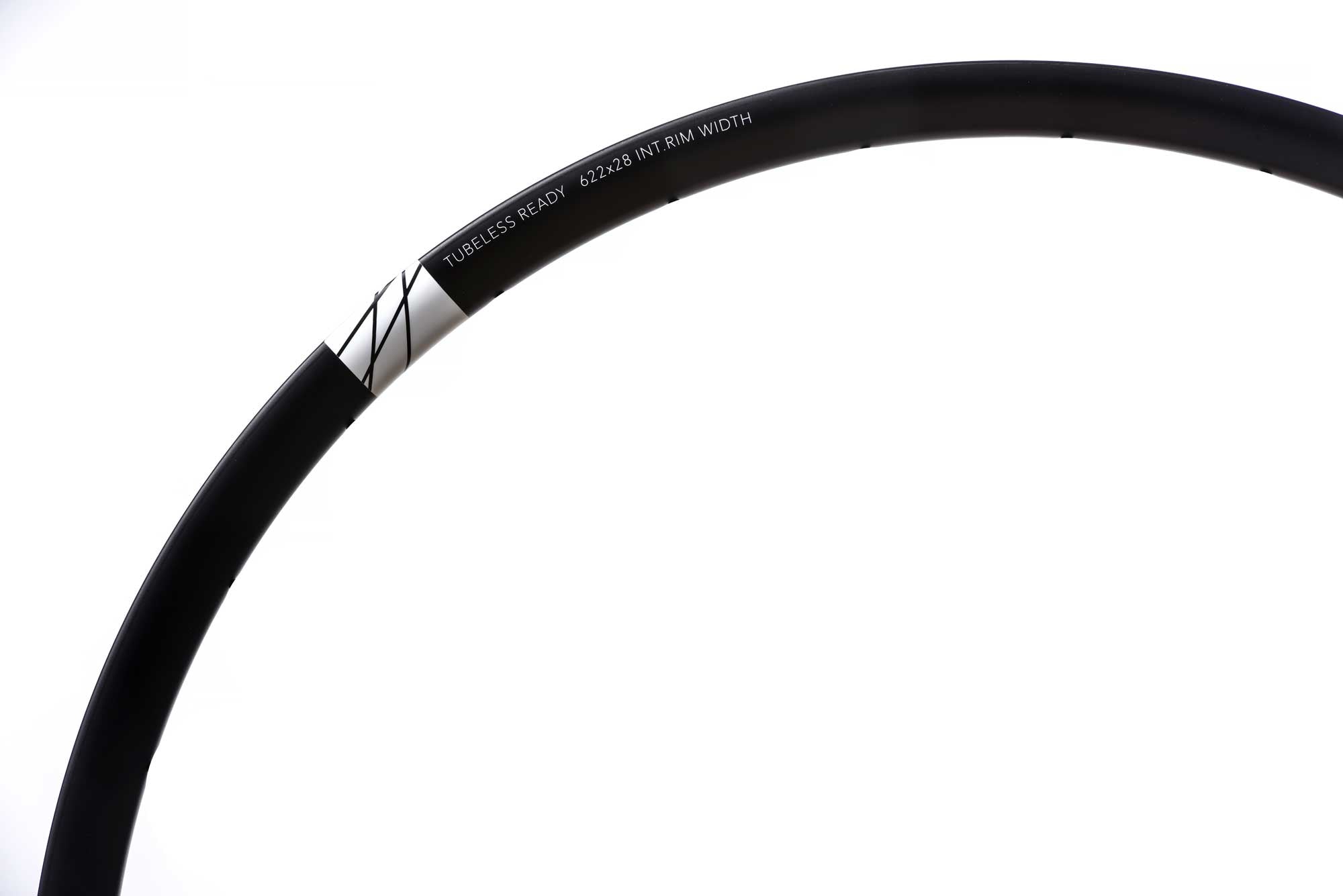

HUNT All Mountain Carbon H_Impact Rim
HUNT All Mountain Carbon H_Impact Rim
HUNT All Mountain Carbon H_Impact Rim

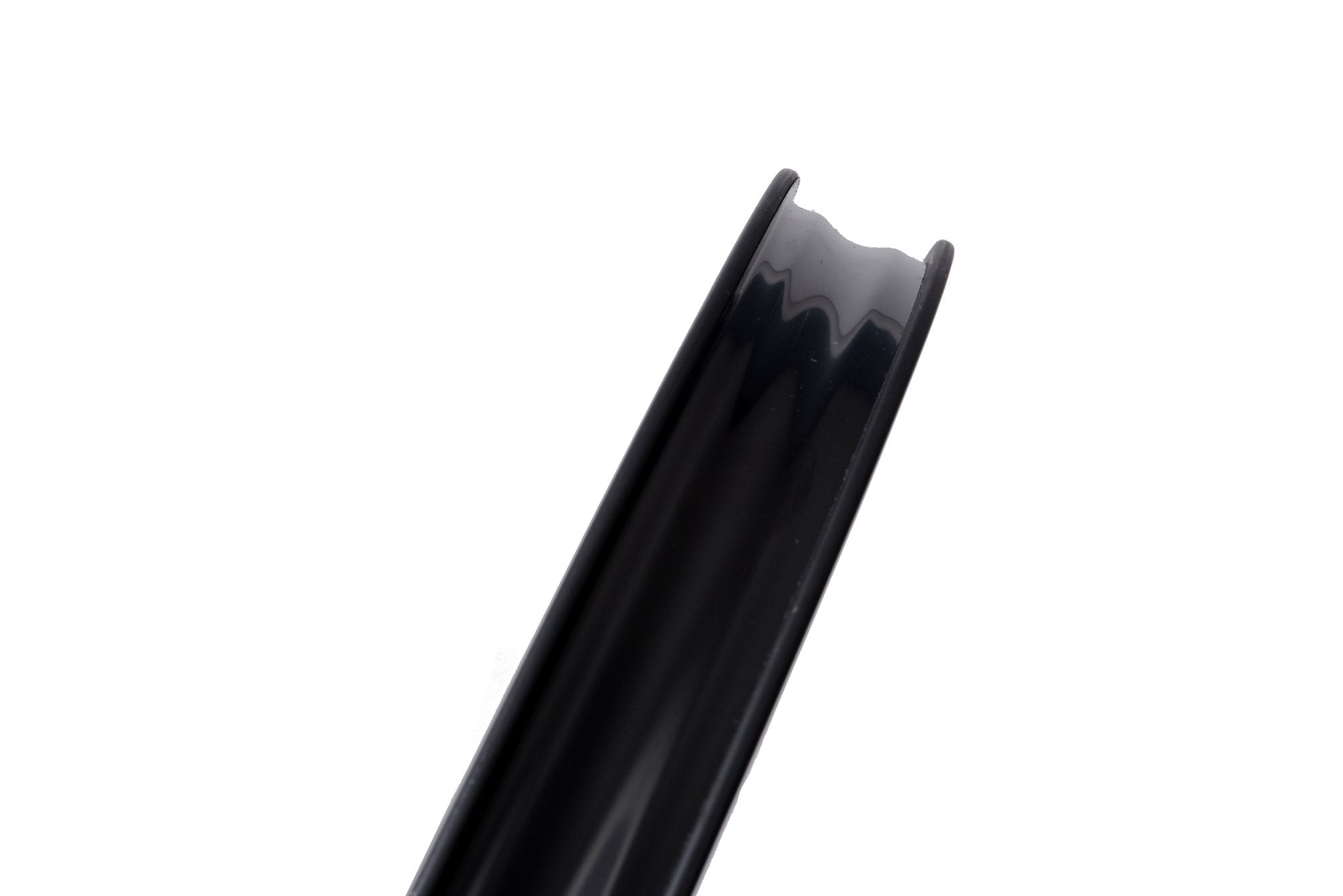

<h1>Rim Profile</h1><i>Like all of our wheels, the HUNT MTB line-up is designed to be used as a tubeless system. Featuring a Hookless H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>
HUNT All Mountain Carbon H_Impact Rim
HUNT All Mountain Carbon H_Impact Rim
HUNT All Mountain Carbon H_Impact Rim
HUNT All Mountain Carbon H_Impact Rim
<h1>Rim Profile</h1><i>Like all of our wheels, the HUNT MTB line-up is designed to be used as a tubeless system. Featuring a Hookless H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>

HUNT All Mountain Carbon H_Impact Rim

Front: 27.5/29" | 28 WIDE INT | 475/500g

Rear: 27.5/29" | 28 WIDE INT | 535/560g

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back

Responsive, compliant and incredibly strong

Front: 27.5/29" | 28 Wide Int | 475/500g

Rear: 27.5/29" | 28 Wide Int | 535/560g

We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Front rim weight 475/535g (27.5"/29") – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.

Rear rim weight 535/560g (27.5"/29") – High impact lay-up with extra material matched to the higher 32 spoke count. Greater impact strength, better stability and more precise tracking at speed.

Detailed Specifications

Rim

  • Hookless Tubeless-ready – designed to work excellently with tubeless tires. Tubeless rim tape offered separately.
  • H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
  • Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 28mm internal width ideal for 2.3"-2.5" tire widths, but also work very well with 2.25"-2.6".
  • Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
  • ERD
    • 27.5" - 560mm
    • 29" - 598mm
  • Lacing
    • Front - Cross 3
    • Rear - Cross 3
  • Recommended Spoke Tensions
    • Front/Rear - 105-120 kgf

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back

Responsive, compliant and incredibly strong

Front: 27.5/29" | 28 Wide Int | 475/500g

Rear: 27.5/29" | 28 Wide Int | 535/560g

We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Front rim weight 475/535g (27.5"/29") – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.

Rear rim weight 535/560g (27.5"/29") – High impact lay-up with extra material matched to the higher 32 spoke count. Greater impact strength, better stability and more precise tracking at speed.

Detailed Specifications

Rim

  • Hookless Tubeless-ready – designed to work excellently with tubeless tires. Tubeless rim tape offered separately.
  • H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
  • Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 28mm internal width ideal for 2.3"-2.5" tire widths, but also work very well with 2.25"-2.6".
  • Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
  • ERD
    • 27.5" - 560mm
    • 29" - 598mm
  • Lacing
    • Front - Cross 3
    • Rear - Cross 3
  • Recommended Spoke Tensions
    • Front/Rear - 105-120 kgf

HUNT All Mountain Carbon H_Impact Rim

Front: 27.5/29" | 28 WIDE INT | 475/500g

Rear: 27.5/29" | 28 WIDE INT | 535/560g

Regular price $419.00
Limited Stock
HUNT All Mountain Carbon H_Impact Rim $419.00
