HUNT 30 Carbon CX Disc Tubular Wheelset

1432g Depth Width ext size
30 mm 25 mm 700c

For the best acceleration and traction in competitive cyclocross racing, there's no substitute for a wide, CX-specific tubular wheelset. We've developed and
tested this wheelset with top 'cross athletes to ensure its fit for purpose, whether you're chasing UCI points abroad or faster lap times at your local series.

Tyre size: Optimized for 33mm tubular tyres. work well with 25-40mm. Please note - not suitable for normal clincher or tubeless tyres.

SAVE £200 IF YOU BUY 2 SETS

We know that those of you who are at the sharper end of cyclocross races will be running second bikes or, at least, 2 sets of wheels. We’d love to do our best to support all racers, and so on the 30 Carbon CX Disc we can offer £200 off a second set for your racing. Add the two sets of wheels to your cart and enter the code HUNTCX30 when on the payment page to receive discount.

£899
Limited Stock. Available Now.Items are selected to ship from us in the week stated. Delivery time is 3-7 days*

We will ask for axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Purpose _

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>

The Purpose _

After years of working with UCI Elite cyclocross racer, Gosse van der Meer, we are excited to present to you the wheels that will be used at the highest level of the sport, the 30 Carbon CX Disc Tubular are built for podium chasers. As huge proponents of tubeless for the vast majority of uses, there can be little argument that tubular tyres are the best option for ultimate 'cross performance. The primary reason for this is of course the impossibility of 'burping' air out of your tyre when cornering hard.

The CX Race Tubular wheelset couples our race-proven 30mm tubular rim with our 5-degree/6-pawl RapidEngage hub (inclusive of H_CERAMIK freehub and extra seals), and a 24/24 spoke count, resulting in a strong cyclocross wheelset that can mix it with the world's best, or just your rivals in your local races. The 25mm rim width is the ideal platform for a 33c tubular tyre, meaning you can hit your local courses with confidence! The bladed spokes reduce weight, add strength and respond instantly to your accelerations when paired with our RapidEngage hubs.

Full Specs _

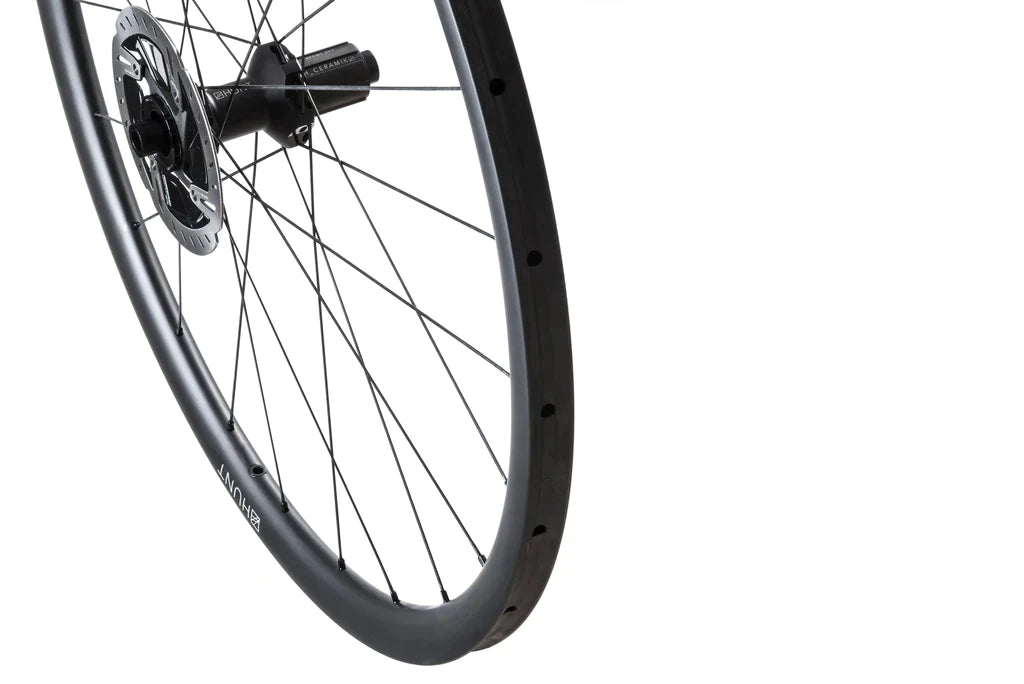

Rims
Disc-specific tubular profile Toray T700/T800 carbon-fibre tubular. Unidirectional sidewalls with 3K weave reinforced bed and spoke areas. 25mm width, optimised for 33c tyre widths but great down to 25c for road use 30mm depth Matt black base finished with matt white contrasting graphics.
  • Disc-specific tubular profile
  • Toray T700/T800 carbon-fibre tubular. Unidirectional sidewalls with 3K weave reinforced bed and spoke areas.
  • 25mm width, optimised for 33c tyre widths but great down to 25c for road use
  • 30mm depth
  • Matt black base finished with matt white contrasting graphics.
Spokes
24 front and rear, laced 2 cross. Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2. Straight-pull Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area. Black stainless treatment
  • 24 front and rear, laced 2 cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • Straight-pull
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • Black stainless treatment
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.

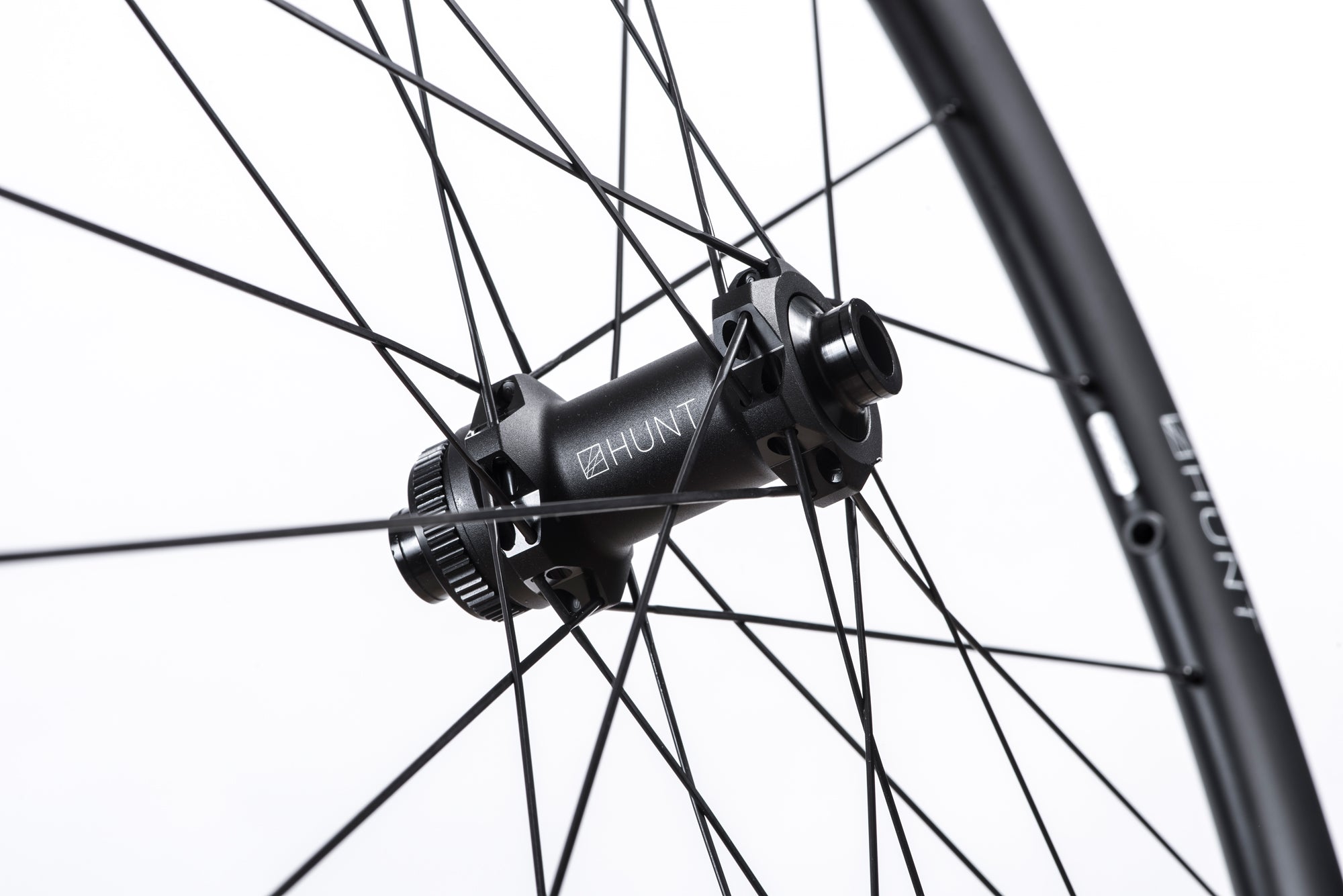

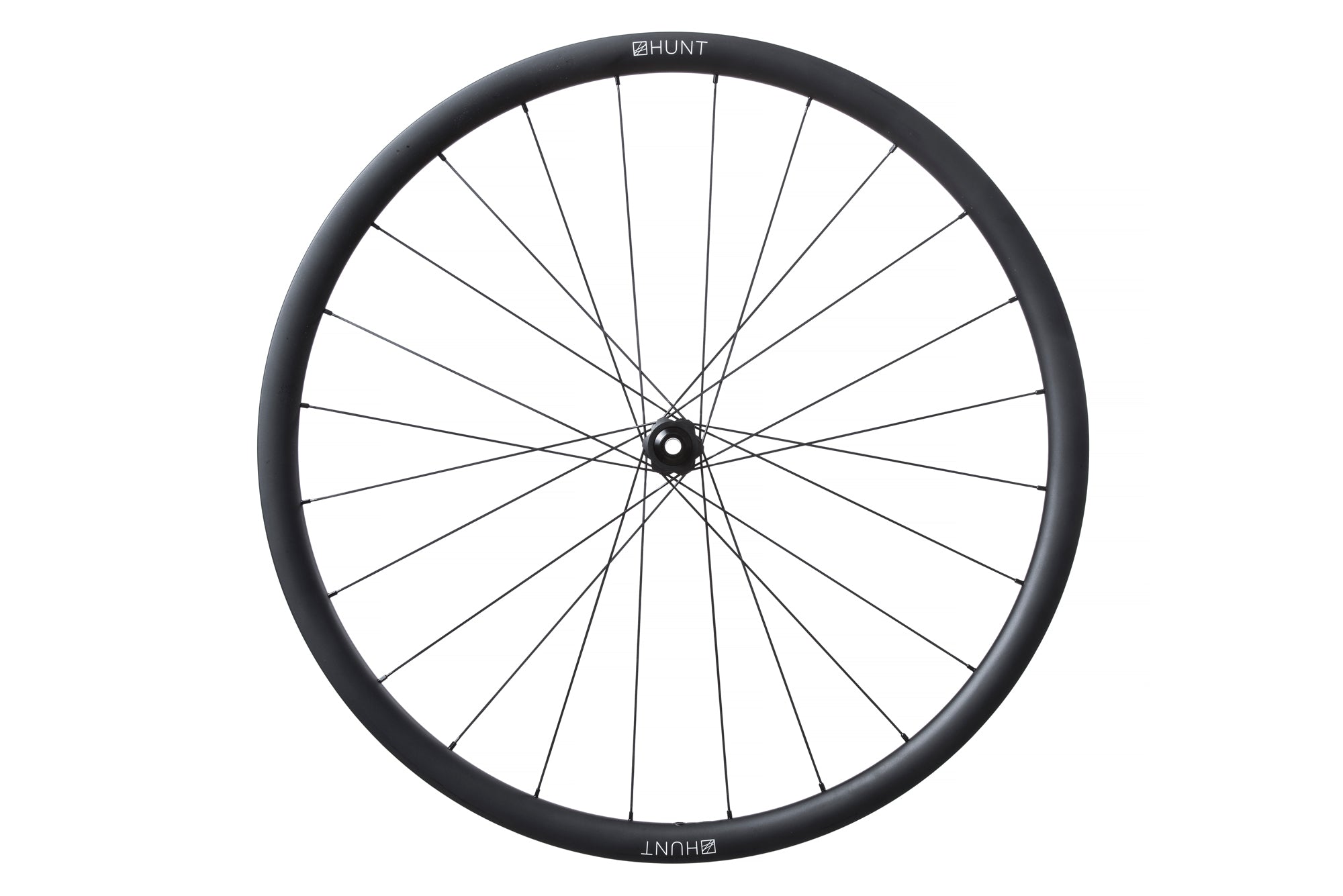

Front Hub
HUNT Sprint Disc designed for race use, with extra bearing shielding and sealing. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • HUNT Sprint Disc designed for race use, with extra bearing shielding and sealing.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.

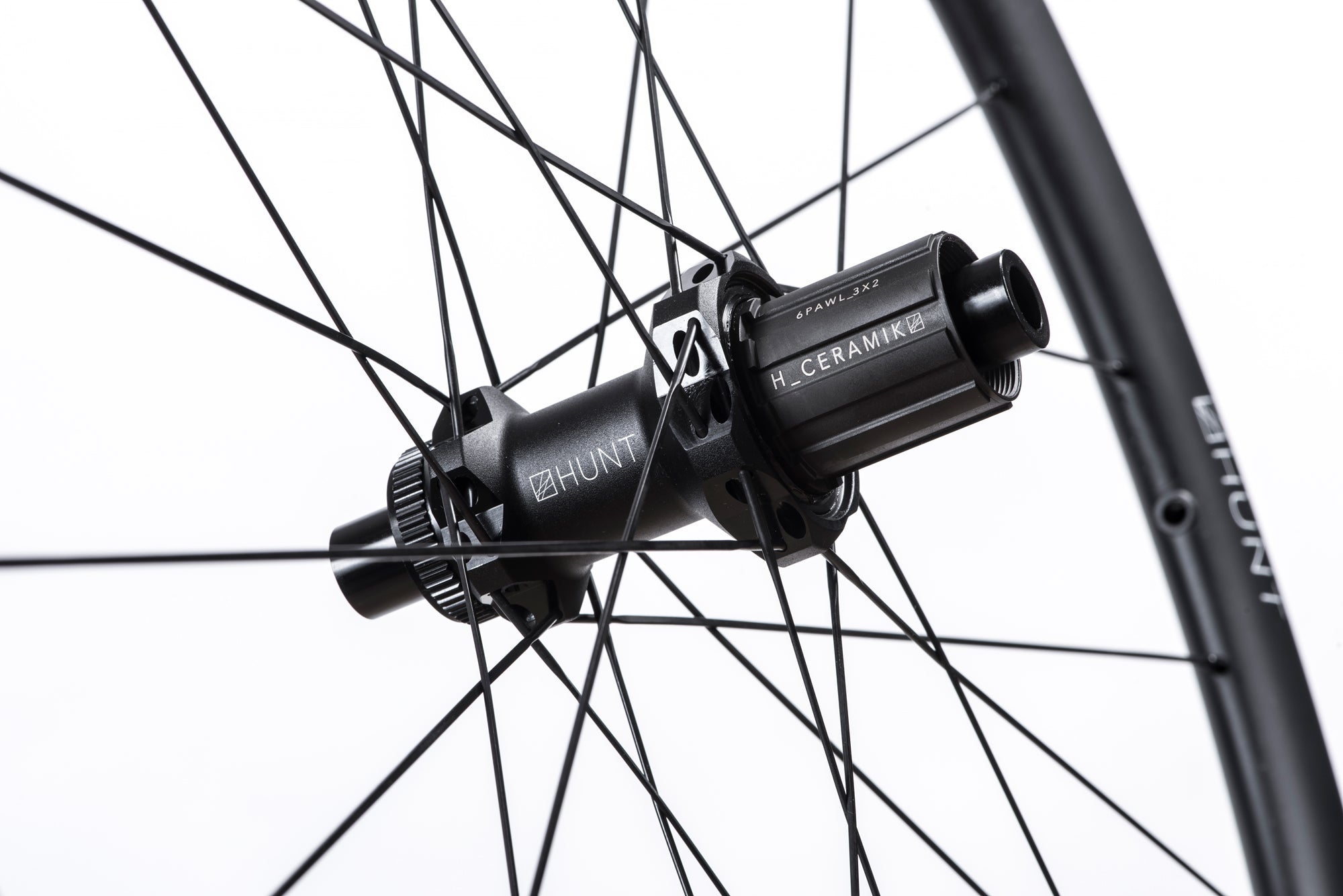

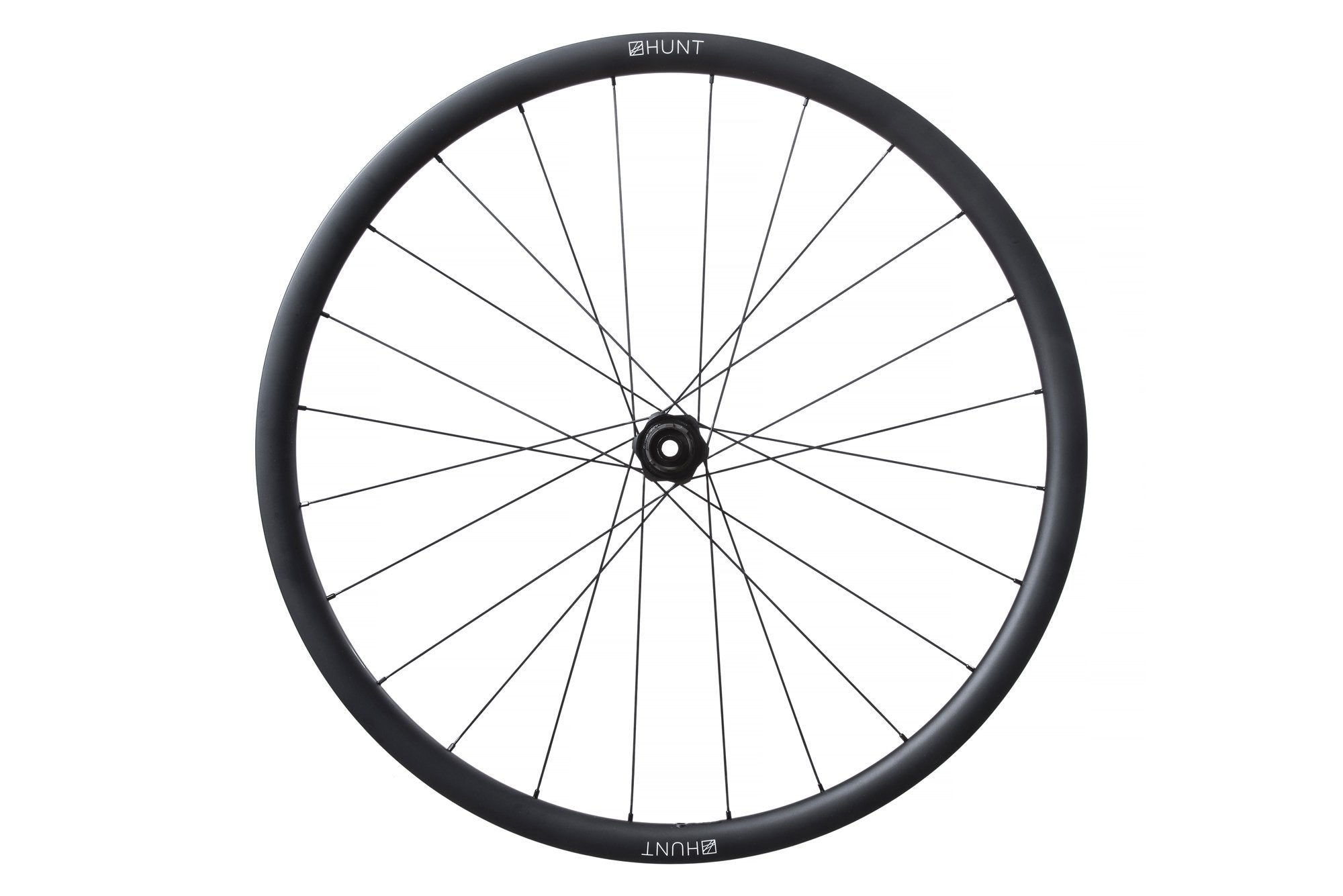

Rear Hub
7075-T6 heat-treated aluminium ceramic-coated alloy freehub body H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 6-pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5° All freehub standards accounted for. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here Polished anodized black finish with laser graphics.
  • 7075-T6 heat-treated aluminium ceramic-coated alloy freehub body
  • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 6-pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5°
  • All freehub standards accounted for.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Polished anodized black finish with laser graphics.
Bearings
By EZO Japan. Sealed cartridge replaceable units. Dual full-contact seals.
  • By EZO Japan.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.

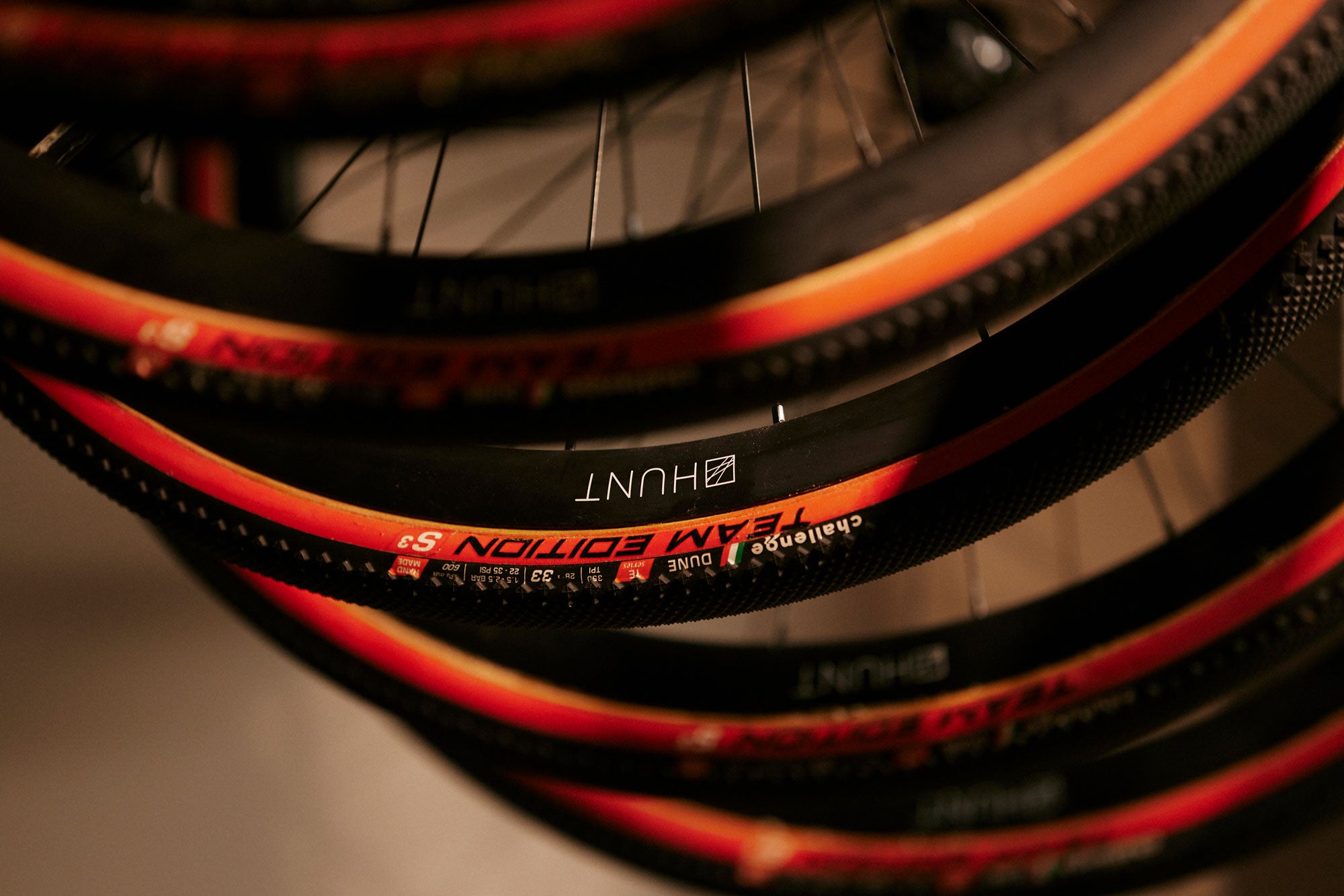

Tyres Info
Optimised for 33c CX tyres Can take anything down to 23c and up to 34c Please do not exceed the maximum pressure stated on your tyre Suitable for tubular tyres only
  • Optimised for 33c CX tyres
  • Can take anything down to 23c and up to 34c
  • Please do not exceed the maximum pressure stated on your tyre
  • Suitable for tubular tyres only
Axle Sizes
Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.
  • Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

Rim Surface

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively. Race-proven 30mm tubular rim, developed with input from UCI Pro racer Gosse van der Meer. Tubulars are the only choice for competition at the highest level, with no possibilities of burping air, and a supremely supple ride.

Hubs

HUNT Sprint Disc straight-pull hubs, with extra bearing shielding for washing the bike. 5-degree/6-pawl RapidEngage freehub, with H_CERAMIK coating for enhanced durability. Easily removable end caps and freehub body for quick and easy maintenance.

Spokes

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.

Freehub Body

Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we’ve developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.

Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan. Double sealed for protection from the worst cross conditions, and from washing afterwards.

Adaptability

Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.

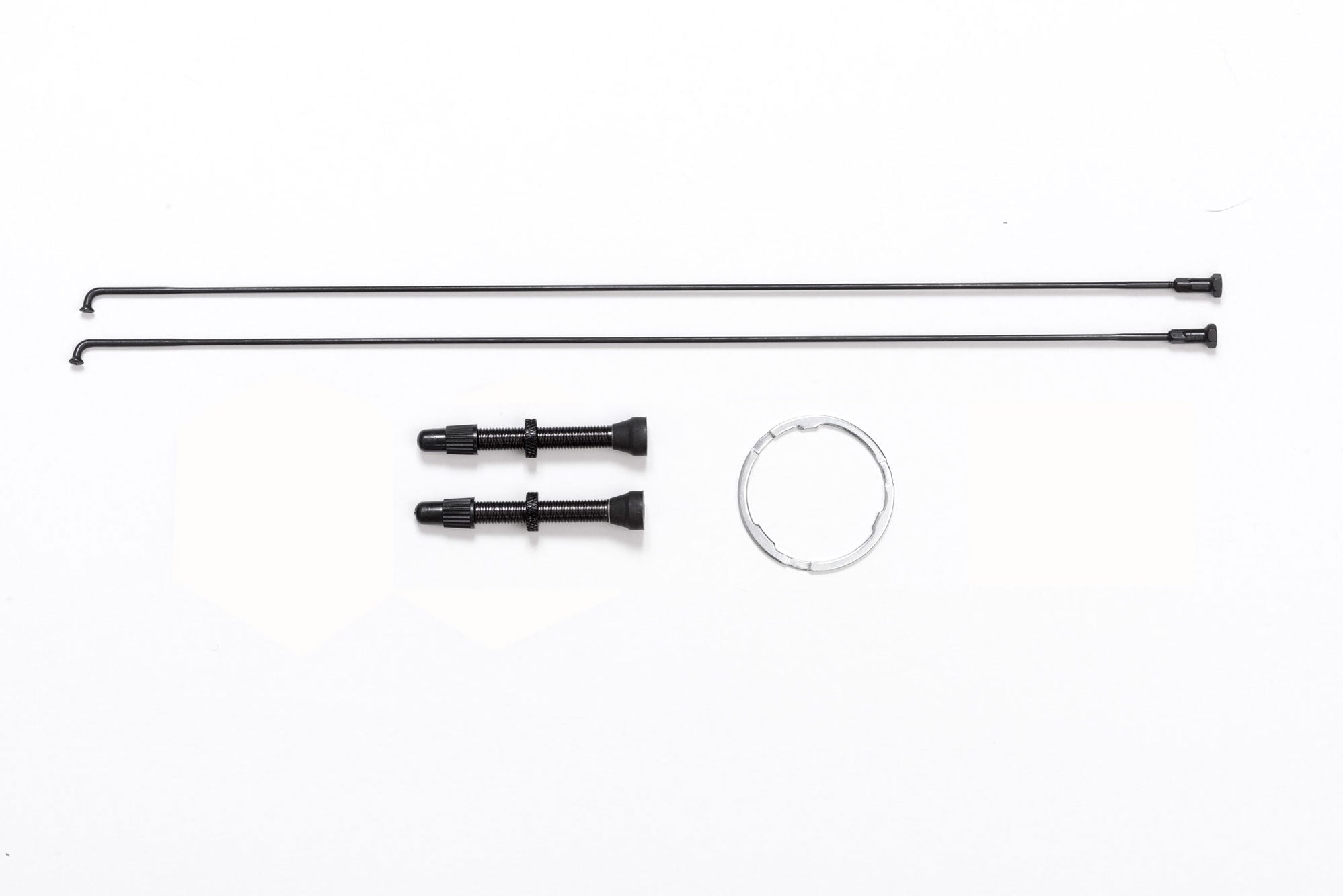

What's in the box _

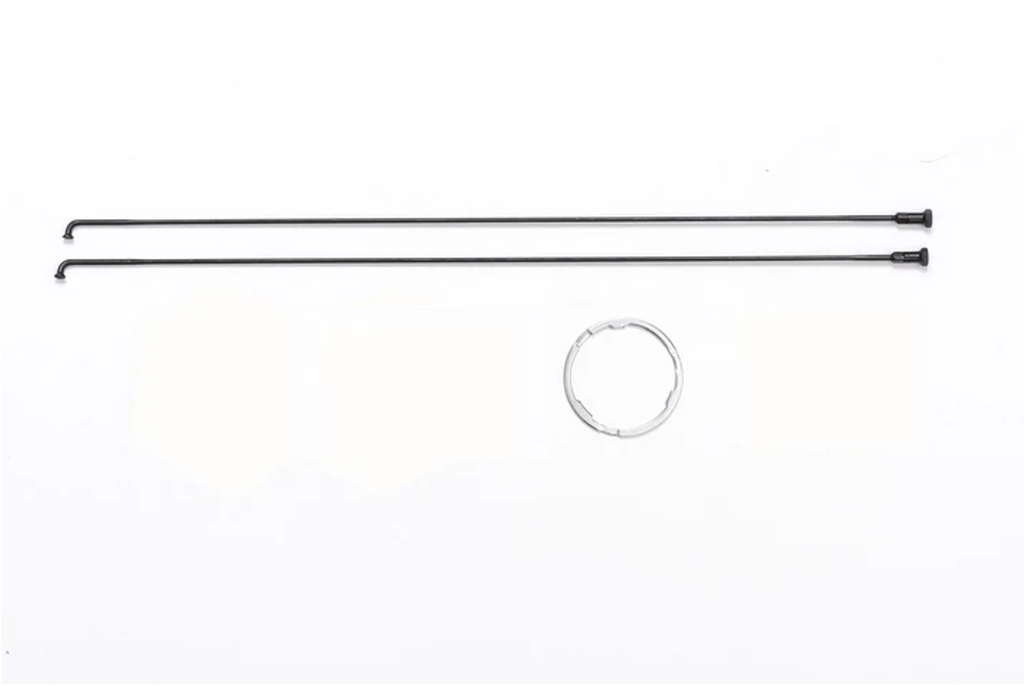

  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

 HUNT Spare spokes

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all HUNT wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 120 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 105 kg then an experienced bike mechanic should check the wheel regularly.

We've got your back

Rider Experience Support

Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

Spares Available

Any spares for our wheelsets can be found on our website. If you assistance, you can find them here.

3-Year Warranty

We are riders ourselves and will do everything we can to get you back on the road and are here to support you. We offer a comprehensive 3-year warranty on all HUNT wheels including free returns if wheels need to be inspected. Goods found to have faults outside of normal wear and tear will be repaired or replaced (subject to stock availability).

60 Day Ride and Return

We are so confident that you'll be happy with you HUNT wheels that we offer a full 60 day to ride them & return for a full refund (or product swap). Click here to learn more.

ABOUT HUNT _

Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
