60 DAY RIDE & RETURN | 25% OFF SELECTED WHEELS | 3-YEAR WARRANTY
HUNT Trail Wide MTB 27.5 Wheelset
HUNT Trail Wide MTB 27.5 Wheelset
HUNT Trail Wide MTB 27.5 Wheelset
<h1>Rims</h1><i>The TrailWide rim includes details that are high on the durability factor to make sure you finish every ride with a big grin. Designed for 2.3"-2.5" tyres, the 30mm internal rim provides support to the tyre when you drop into in a root strewn shoot or you're throttling down a high-speed section and folding a tyre is the last thing you need to happen!</i>
<h1>Weight</h1><i>Mountain bikers aren't concerned about weight, right? Nope! Whether you're doing a back-country epic or pedalling between stages, we have paid attention to weight to suit the type of riding they will be subjected too. For example, using the highest quality Pillar triple butted spokes with PSR (Pillar Spoke Re-enforcement) has allowed us to not only create a stronger wheel with a higher spoke count, but one which does not add a weight penalty.</i>
<h1>Rear Hub</h1><i>We create wheels to match the needs of riders who want the most from their wheels. The Trail Wide hubs have been chosen to increase stiffness, bearing durability and overall strength of your wheelset. On the rear, the RapidEngage MTB hubs with a fast 5 degree engagement, means you will be able to clear those janky tech climbs with ease.</i>
<h1>Front Hub</h1><i>Suited to match the needs of the modern trail bike rider. Featuring durable bearings and 7075-T6 series alloy axles to increase stiffness. These hubs have been selected based on their ability to perform on the most aggressive trails. </i>
<h1>Spokes</h1><i>We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area.</i>
<h1>Rim Profile</h1><i>Like all of our wheels, the Hunt MTB line-up is designed to be used as a tubeless system. Featuring a H-Lock rim bead with 'up-kicks' to the shoulders of the rim bed secures your tyre when seated. This prevents side-to-side movement reducing the chance of burping your tyre. It creates a great rim-well seal for first installation and easy sealing of tubeless tyres. Still haven't made the switch? All our wheels are tube compatible as well.</i>

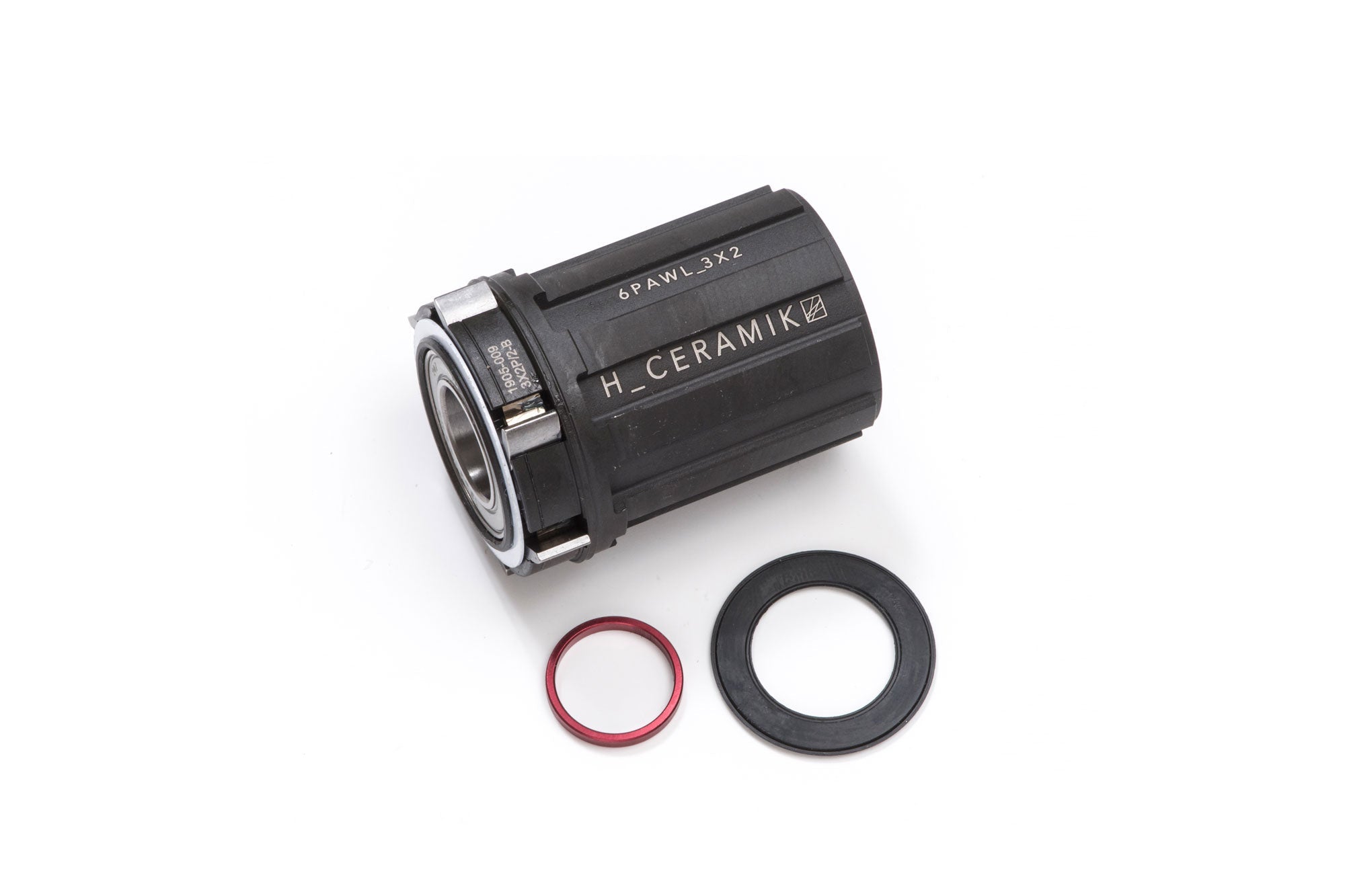

<h1>Freehub Body</h1><i>Choose between SRAM/Shimano HG, Shimano Microspline or XD to be fitted to your Trailwide wheels.</i>
<h1>In the Box</h1><ul><li>Black Shield PET high tensile strength tubeless tape fitted to wheels.</li><li>Freehub fitted</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>
<h1>Made for where you ride</h1><i>From the local trails, to a remote piece of trail highup in a remote mountain range; we wanted to create a series of wheelsets tailored for your Trail riding.</i>
<h1>Made for how you ride</h1><i>Enhanced to perfectly compliment your riding, the TrailWide is for those 'first out, last in' type of riders.</i>
<h1>Dream Build</h1><i>Samuel Johnson's custom build Privateer 141 with Hunt Trail Wides</i>
HUNT Trail Wide MTB 27.5 Wheelset

HUNT Trail Wide MTB 27.5 Wheelset

27.5"?| 30mm?Wide Int. | 1761g

The Trail Wide is your go-to wheelset no matter the conditions. Optimised to still take the A-lines on the descents and not hold you back on the climbs.

27.5" | 30mm Wide Int. | 1761g

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.

Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.

The Purpose

After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
Read More
Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.Read Less

Key Features

We see wheels as a system, not a single component

  • Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) sleeved construction, 30mm wide (internal), work-hardened shot-peened finish.
  • Hubs | 5° RapidEngage, boost (110/148 ), Boost QR (141mm) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for hubs are available. 
  • Spokes | 28h Spoke Count, Triple Butted (2.2-1.8-2.0) PSR reinforced Pillar Spokes.
  • Tires | Optimised for 2.3"-2.5" tires set up Tubeless. Also great with standard tires and tubes.
  • Axles | 7075-T6 axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
  • Included | Tubeless tape, valve & spokes.
  • See the full specs here
  • Weight | 1761g
  • Also available in 29" and Mullet.

The Experts' View

Wide Open LogoPinkbike Logo Singletracks ReviewBike Perfect Logo Offroadcc Logo MBR Logo MBUK Logo

Full Specs

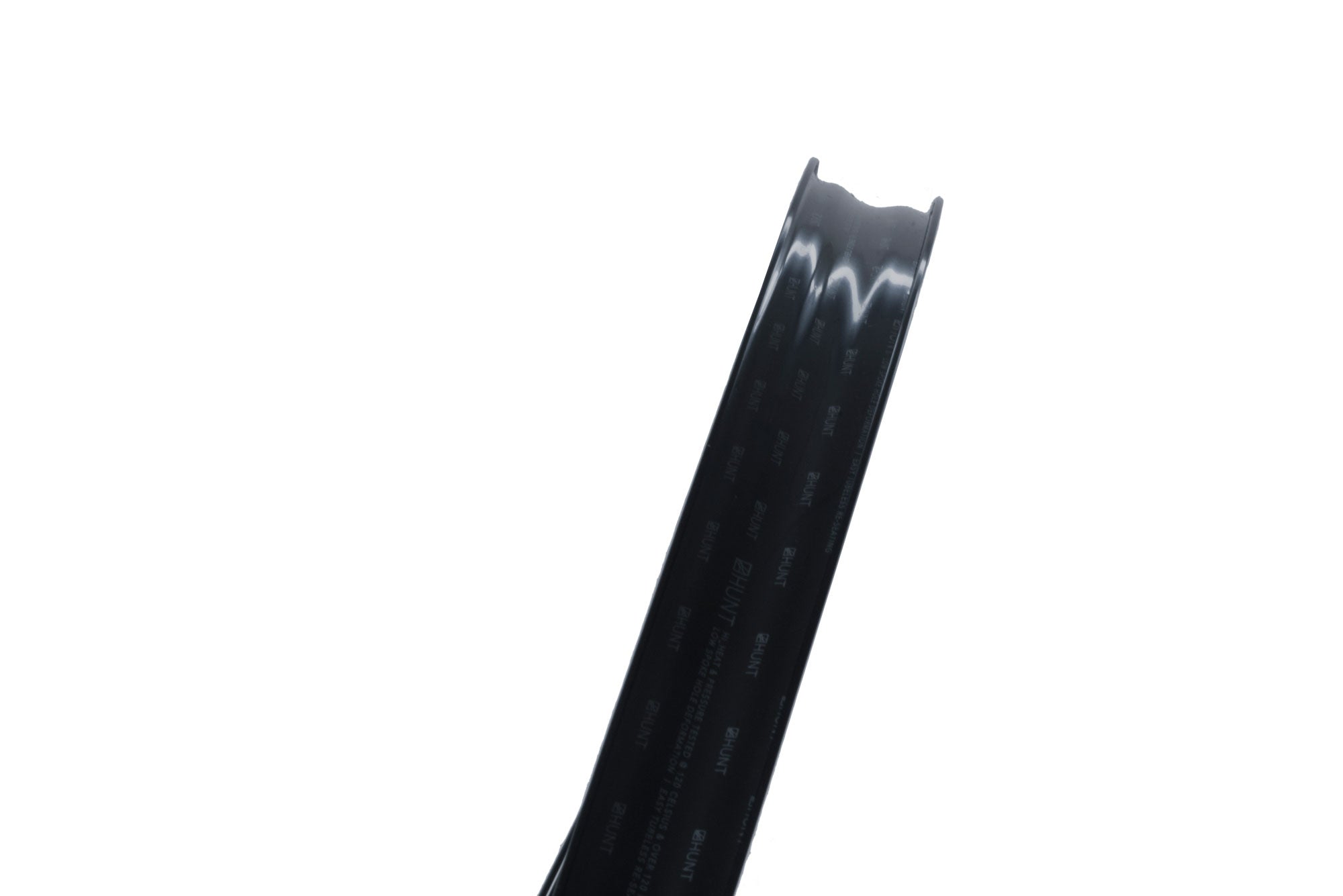

  • Rims

    • 30mm internal width.
    • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
    • Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
    • H-lock bead-seat up-kicks for easy and secure tubeless installation.
    • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
  • Spokes

    • J-bend cold drawn.
    • 28F/28R spoke count, 3 cross.
    • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
    • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Black stainless treatment.
    • Nipples

      • Hard-anodized alloy for weight reduction and strength.
      • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
      • Long 14mm thread for durability.
      • 14 gauge.
      • Black finish
    • Tires Info

        • HUNT recommends a 2.3"-2.5" tire for best performance, tire widths between 1.9" and 2.8" are also safe to use.
        • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
          • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this.
          • Tubeless-ready for lower weight and rolling resistance.
        • Axle Size

          • Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
          • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
          • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

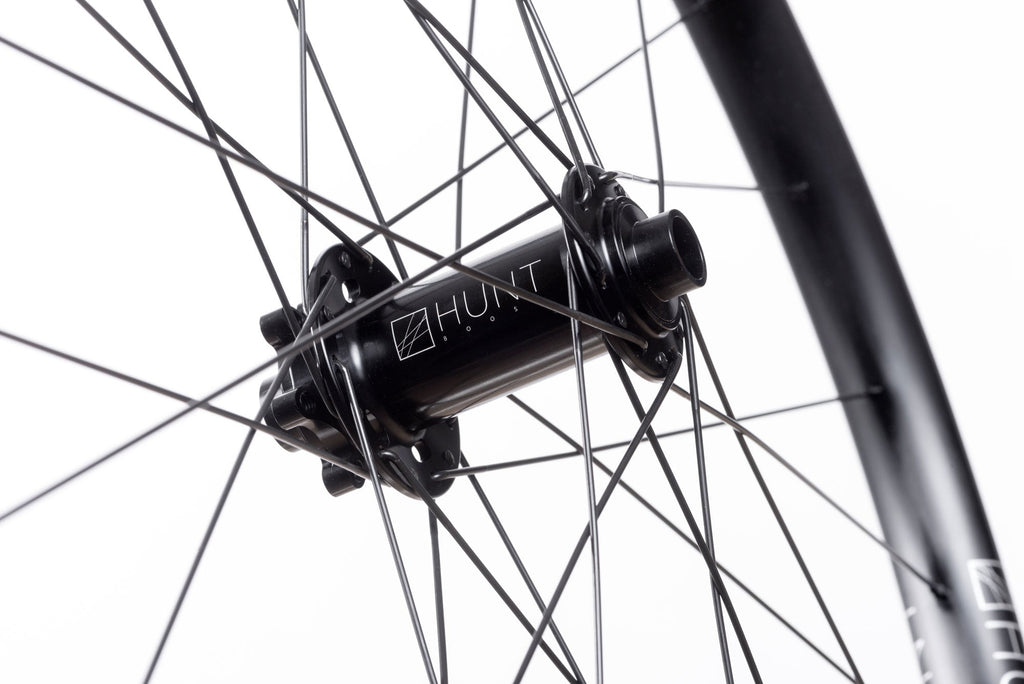

        • Front Hub

          • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
          • 7075-T6 aluminium alloy axles.
          • Oversized 7075-T6 aluminium alloy axles.
          • 110x15mm. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
          • Polished anodized black finish with laser graphics.
          • 6 bolt disc mount
        • Rear Hub

          • Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.
          • 148x12mm or 142x12mm spacing.
          • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
          • Boost QR skewers NOT supplied.
          • 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
          • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
          • Oversized 7075-T6 heat treated aluminium axles.
          • Polished anodized black finish with laser graphics.
          • 6 bolt disc mount
        • Bearings

          • Precision sealed cartridge replaceable units.
          • Large diameter ball bearings for extra durability.
          • Dual full-contact rubber seals.
        • Warranty, Support and Weight Limits

          A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details

          All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

          Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

          60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

          Our Riders also Bought

          Reviews

          Bike Magazine and Website Experts' Views

          Open Wide Logo

          Wide Open Tested

          "You’re going to struggle to find the same balance of performance, weight, reliability and cost elsewhere without having to compromise on one of these. Usually cost."
          Pinkbike Logo

          Pinkbike Review

          "The latest version of Hunt's Trail Wide wheels do exactly what they're supposed to - they're decent wheels at a good price that are gimmick-free."
          Singletracks Logo

          Singletracks Review

          "All of this is to say that the Hunt Trail Wides have been a great wheel set and an easy upgrade for a lot of folks."
          Bike Perfect Logo

          Bike Perfect 4.5/5 Review

          "Same excellent ride quality, big tire support and an increase in rim toughness make Hunt’s Trail Wide V2 an even better-value wheel proposition"
          Offroadcc Logo

          4.5/5 Review

          "The Hunt Trail Wide 29 wheelset is a well-designed, well-made, and well-priced wheelset."

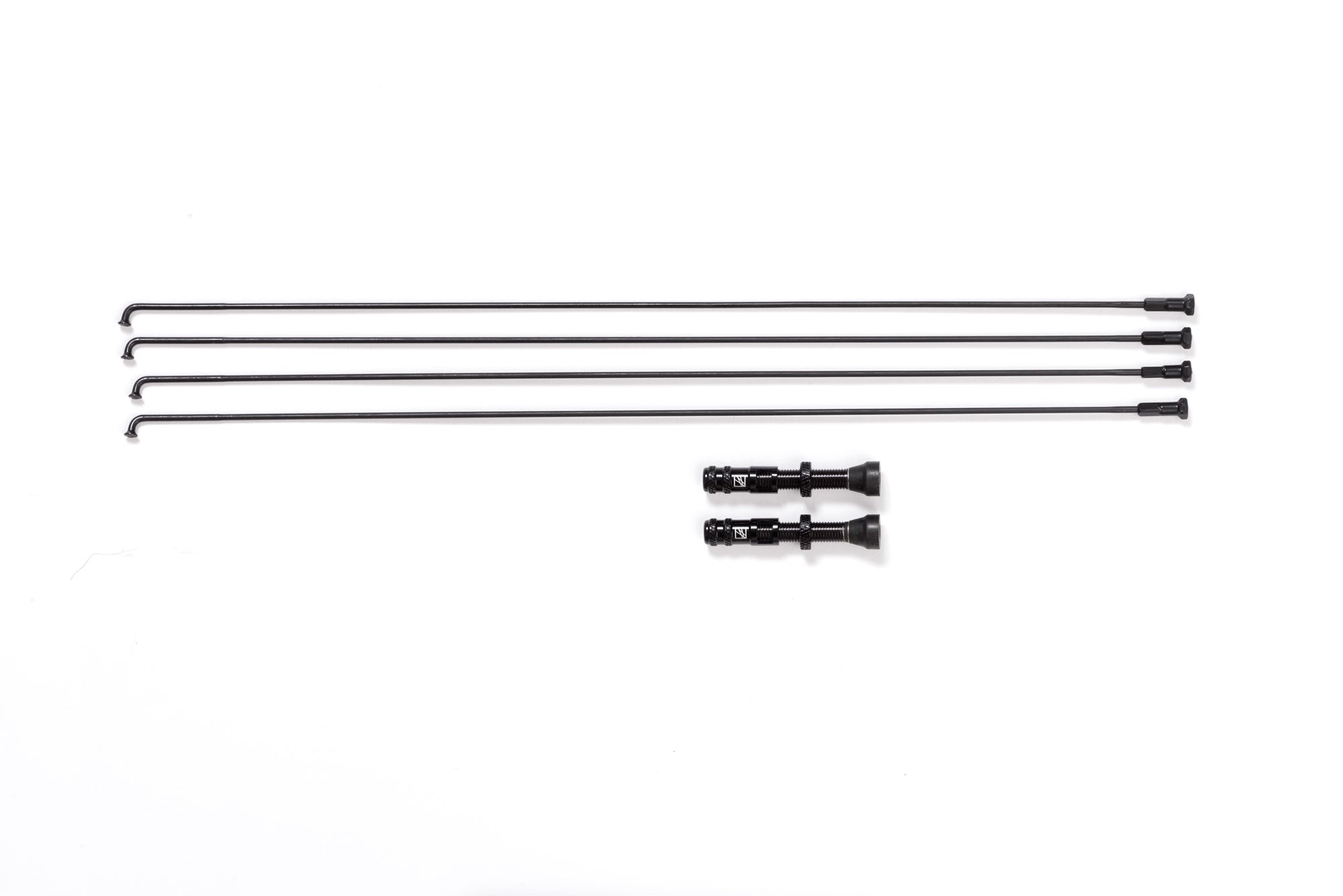

          In the Box

          Contents

          • HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
          • Cassette spacer for 8/9/10 speed
          • Tubeless Valves
          • Spare of each spoke plus nipples
          • Quality control card signed by your wheel builder

          The Trail Wide is your go-to wheelset no matter the conditions. Optimised to still take the A-lines on the descents and not hold you back on the climbs.

          27.5" | 30mm Wide Int. | 1761g

          The Purpose

          After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.

          Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

          Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

          Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.

          The Purpose

          After almost three years of unwavering service on the toughest trails, with numerous awards and recognitions along the way, the restless design team at HUNT saw an opportunity to update the Trail Wide wheelset to meet the evolving demands of today’s riders.
          Read More
          Starting with what we learnt around profile optimisation from the burlier Enduro Wide V2 project, we set out to improve upon its lighter sibling, not an easy task with an Editor’s Choice-winning wheelset.

          Combining the all-new 30mm internal rim profile, with new hubs and spoke configurations, results in a wheel that keeps the outward appearance of it's predecessor yet provide 20% more impact resistance.

          Designed as the answer to your trail centre weekends, back country epics or days spent smashing through your local woods - a wheelset that can do it all and leave you with a big grin.Read Less

          Key Features

          We see wheels as a system, not a single component

          • Rims | 6069 T6 (490 MPa, + 69% Ultimate Tensile Strength over 6061-T6) sleeved construction, 30mm wide (internal), work-hardened shot-peened finish.
          • Hubs | 5° RapidEngage, boost (110/148 ), Boost QR (141mm) or standard (100/142) spacing hubs available, large double sealed cartridge bearings. Rock Shox Torque Caps for Boost hubs and QR adapters for hubs are available. 
          • Spokes | 28h Spoke Count, Triple Butted (2.2-1.8-2.0) PSR reinforced Pillar Spokes.
          • Tires | Optimised for 2.3"-2.5" tires set up Tubeless. Also great with standard tires and tubes.
          • Axles | 7075-T6 axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
          • Included | Tubeless tape, valve & spokes.
          • See the full specs here
          • Weight | 1761g
          • Also available in 29" and Mullet.

          The Experts' View

          Wide Open LogoPinkbike Logo Singletracks ReviewBike Perfect Logo Offroadcc Logo MBR Logo MBUK Logo

          Full Specs

        • Rims

          • 30mm internal width.
          • 6069-T6 heat-treated aluminium alloy (+69% tensile strength vs 6061-T6).
          • Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
          • H-lock bead-seat up-kicks for easy and secure tubeless installation.
          • Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
        • Spokes

          • J-bend cold drawn.
          • 28F/28R spoke count, 3 cross.
          • Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
          • Triple butted 2.0-1.8-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
          • Black stainless treatment.
          • Nipples

            • Hard-anodized alloy for weight reduction and strength.
            • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
            • Long 14mm thread for durability.
            • 14 gauge.
            • Black finish
          • Tires Info

              • HUNT recommends a 2.3"-2.5" tire for best performance, tire widths between 1.9" and 2.8" are also safe to use.
              • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
                • Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this.
                • Tubeless-ready for lower weight and rolling resistance.
              • Axle Size

                • Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
                • Standard - 142x12 (Rear) with 100x15mm (Front). QR adapters available - just complete the simple form after checkout.
                • SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
              • Front Hub

                • Forged and CNC’d 6061-T6 heat treated aluminium alloy Hub body
                • 7075-T6 aluminium alloy axles.
                • Oversized 7075-T6 aluminium alloy axles.
                • 110x15mm. Rock Shox Torque Caps for Boost and QR options available - just add a comment in the notes section on the cart page.
                • Polished anodized black finish with laser graphics.
                • 6 bolt disc mount
              • Rear Hub

                • Extruded and CNC machined 7075-T6 heat-treated aluminium alloy hub body.
                • 148x12mm or 142x12mm spacing.
                • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
                • Boost QR skewers NOT supplied.
                • 3x2 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
                • 9/10/11 speed Shimano/SRAM compatible freehub and SRAM XD Driver version available.
                • Oversized 7075-T6 heat treated aluminium axles.
                • Polished anodized black finish with laser graphics.
                • 6 bolt disc mount
              • Bearings

                • Precision sealed cartridge replaceable units.
                • Large diameter ball bearings for extra durability.
                • Dual full-contact rubber seals.
              • Warranty, Support and Weight Limits

                A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details

                All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 40psi as this will reduce the fatigue on the wheelset.

                Crash replacement 35% off plus All HUNT wheels models have been designed to meet the needs of the type of riding they are intended for. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

                60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

                Our Riders also Bought

                Reviews

                Bike Magazine and Website Experts' Views

                Open Wide Logo

                Wide Open Tested

                "You’re going to struggle to find the same balance of performance, weight, reliability and cost elsewhere without having to compromise on one of these. Usually cost."
                Pinkbike Logo

                Pinkbike Review

                "The latest version of Hunt's Trail Wide wheels do exactly what they're supposed to - they're decent wheels at a good price that are gimmick-free."
                Singletracks Logo

                Singletracks Review

                "All of this is to say that the Hunt Trail Wides have been a great wheel set and an easy upgrade for a lot of folks."
                Bike Perfect Logo

                Bike Perfect 4.5/5 Review

                "Same excellent ride quality, big tire support and an increase in rim toughness make Hunt’s Trail Wide V2 an even better-value wheel proposition"
                Offroadcc Logo

                4.5/5 Review

                "The Hunt Trail Wide 29 wheelset is a well-designed, well-made, and well-priced wheelset."

                In the Box

                Contents

                • HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
                • Cassette spacer for 8/9/10 speed
                • Tubeless Valves
                • Spare of each spoke plus nipples
                • Quality control card signed by your wheel builder

                HUNT Trail Wide MTB 27.5 Wheelset

                27.5"?| 30mm?Wide Int. | 1761g

                SALE
                Regular price £479.00 now £359.25
                25% off
                Deposit Option, refundable. (In dropdown)
                Pre-Order Now. Shipping:
                27.5" / Boost - Apr Wk 3
                27.5" / Non-Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

                International Orders ETA 3-7 days*
                Our wheels are in high demand, don't miss out. Order now.

                *If shown in stock

                HUNT Trail Wide MTB 27.5 Wheelset £359.25
