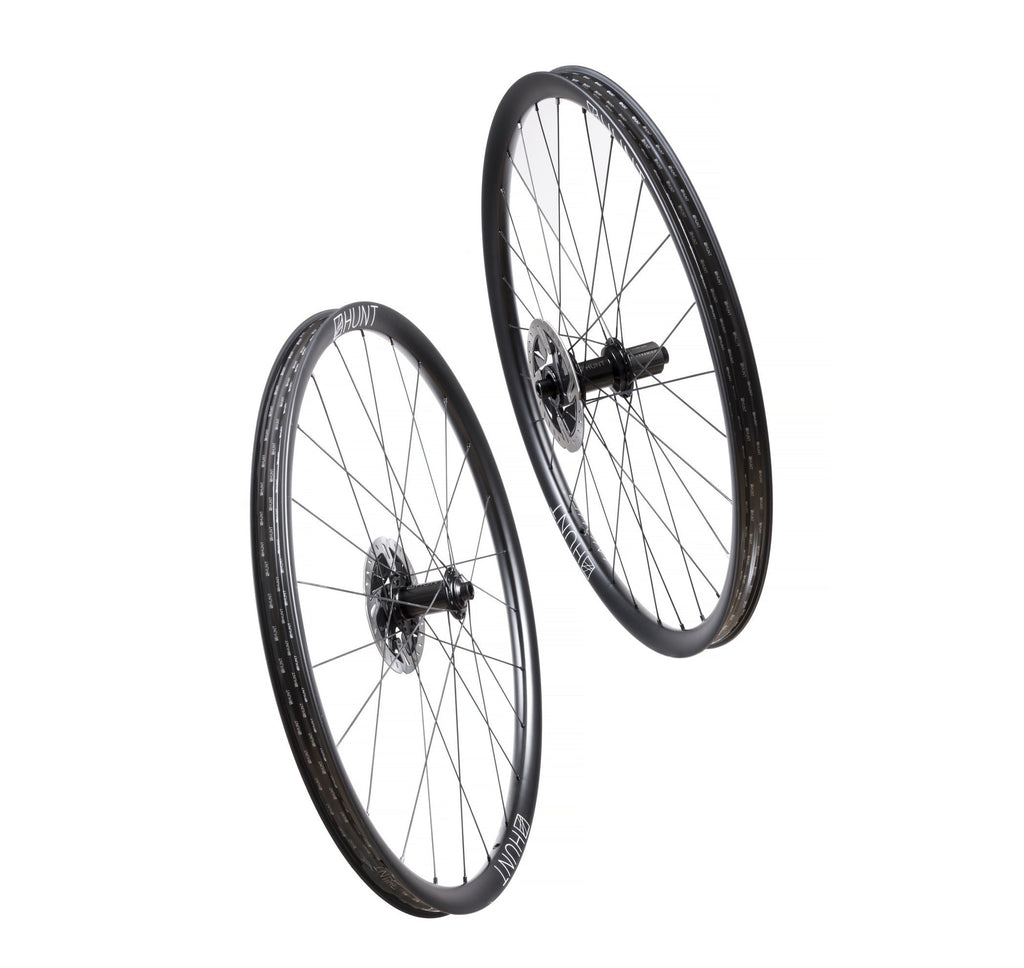

HUNT 650B Adventure Carbon Disc Wheelset

1461g Depth Width ext Width int size
26 mm 33 mm 26 mm 650b

The ultimate 650b weapons. Look no further for ridiculously wide, light, tough 27.5"/650b gravel road/trail wheels.

Tyre size: Optimized for 40mm tyres; work well with 35mm up to 65mm.

Cyclocross Magazine Review

"The build quality appears to be flawless. The wheels are round and true out of the box with even spoke tension and perfect dishing."

£703.20 £879.00
20% off
Limited Stock. Available Now.Items are selected to ship from us in the week stated. Delivery time is 3-7 days*

We will ask for axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Purpose _

<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.</i>

The Purpose _

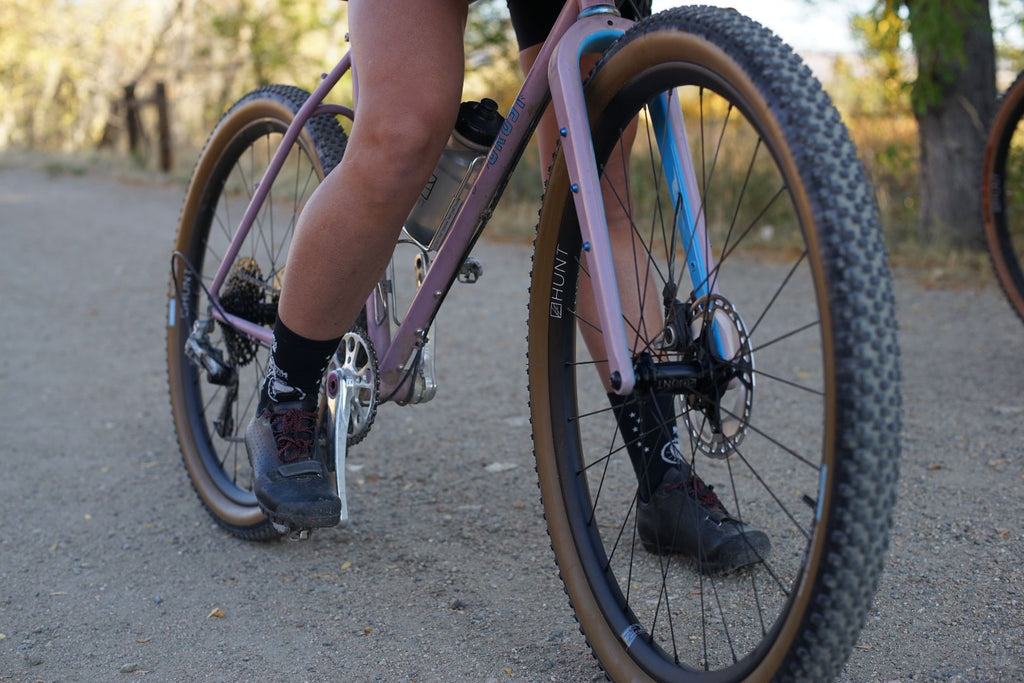

You asked, and we delivered! The HUNT 650B Adventure Carbon Wheelset is designed to serve as the ultimate weapon for 650b gravel shredding. They ideally compliment the fast, fun and highly versatile adventure-focused bikes which have a 'go anywhere' attitude. Perfect for those fun trail thrashes and bike-packing adventures, whilst not compromising anything for fast-far road days

Full Specs _

Rims
Hookless, tubeless-ready profile.(Click here to find out more about hookless rim technology. H_Lock Wedge rim shoulders, for easy and secure tubeless installation Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes 33mm outer and 26mm inner width 26mm depth Matt black base finished with matt white contrasting graphics.
  • Hookless, tubeless-ready profile.(Click here to find out more about hookless rim technology.
  • H_Lock Wedge rim shoulders, for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 33mm outer and 26mm inner width
  • 26mm depth
  • Matt black base finished with matt white contrasting graphics.
Spokes
24 front and 28 rear laced 2 cross. Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2. J-Bend for ease of replacement. Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area. Black stainless treatment
  • 24 front and 28 rear laced 2 cross.
  • Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
  • J-Bend for ease of replacement.
  • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • Black stainless treatment
Nipples
Brass for anti-corrosion resistance. Square body for external adjustment and hex head for easy internal adjustment/tensioning. 12mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black finish.
  • Brass for anti-corrosion resistance.
  • Square body for external adjustment and hex head for easy internal adjustment/tensioning.
  • 12mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black finish.

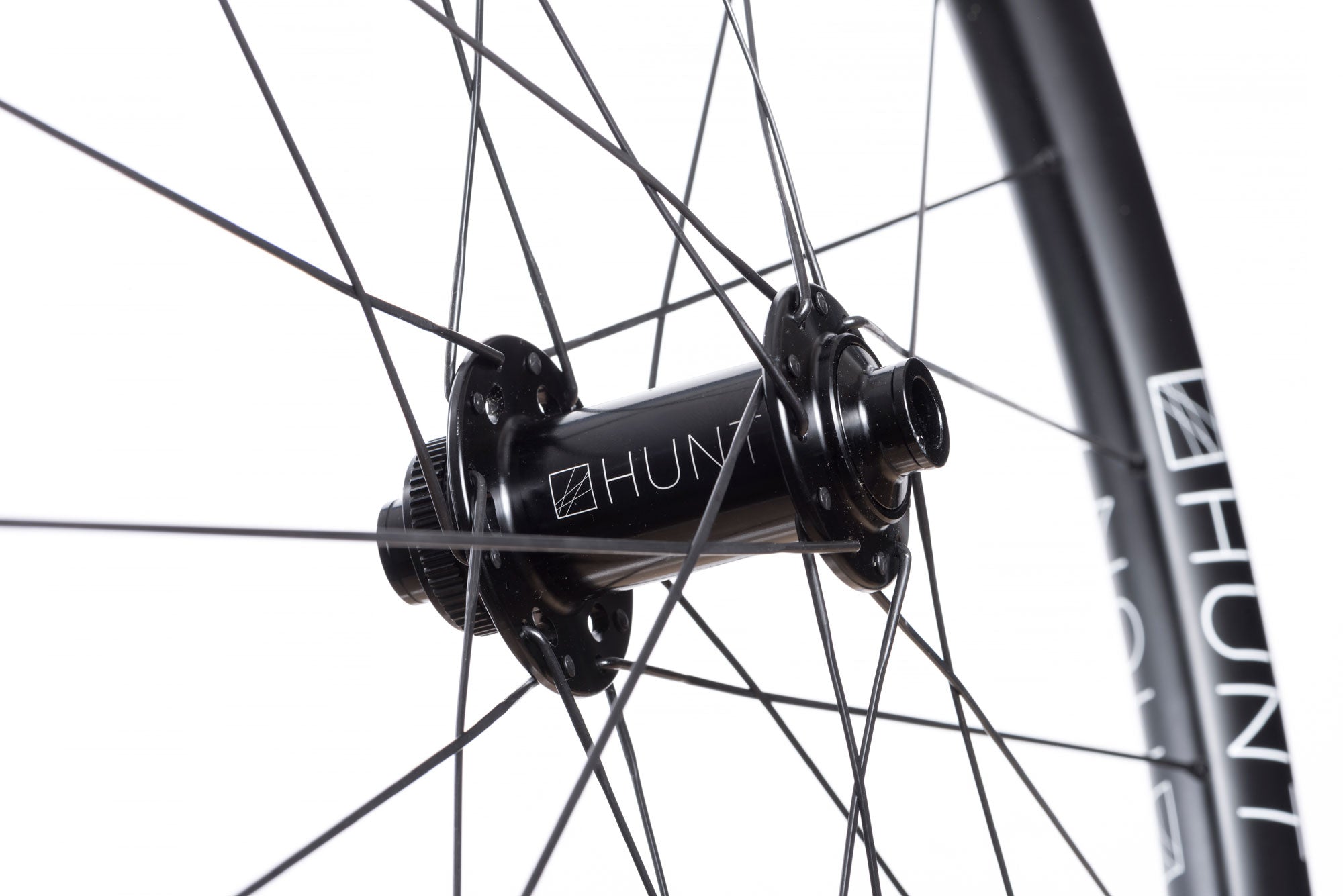

Front Hub
HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
  • HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.
Rear Hub
7075-T6 heat-treated aluminium alloy freehub body. H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees All freehub standards accounted for. HUNT 4 Season Disc J-bend super-light alloy. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
  • 7075-T6 heat-treated aluminium alloy freehub body.
  • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • 6 pawl, 36 tooth RapidEngage freehub, with an engagement angle of just 5 degrees
  • All freehub standards accounted for.
  • HUNT 4 Season Disc J-bend super-light alloy.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Tyres Info
HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  Only use tyres marked as compatible with hookless (TSS) rims.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 40mm tyre for best performance, tyre widths between 35mm and 64mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tyres marked as compatible with hookless (TSS) rims.

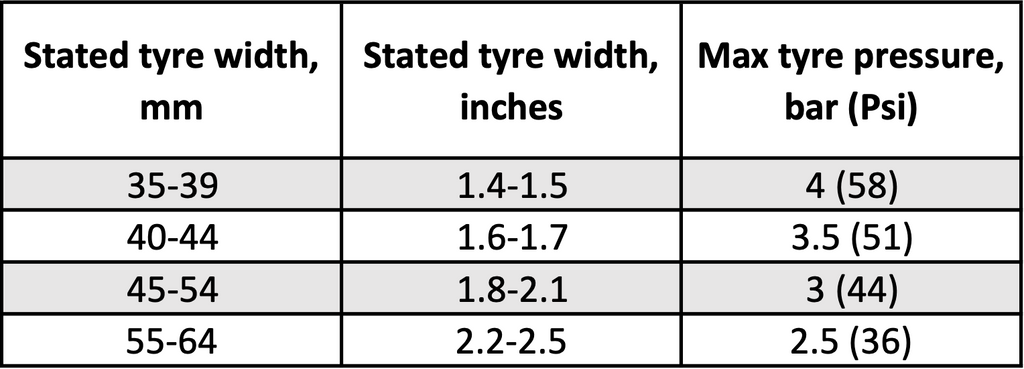

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

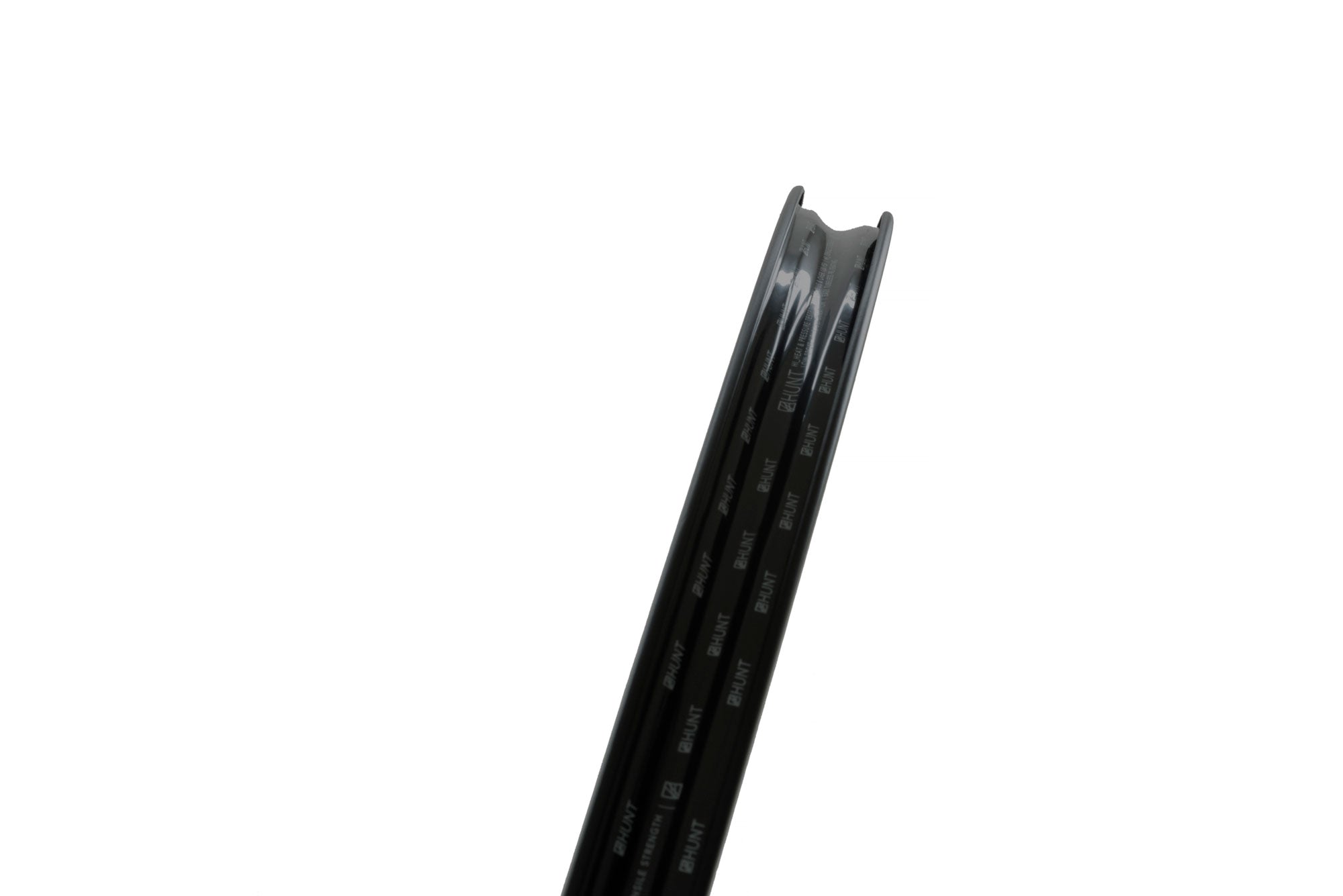

Rims

A strong and lightweight hookless rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. An asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning tighter spokes for longer. Disc specific rims allow higher strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 33mm (26mm internal) creates a great profile for wider tyres, giving more grip and lower rolling resistance. V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by EZO Japan.

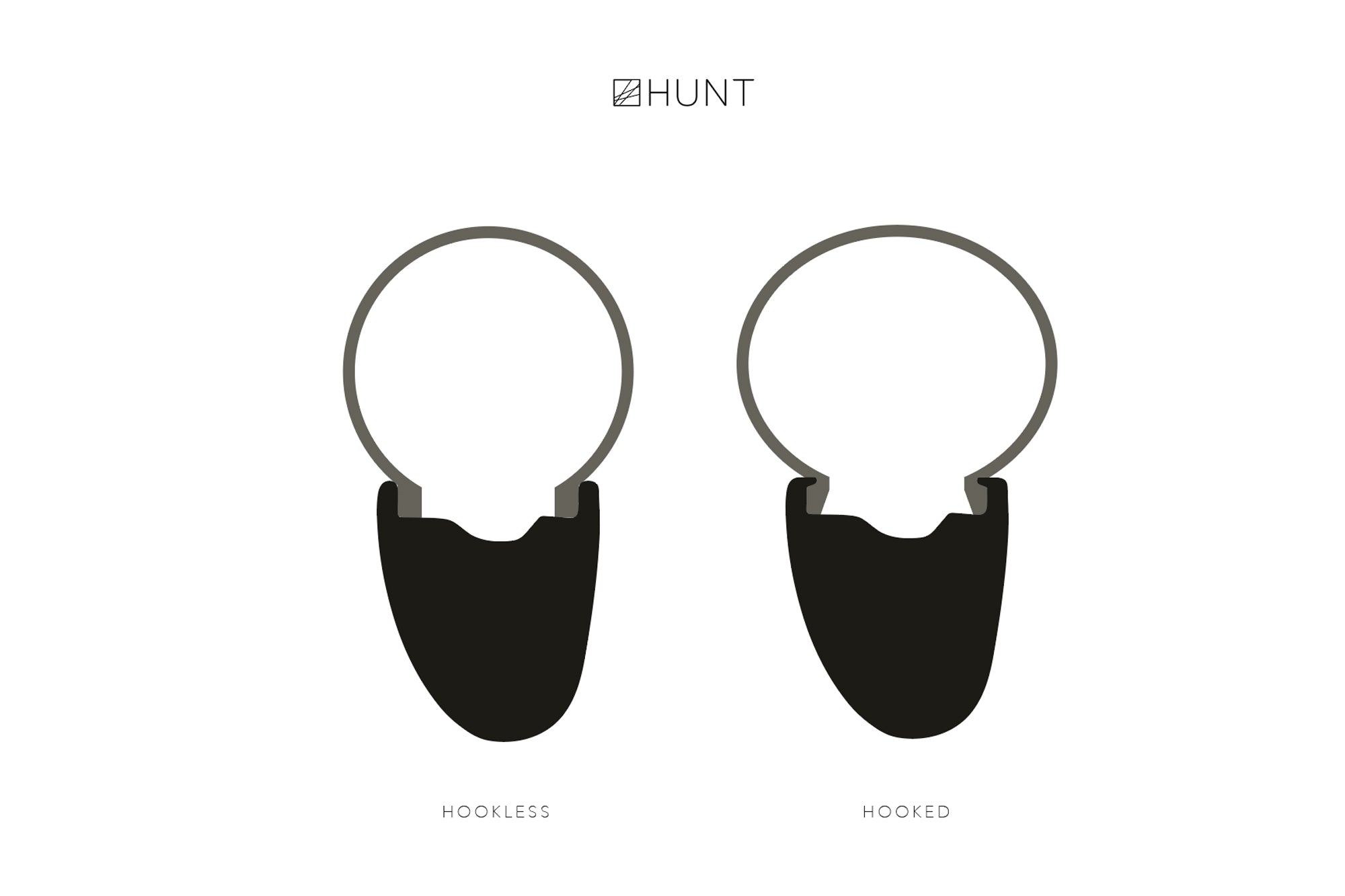

HOOKLESS RIMS

The key benefits of hookless can be distilled down to the following:

  • Stronger rim construction
  • Lighter weight rims
  • Slightly more aerodynamic profile of the global system (rim and tyre combined)
  • Lower manufacturing costs (which benefit the rider if they are passed on) and less waste generated during production
Nipples

To accompany these high-end spokes we selected brass nipples for our Hunt 4Season wheels. Brass is strong and corrosion resistant plus it has self-lubricating properties to prevent issues that can arise from grit salt on the winter roads corroding the fine threads in alloy nipples. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.

Rim Bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

Weight

The consequence of the fanatic attention to detail is a low 1461g wheelset weight, and dependable reliability for many adventures to come. Acceleration and climbing are massively improved over many of the stock wheels supplied on road/gravel/CX disc brake bikes.

Freehub Body

Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.

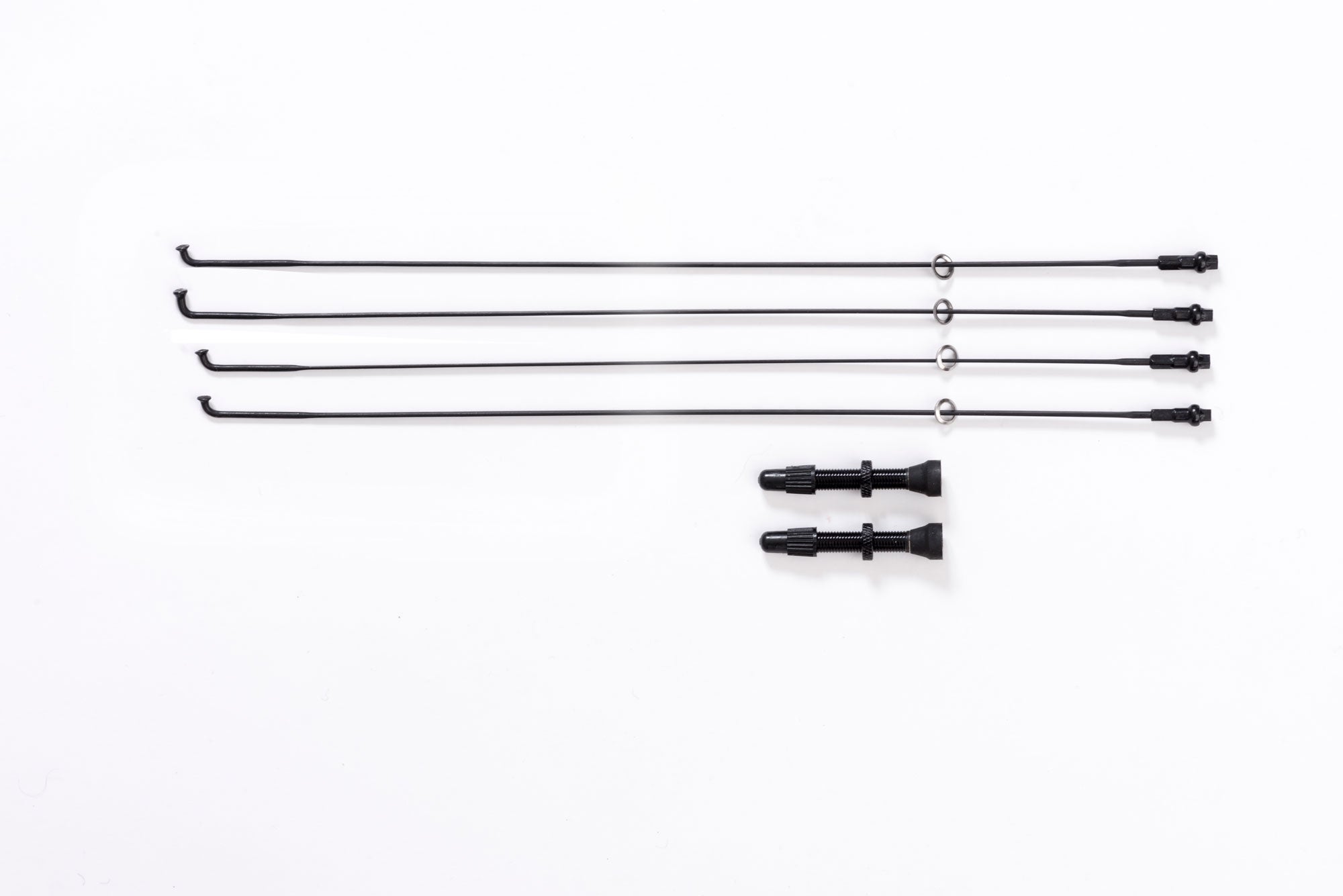

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Spare spokes with nipples & washers.</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 110 kg then an experienced bike mechanic should check the wheel regularly.
