HUNT 30 Carbon Disc Wheelset

1408g Depth Width ext Width int size
30 mm 30 mm 22 mm 700c

An ultra-versatile, disc brake-specific upgrade wheel that shines when the terrain tilts up, but is highly capable on any terrain, from smooth tarmac to moderate gravel.

Velo: First Look

"Durability doesn't come at the cost of performance."

£799

Deposit Option, refundable. (In dropdown)

Secure your order with a deposit and enjoy the convenience of deferred payment. Choose Deposit option in the dropdown above.

Pre-Order Now. Shipping: Dec Wk 2Items are selected to ship from us in the week stated. Delivery time is 3-7 days*

We will ask for axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

The Purpose _

The Purpose _

The 30 Carbon Disc is a do-it-all carbon disc-brake wheelset. The 30mm wide and 30mm deep U-profile serves up great handling and reduces aerodynamic drag across multiple wind yaw-angles, while keeping the rotating weight down for quick response when you put down the power. The extra-wide 22mm internal rim bed opens out your tire profile to provide exceptional vibration reduction, cornering traction and low rolling-resistance.

 The HUNT team have paired the light and wide hooked rim with new H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the increased torque of 1x drivetrains. Hand-built with top-of-the-range Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings, the 30 Carbon Disc wheelset is built to transform your road, CX, or gravel rides.

Full Specs _

Rims
Hooked tubeless-ready rim profile. Full carbon fiber construction with re-enforced spoke holes. 30mm external and 22m internal width. 30mm depth UD finish with matte white contrasting graphics.
  • Hooked tubeless-ready rim profile.
  • Full carbon fiber construction with re-enforced spoke holes.
  • 30mm external and 22m internal width.
  • 30mm depth
  • UD finish with matte white contrasting graphics.
Spokes
24 front and 24 rear laced 2 cross. J-bend cold drawn. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless treatment.
  • 24 front and 24 rear laced 2 cross.
  • J-bend cold drawn.
  • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
  • Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless treatment.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.
Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Rear Hub
HUNT H_Ratchet 36T SGL. H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Single 36T Ratchet Ring equals 10° engagement. Forged and CNC'd 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. All freehub standards accounted for. Please note: if you require a 6 bolt adaptor you can purchase separately here.
  • HUNT H_Ratchet 36T SGL.
  • H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
  • Single 36T Ratchet Ring equals 10° engagement.
  • Forged and CNC'd 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • All freehub standards accounted for.
  • Please note: if you require a 6 bolt adaptor you can purchase separately here.
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Tyres Info
For the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • For the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't g Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

Rims

The HUNT 30 Carbon Disc was put through extensive before coming to market, including a rolling road test, pressure burst test, and real-world rider testing using our network of test athletes. To pass our rolling road test, each wheel must withstand 307 kilometers at 25km/h on the "rolling road," which consists of a rotating drum with four fixed steel bumps, measuring 10mm in height. The wheel is loaded with a 65-kilogram weight to simulate a 130kg rider's weight split across both wheels. The completed session generates 1,540,164 strikes on the rim and tyre, twice as many as required to pass standard ISO certification.

Rim Bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

Bearings

Precision stainless steel cartridge bearings with proprietary waterproof grease specially selected for the worst weather.

Freehub Body

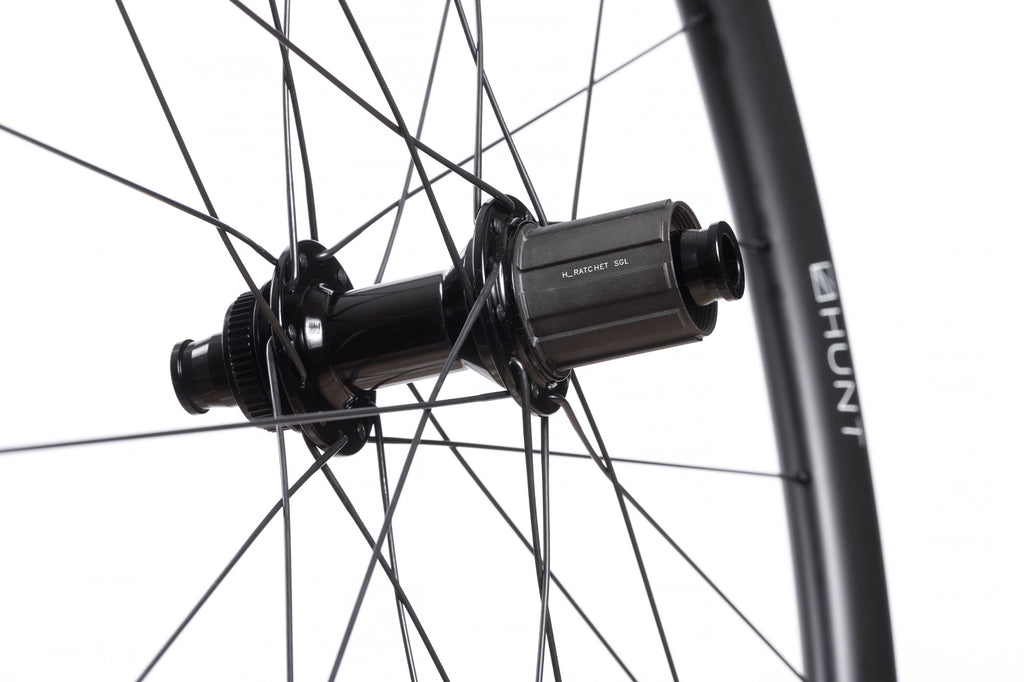

HUNT H_Ratchet 36T SGL hub system with J-bend spoke interface and extra bearing shielding. 10-degree engagement angle with 36 tooth ratchet internals. H_CERAMIK freehub body coating for enhanced durability and protection against cassette gouging.

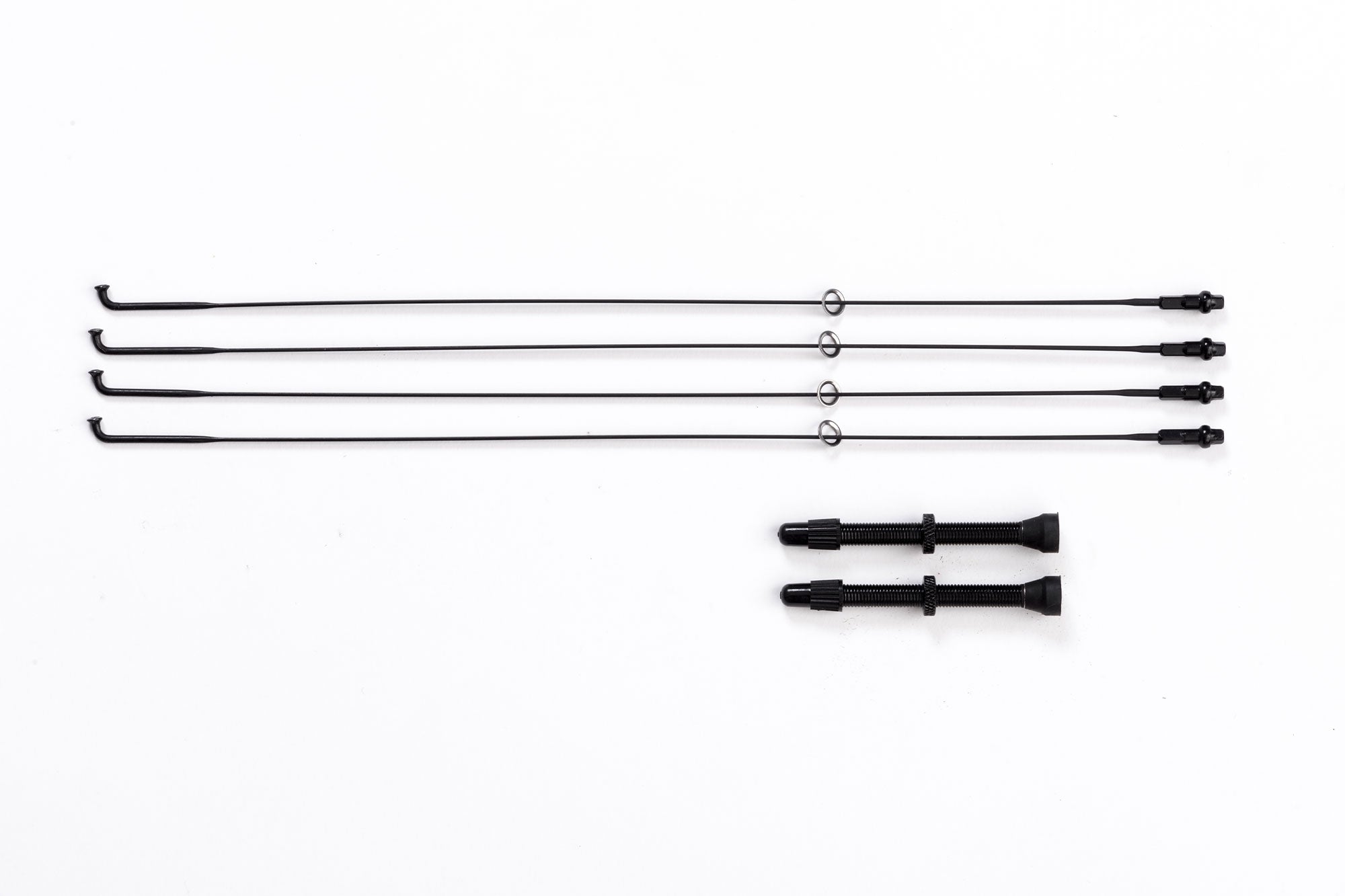

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed.
  • 45mm Tubeless Valves.
  • Spare of each spoke plus nipples.
  • Rotor lock rings.
  • Quality control card signed by your wheel builder.

<h1>In the box</h1><i><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Rotor lock rings</li><li> Quality control card signed by your wheel builder</li></i>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 120 kg then an experienced bike mechanic should check the wheel regularly.
