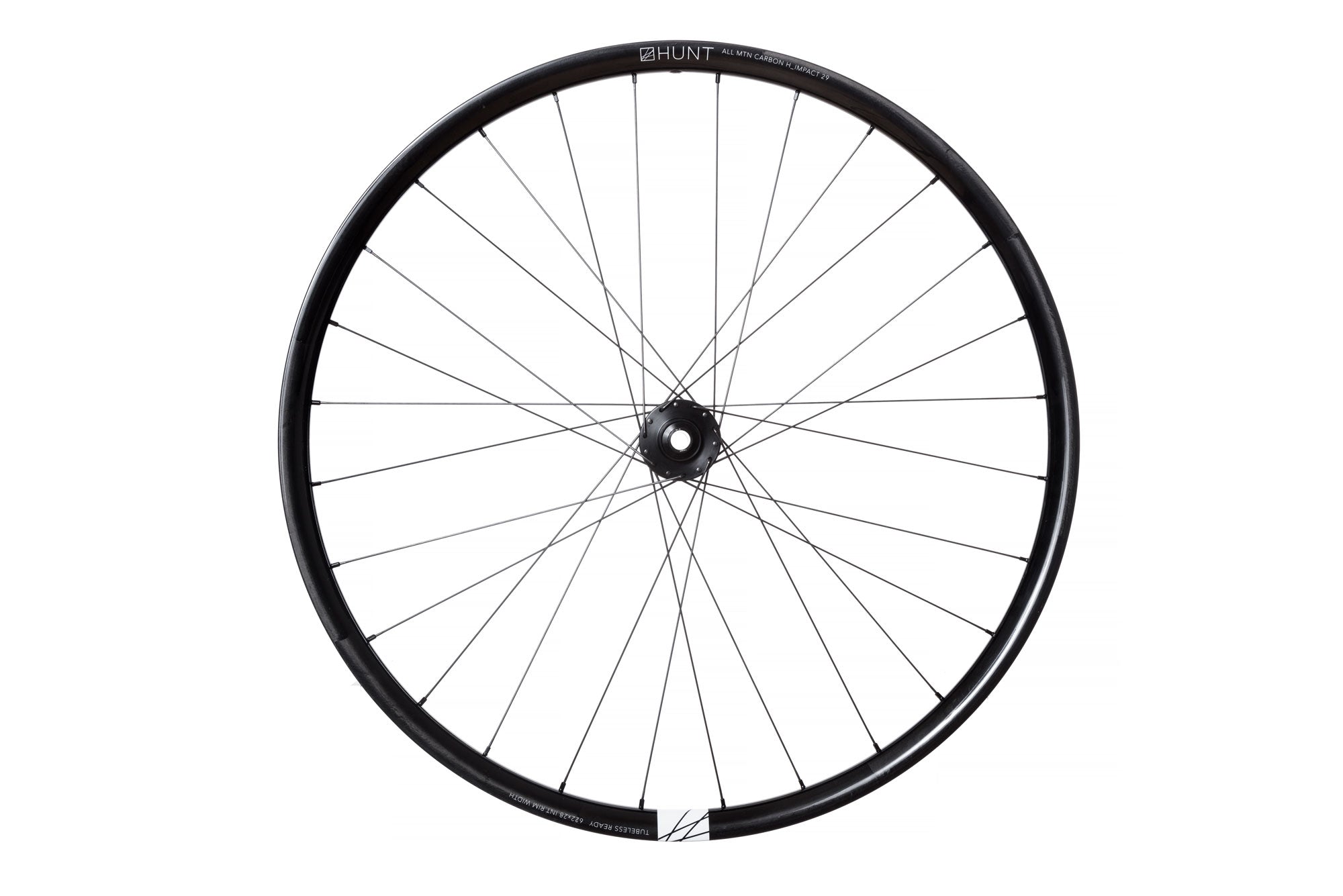

HUNT All-Mountain Carbon H_Impact Wheelset
27.5/29" | 28 Wide Int. | 1810/1878g
All-MTN Carbon: Front and rear specific wheels optimized for compliancy up front and high impact strength out back.
Responsive, compliant and incredibly strong.
27.5/29" | 28 Wide Int | 1810/1878g
- LIFETIME CRASH REPLACEMENT* -
The Purpose
Designed for everything from big alpine days in the mountains where descents are timed in hours to your local push up trails; The All-Mountain Carbon H_IMPACT combines our 3° RapidEngage hubs and triple butted Pillar PSR spokes, with front/rear optimised rims to build an incredibly strong yet compliant wheelset.
Working with Downhill riders Becci Skelton and Tom Makin, of Steve Peat Syndicate Racing, the H_IMPACTs were well and truly put through the ringer. Although not designed for the demands of Downhill we wanted to ensure they were more than tough enough to handle anything an alpine descent can throw at you.
The V1 rims survived months of North Wales finest rocky tracks, until Tom finally cracked them. Although he’s no lightweight, it highlighted that we needed to try harder. So, Pete and Luisa worked further to test three other ideas in the lay-up schedule and materials choices. The V2 prototypes which resulted were 36% stronger in our laboratory impact tests for the same weight and dimensions whilst also using compliant low-temperature V:Absorbe resin. Tom is still trying unsuccessfully to break them.
The Purpose
Designed for everything from big alpine days in the mountains where descents are timed in hours to your local push up trails; The All-Mountain Carbon H_IMPACT combines our 3° RapidEngage hubs and triple butted Pillar PSR spokes, with front/rear optimised rims to build an incredibly strong yet compliant wheelset. Read More
Working with Downhill riders Becci Skelton and Tom Makin, of Steve Peat Syndicate Racing, the H_IMPACTs were well and truly put through the ringer. Although not designed for the demands of Downhill we wanted to ensure they were more than tough enough to handle anything an alpine descent can throw at you.
The V1 rims survived months of North Wales finest rocky tracks, until Tom finally cracked them. Although he’s no lightweight, it highlighted that we needed to try harder. So, Pete and Luisa worked further to test three other ideas in the lay-up schedule and materials choices. The V2 prototypes which resulted were 36% stronger in our laboratory impact tests for the same weight and dimensions whilst also using compliant low-temperature V:Absorbe resin. Tom is still trying unsuccessfully to break them.
Read Less
The Experts' View
Want to add tubeless tires?
We can supply or fit tubeless tires (including sealant) to your wheels.
The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.
Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
Specs Overview
We see wheels as a system, not an single component
- Rims | H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes, 28mm wide (internal), Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration.
- Hubs | 3° RapidEngage, boost (110/148) spacing hubs, large double sealed cartridge bearings. Rock Shox Torque Caps available. (We will fit them, just let us know in the simple form shown after checkout or add a comment in the notes section of the cart page).
- Spokes | 28F/32R Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes. Available in Black or Oil-Slick Ti-Nitride finish.
- Tires | Optimised for 2.3"-2.5" tires set up Tubeless, but also work very well with 2.25"-2.6". Also great with standard tires and tubes.
- Axles | Oversized 7075-T6 heat-treated aluminum alloy axles.
- See the full specs here
- Weight | 1810/1878g 27.5"/29"
More Tech

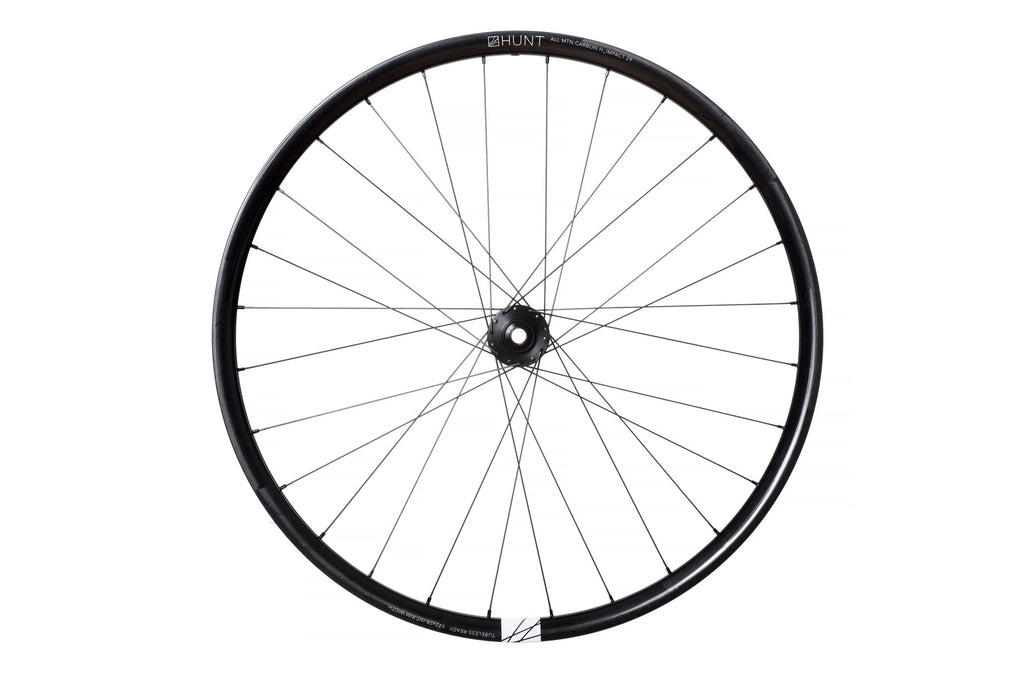

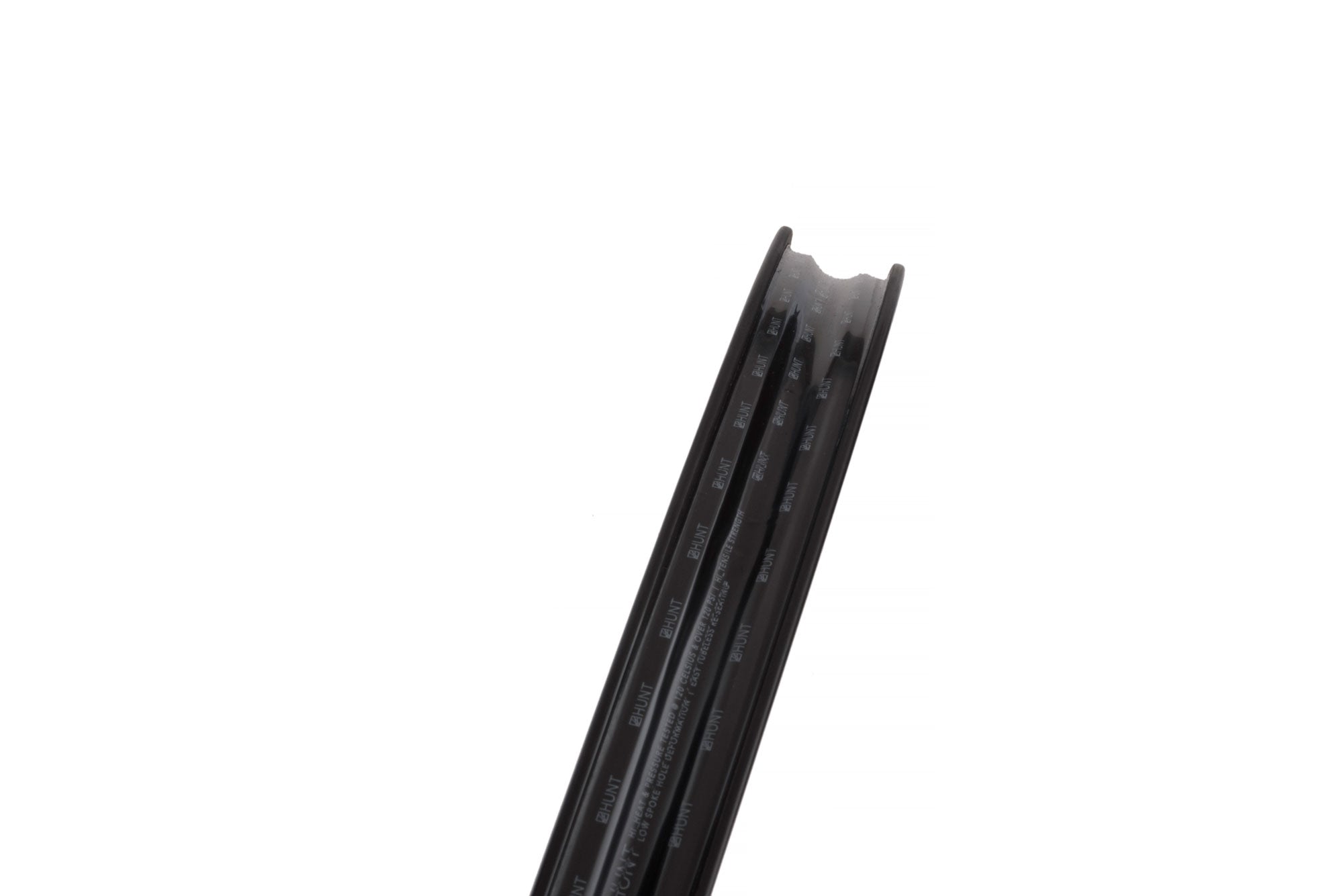

Rims
- 28mm internal width ideal for 2.3"-2.5" tire widths, but also work very well with 2.25"-2.6".
- H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
- Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
- Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
- Hookless H-lock bead-seat up-kicks for easy and secure tubeless installation.

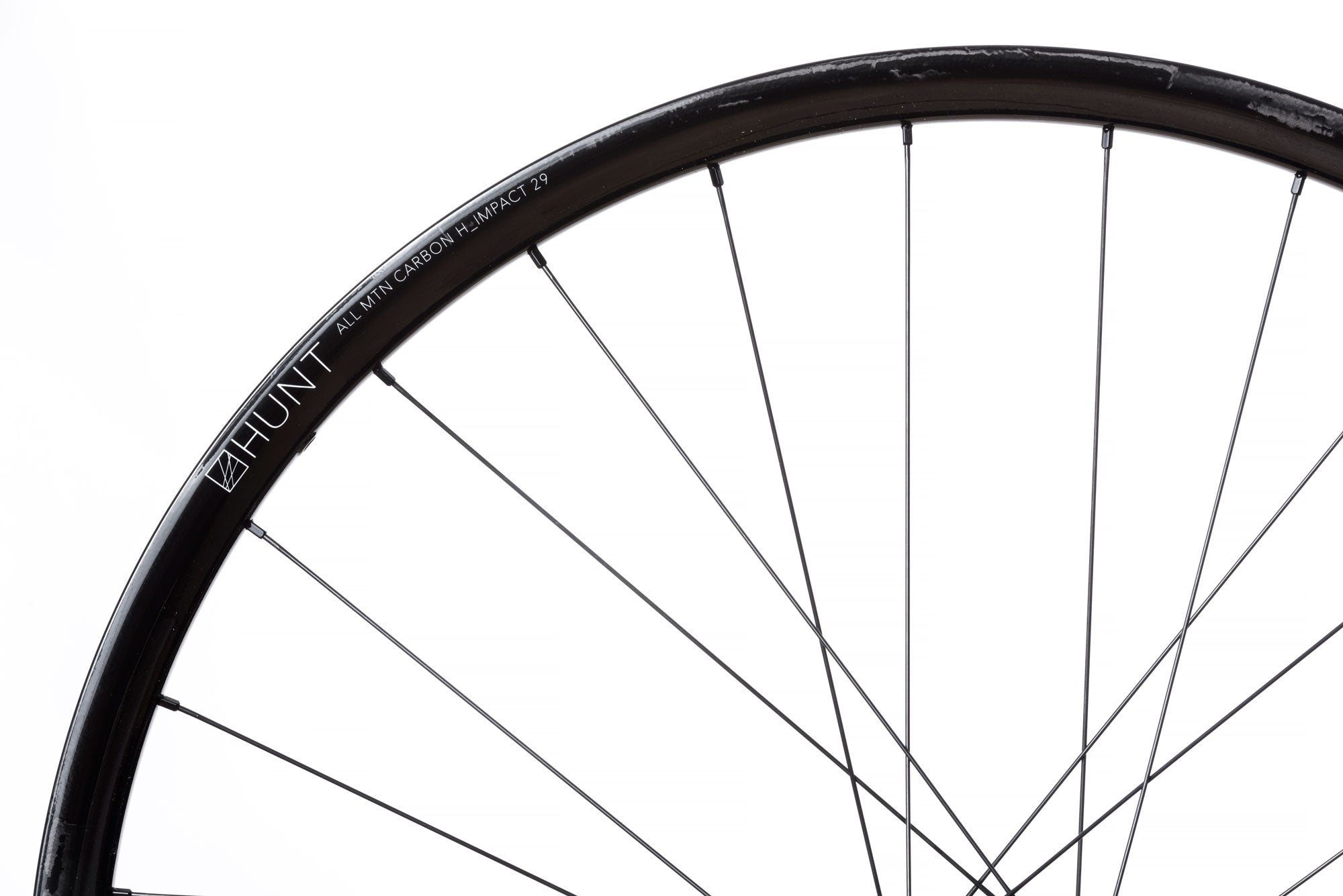

Spokes
- J-bend cold drawn.
- 28F/32R spoke count.
- Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Black stainless or Oil-Slick Ti-Nitride treatment.
Nipples
- Hard-anodized alloy for weight reduction and strength.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
- Long 14mm thread for durability.
- 14 gauge.
- Black finish
Tires Info
- Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
- Designed to work perfectly with tubeless and non-tubeless tires.
- Suitable tubeless MTB tire combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
Axle Size
- Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
- SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.

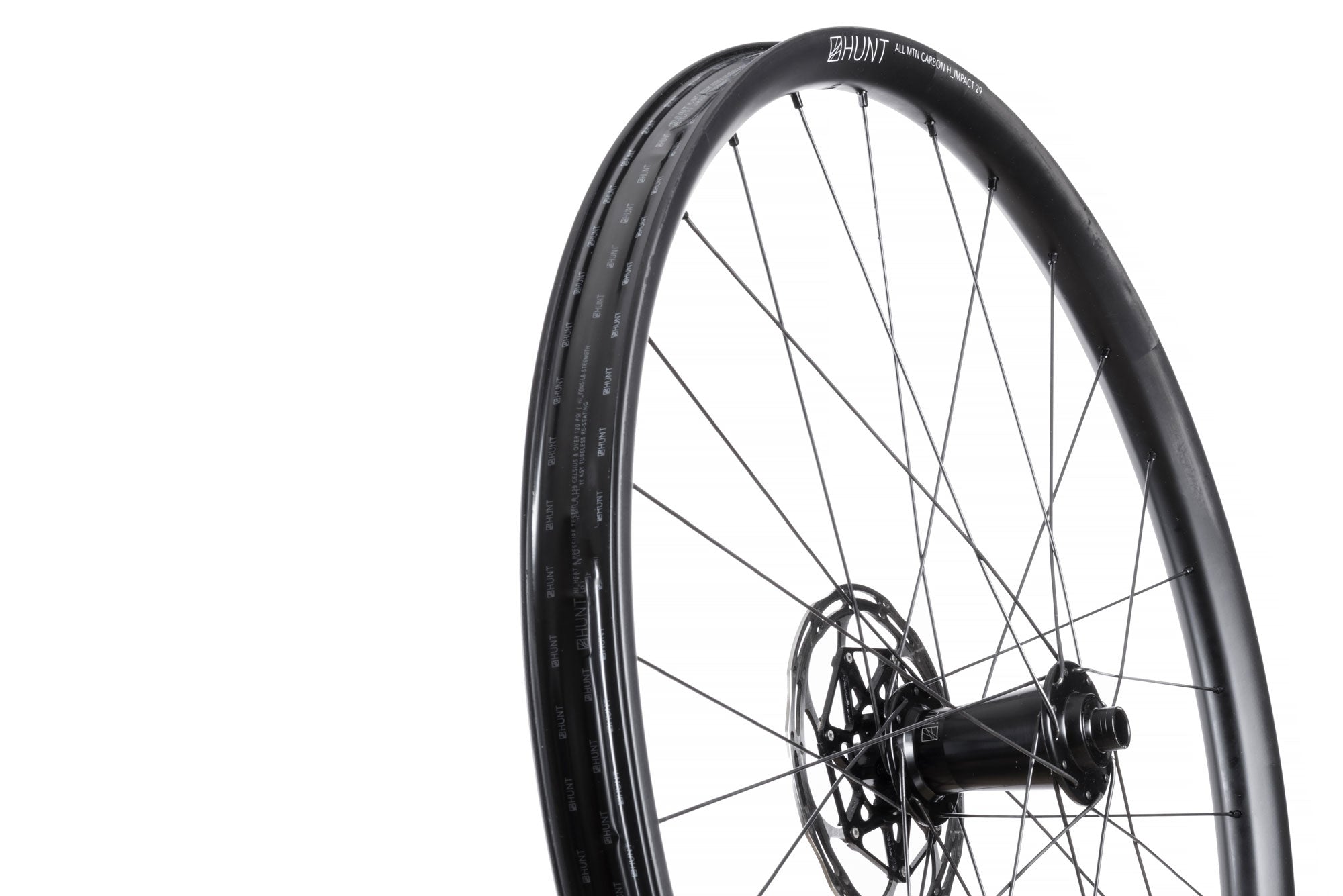

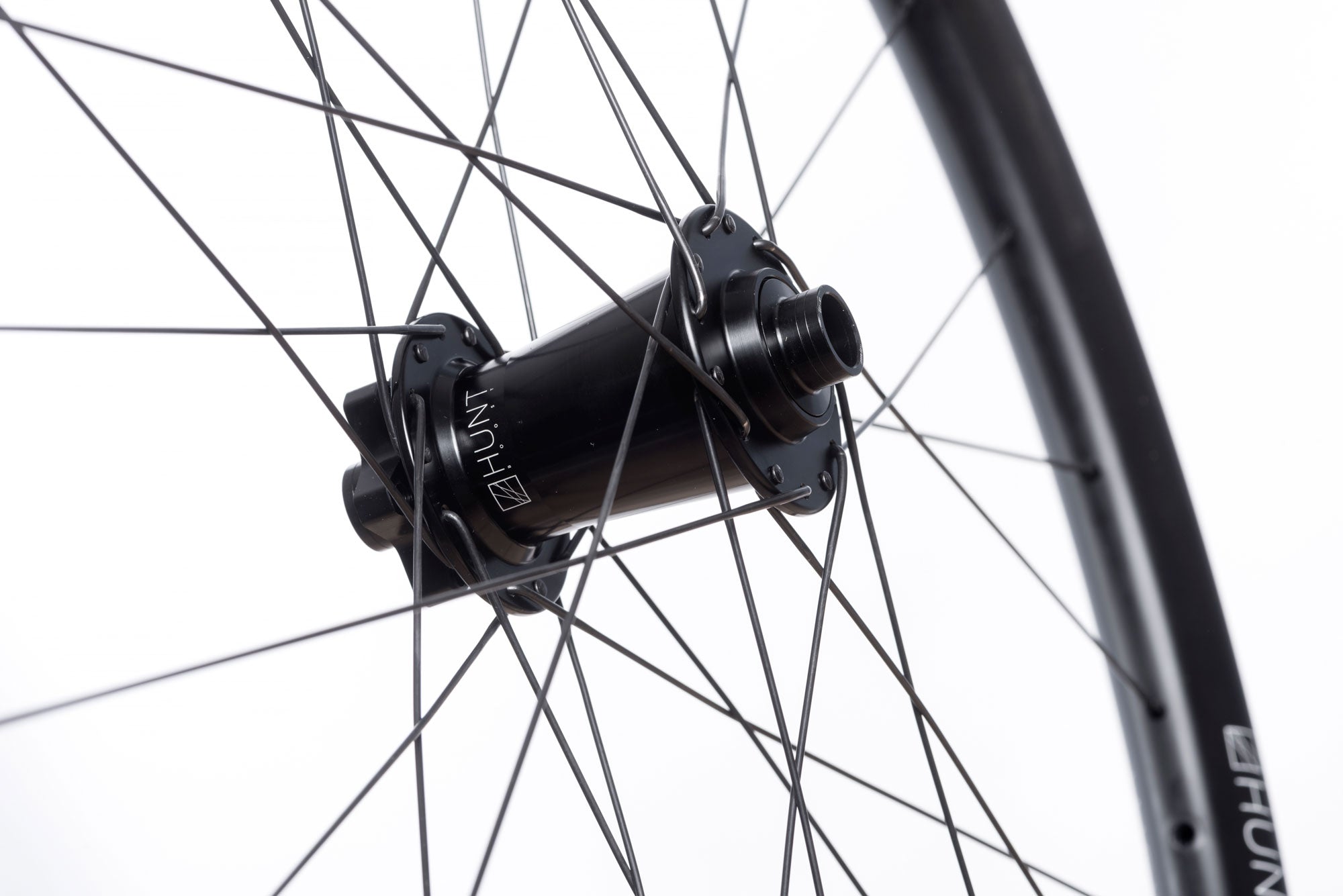

Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminum alloy Hub body
- 110x15mm. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
- Oversized 7075-T6 aluminum alloy axles.
- 6 bolt disc mount.
- Polished anodized black finish with laser graphics.

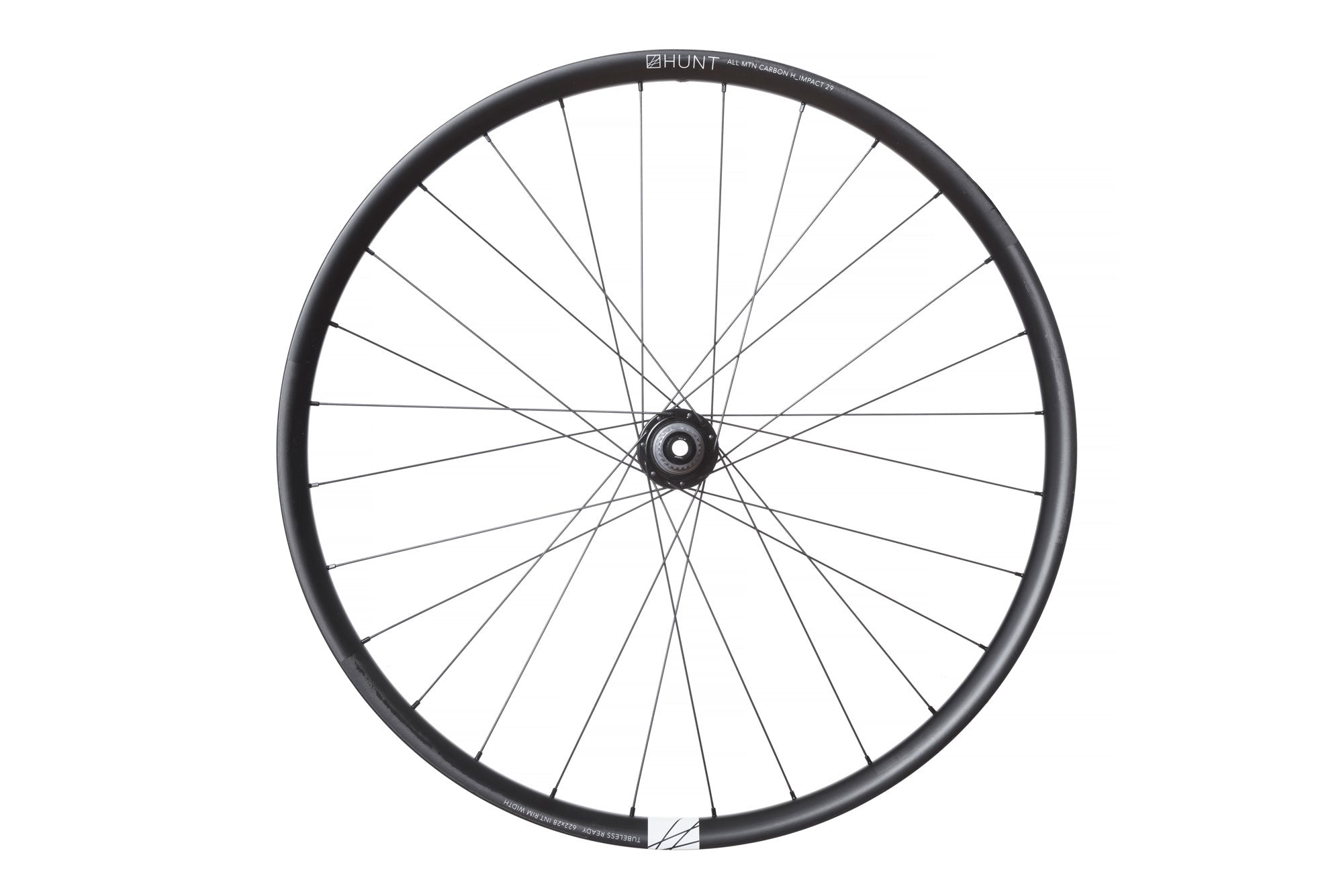

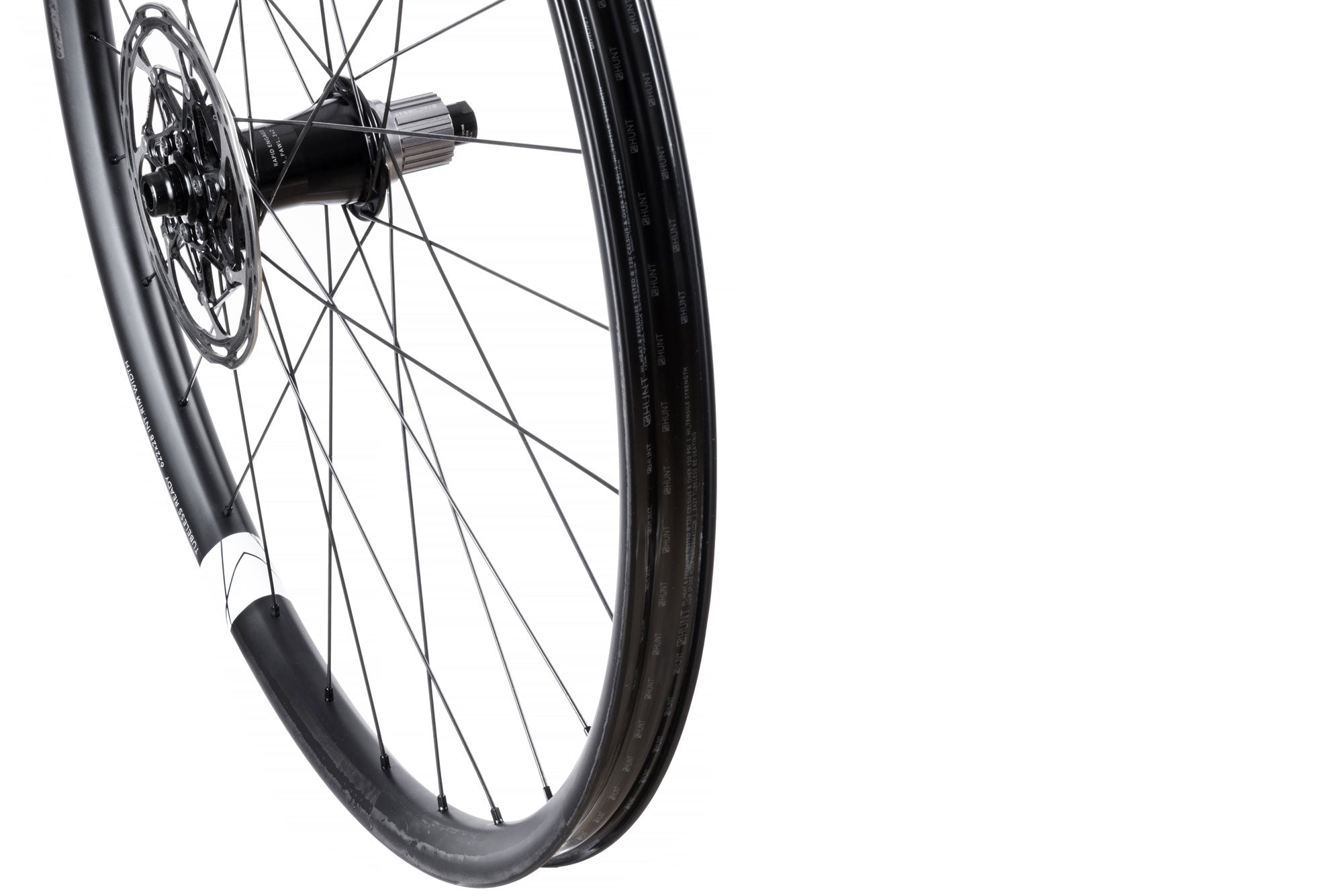

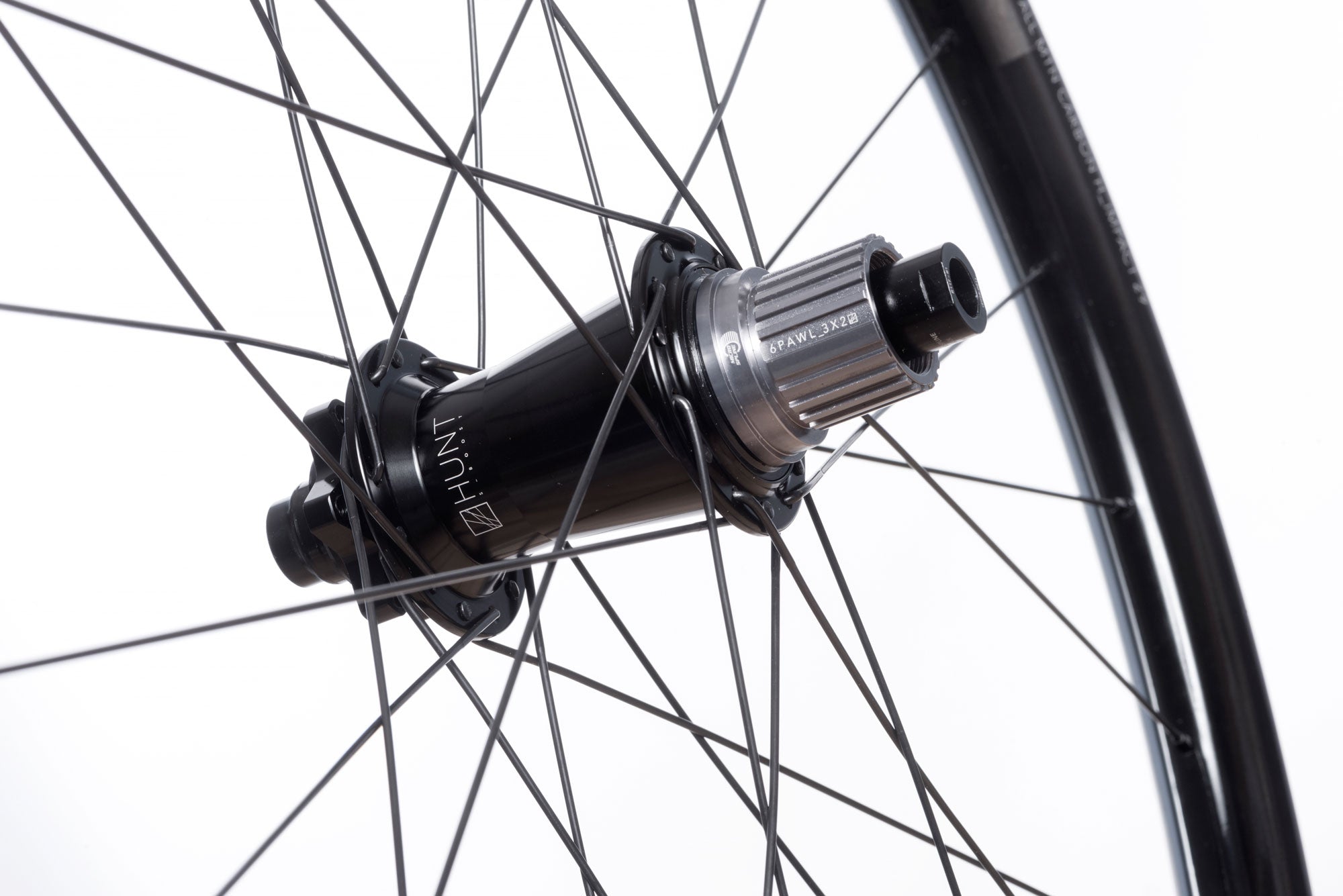

Rear Hub
- Forged and CNC’d 6061-T6 heat treated aluminum alloy hub body.
- 148x12mm spacing.
- Oversized 7075-T6 heat treated aluminum Axles.

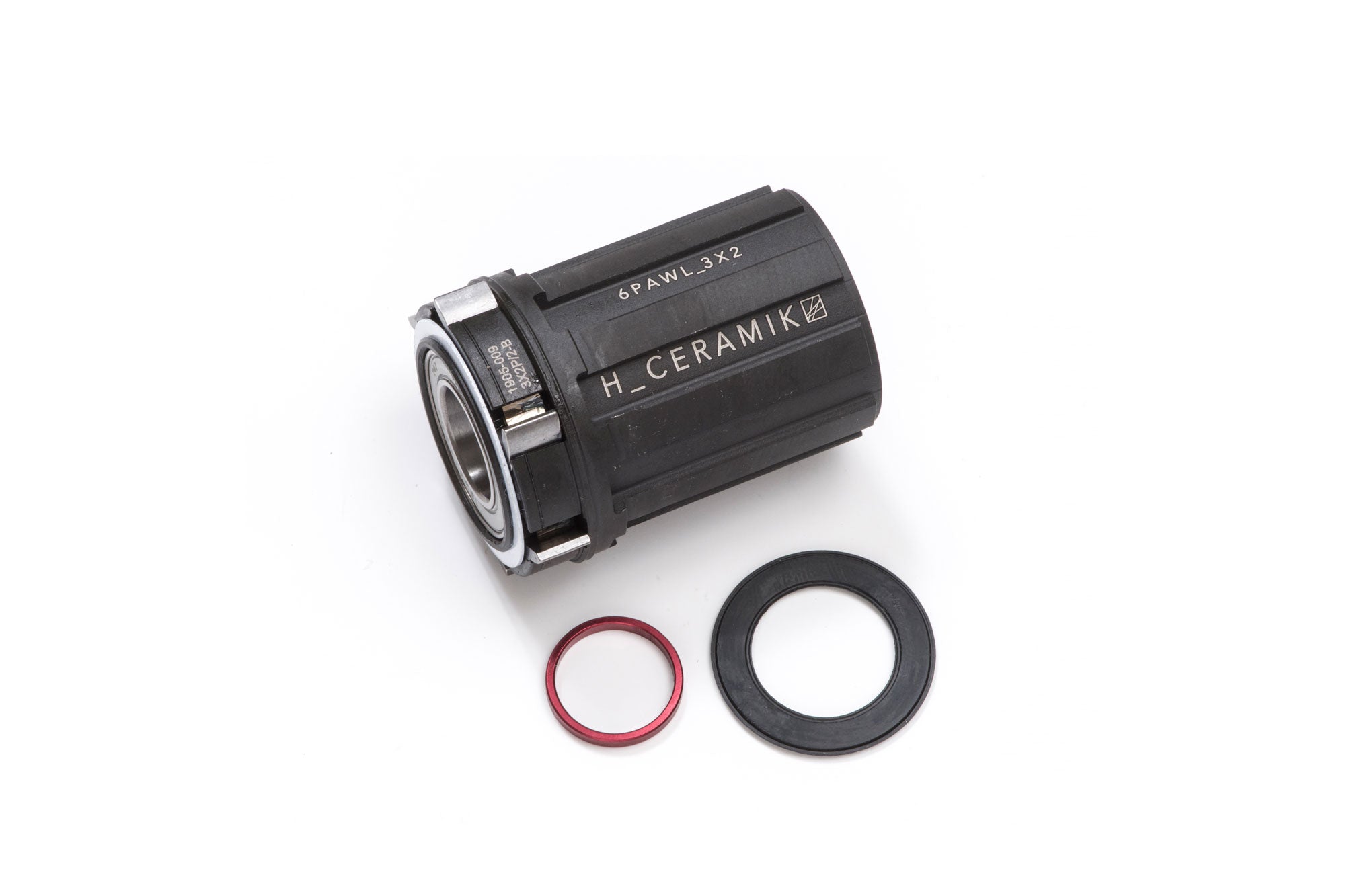

- 7075-T6 heat-treated aluminum alloy freehub body.
- 9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
- 7075-T6 aluminum alloy axles.
- Polished anodized black finish with laser graphics.
Bearings
- Precision sealed cartridge replaceable units.
- Large diameter ball bearings for extra durability.
- Dual full-contact rubber seals.
Warranty, Support and Weight Limits
*A lifetime crash replacement policy is offered to the original purchaser of the All-Mountain Carbon wheels if using single crown forks. please click here to read full details.
All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 40psi as this will reduce the fatigue on the wheelset.
We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tyre Options
These are only some of the options you can have fitted on your wheels. To see the full range, click here
 |
Schwalbe Hans Dampf 2.35" Snake Skin Soft Front / RearThe Hans Dampf is one of the most balanced tires out there. Providing superior control on rough terrain as well as amazing grip in flowy singletrack, the Hans Dampf is the best kind of all-rounder. The high-volume casing offers maximum braking traction and cornering grip for when the trail becomes aggressive. But when gravity stops working its magic, the Hans Dampf will not leave you behind. The continuous tread pattern is closely spaced meaning that this tire tracks well and has a lower rolling resistance over more aggressive options. |
Reviews

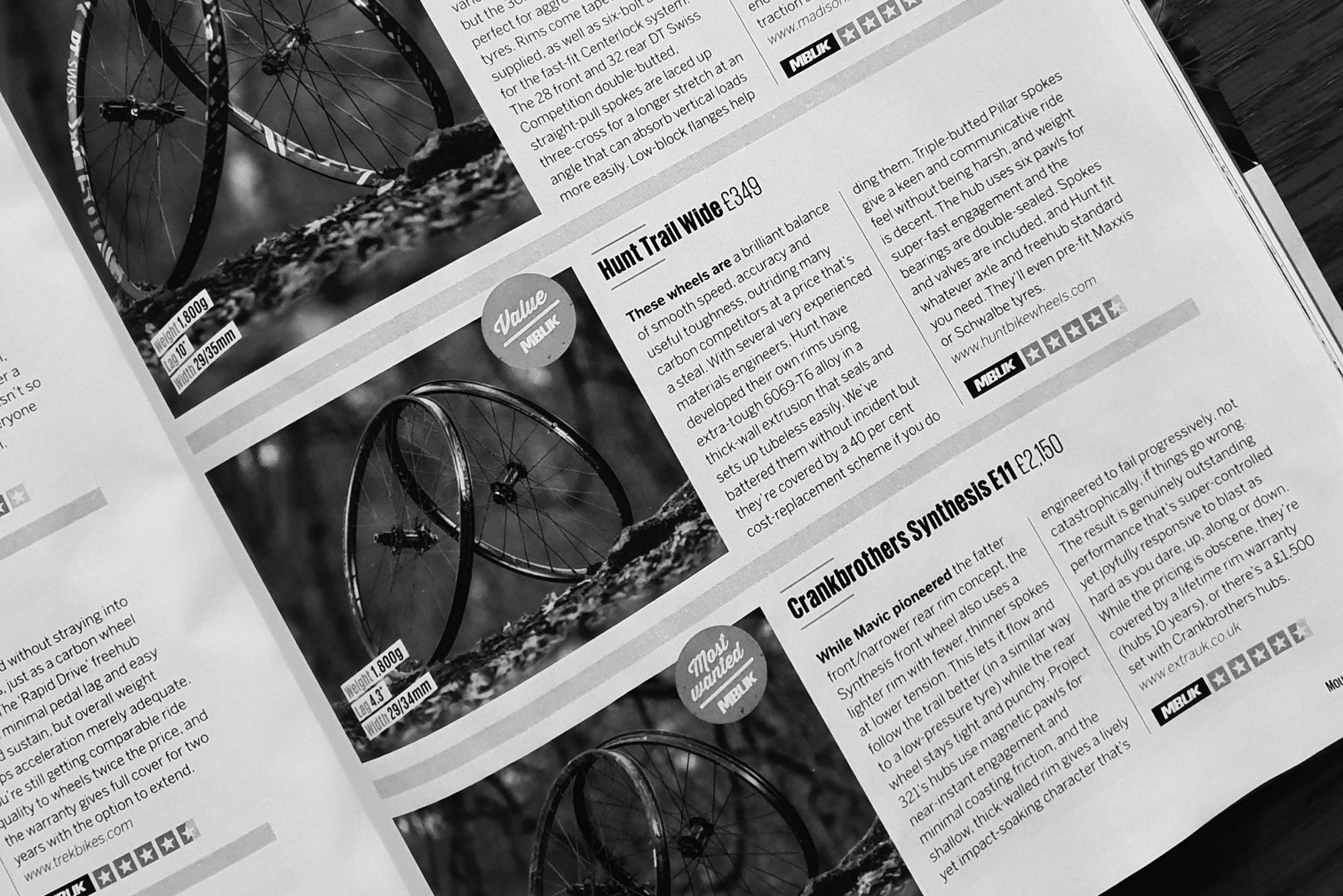

Bike Magazine and Website Experts' Views on our Trail Wide Wheelset
|
TGR Tested : The Best Carbon MTB wheels of 2019"Hunt's All Mountain carbon wheels have shockingly good performance, given the fact they are half the price of the competition." |
|
IMB Review"A truly great set of carbon wheels at a ridiculously good price. Hunt has nailed it with these hoops, and the crash replacement policy is the icing on the cake." |
|
10/10 REVIEW - HUNT Trail wide Wheelset"Lighter than most of the carbon wheels on test, the Trail Wides feel fast on the trail, and change direction rapidly. They also spin well with smooth, quality bearings and accelerate crisply under power. The rear wheel's super-fast engagement reacts as soon as you turn on the power at the crank, which is a real advantage for technical, stop-start climbing as well." See full review in the images above. |
|
4.5/5 REVIEW - HUNT Trail wide Wheelset"These wheels area a brilliant balance of smooth speed, accuracy and userful toughness, outriding many carbon competitors at a price that's a steal." See full review in the images above. |
 |
Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400?"With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered." |

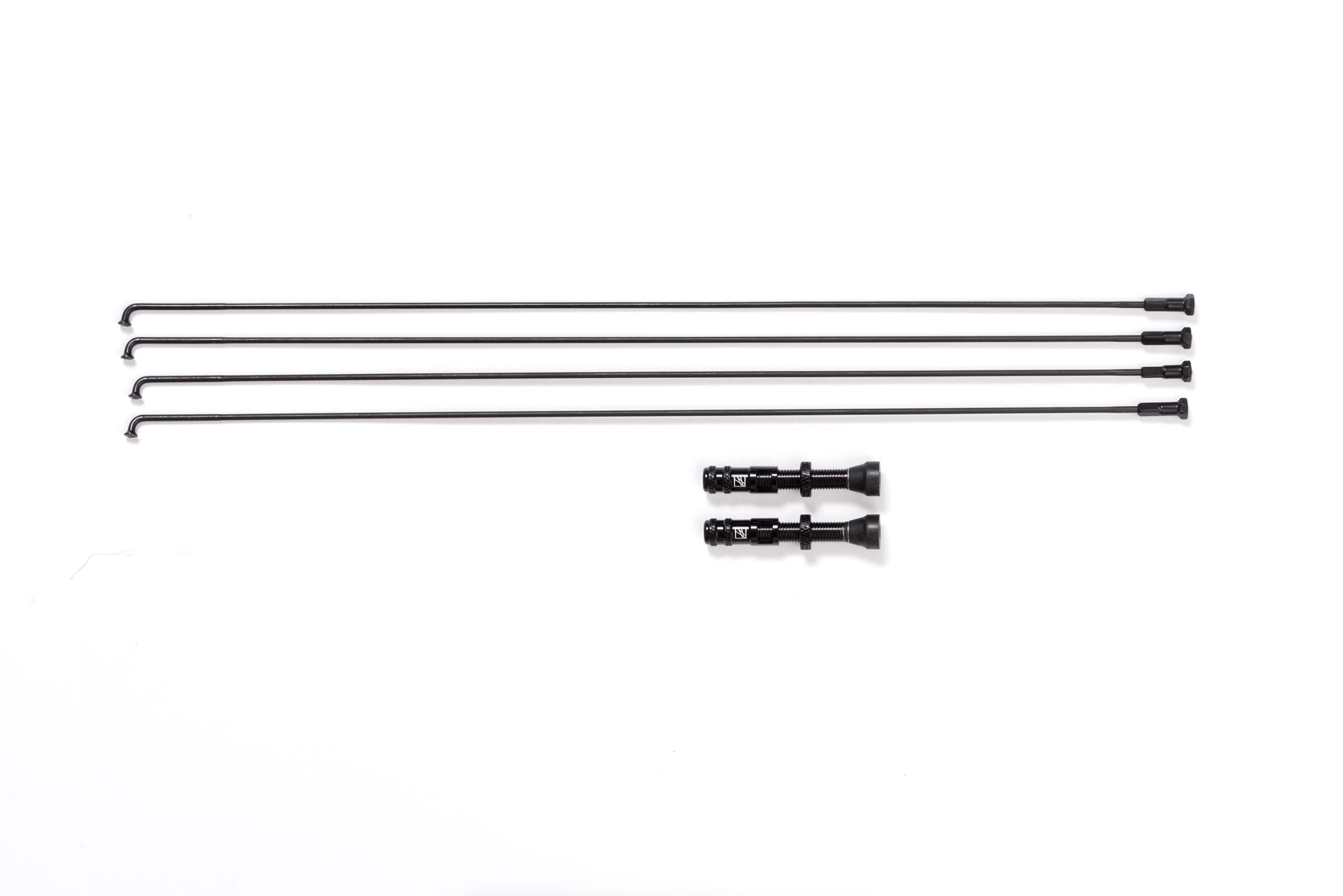

In the Box
Contents
- HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
All-MTN Carbon: Front and rear specific wheels optimized for compliancy up front and high impact strength out back.
Responsive, compliant and incredibly strong.
27.5/29" | 28 Wide Int | 1810/1878g
- LIFETIME CRASH REPLACEMENT* -
The Purpose
Designed for everything from big alpine days in the mountains where descents are timed in hours to your local push up trails; The All-Mountain Carbon H_IMPACT combines our 3° RapidEngage hubs and triple butted Pillar PSR spokes, with front/rear optimised rims to build an incredibly strong yet compliant wheelset.
Working with Downhill riders Becci Skelton and Tom Makin, of Steve Peat Syndicate Racing, the H_IMPACTs were well and truly put through the ringer. Although not designed for the demands of Downhill we wanted to ensure they were more than tough enough to handle anything an alpine descent can throw at you.
The V1 rims survived months of North Wales finest rocky tracks, until Tom finally cracked them. Although he’s no lightweight, it highlighted that we needed to try harder. So, Pete and Luisa worked further to test three other ideas in the lay-up schedule and materials choices. The V2 prototypes which resulted were 36% stronger in our laboratory impact tests for the same weight and dimensions whilst also using compliant low-temperature V:Absorbe resin. Tom is still trying unsuccessfully to break them.
The Purpose
Designed for everything from big alpine days in the mountains where descents are timed in hours to your local push up trails; The All-Mountain Carbon H_IMPACT combines our 3° RapidEngage hubs and triple butted Pillar PSR spokes, with front/rear optimised rims to build an incredibly strong yet compliant wheelset. Read More
Working with Downhill riders Becci Skelton and Tom Makin, of Steve Peat Syndicate Racing, the H_IMPACTs were well and truly put through the ringer. Although not designed for the demands of Downhill we wanted to ensure they were more than tough enough to handle anything an alpine descent can throw at you.
The V1 rims survived months of North Wales finest rocky tracks, until Tom finally cracked them. Although he’s no lightweight, it highlighted that we needed to try harder. So, Pete and Luisa worked further to test three other ideas in the lay-up schedule and materials choices. The V2 prototypes which resulted were 36% stronger in our laboratory impact tests for the same weight and dimensions whilst also using compliant low-temperature V:Absorbe resin. Tom is still trying unsuccessfully to break them.
Read Less
The Experts' View
Want to add tubeless tires?
We can supply or fit tubeless tires (including sealant) to your wheels.
The wheels are also designed to work excellently with clincher tires and tubes. See recommended tire options here.
Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
Specs Overview
We see wheels as a system, not an single component
- Rims | H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes, 28mm wide (internal), Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration.
- Hubs | 3° RapidEngage, boost (110/148) spacing hubs, large double sealed cartridge bearings. Rock Shox Torque Caps available. (We will fit them, just let us know in the simple form shown after checkout or add a comment in the notes section of the cart page).
- Spokes | 28F/32R Spoke Count, Triple Butted (2.2-1.6-2.0) PSR reinforced Pillar Spokes. Available in Black or Oil-Slick Ti-Nitride finish.
- Tires | Optimised for 2.3"-2.5" tires set up Tubeless, but also work very well with 2.25"-2.6". Also great with standard tires and tubes.
- Axles | Oversized 7075-T6 heat-treated aluminum alloy axles.
- See the full specs here
- Weight | 1810/1878g 27.5"/29"
More Tech
Rims
- 28mm internal width ideal for 2.3"-2.5" tire widths, but also work very well with 2.25"-2.6".
- H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
- Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
- Tubeless-ready – designed to work best with tubeless tires. Tubeless-rim tape and valves included.
- Hookless H-lock bead-seat up-kicks for easy and secure tubeless installation.
Spokes
- J-bend cold drawn.
- 28F/32R spoke count.
- Pillar Spokes made from Sandvik T302 (18/10) stainless steel.
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Black stainless or Oil-Slick Ti-Nitride treatment.
Nipples
- Hard-anodized alloy for weight reduction and strength.
- Square body for external adjustment and hex head for easy internal adjustment/tensioning. Hex/square spoke key included.
- Long 14mm thread for durability.
- 14 gauge.
- Black finish
Tires Info
- Maximum tire pressure for this rim is 60psi when used with an inner tube and 50psi when running the wheel set-up tubeless. Please do not exceed the maximum pressure stated on your tire.
- Designed to work perfectly with tubeless and non-tubeless tires.
- Suitable tubeless MTB tire combinations from Schwalbe and Maxxis are available to be fitted to your Hunt TrailWide Wheels.
Axle Size
- Boost - 148x12mm (Rear) with 110x15mm (Front). Rock Shox Torque Caps available - just add a comment in the notes section on the cart page.
- SRAM/Shimano 8/9/10/11 speed and SRAM XD compatible.
Front Hub
- Forged and CNC’d 6061-T6 heat treated aluminum alloy Hub body
- 110x15mm. Rock Shox Torque Caps for Boost option available - just add a comment in the notes section on the cart page.
- Oversized 7075-T6 aluminum alloy axles.
- 6 bolt disc mount.
- Polished anodized black finish with laser graphics.
Rear Hub
- Forged and CNC’d 6061-T6 heat treated aluminum alloy hub body.
- 148x12mm spacing.
- Oversized 7075-T6 heat treated aluminum Axles.
- 7075-T6 heat-treated aluminum alloy freehub body.
- 9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
- 7075-T6 aluminum alloy axles.
- Polished anodized black finish with laser graphics.
Bearings
- Precision sealed cartridge replaceable units.
- Large diameter ball bearings for extra durability.
- Dual full-contact rubber seals.
Warranty, Support and Weight Limits
*A lifetime crash replacement policy is offered to the original purchaser of the All-Mountain Carbon wheels if using single crown forks. please click here to read full details.
All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. 120kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 110Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires at max 40psi as this will reduce the fatigue on the wheelset.
We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.
Tubeless Tyre Options
These are only some of the options you can have fitted on your wheels. To see the full range, click here
|
Schwalbe Hans Dampf 2.35" Snake Skin Soft Front / RearThe Hans Dampf is one of the most balanced tires out there. Providing superior control on rough terrain as well as amazing grip in flowy singletrack, the Hans Dampf is the best kind of all-rounder. The high-volume casing offers maximum braking traction and cornering grip for when the trail becomes aggressive. But when gravity stops working its magic, the Hans Dampf will not leave you behind. The continuous tread pattern is closely spaced meaning that this tire tracks well and has a lower rolling resistance over more aggressive options. |
Reviews
Bike Magazine and Website Experts' Views on our Trail Wide Wheelset
|
TGR Tested : The Best Carbon MTB wheels of 2019"Hunt's All Mountain carbon wheels have shockingly good performance, given the fact they are half the price of the competition." |
|
IMB Review"A truly great set of carbon wheels at a ridiculously good price. Hunt has nailed it with these hoops, and the crash replacement policy is the icing on the cake." |
|
10/10 REVIEW - HUNT Trail wide Wheelset"Lighter than most of the carbon wheels on test, the Trail Wides feel fast on the trail, and change direction rapidly. They also spin well with smooth, quality bearings and accelerate crisply under power. The rear wheel's super-fast engagement reacts as soon as you turn on the power at the crank, which is a real advantage for technical, stop-start climbing as well." See full review in the images above. |
|
4.5/5 REVIEW - HUNT Trail wide Wheelset"These wheels area a brilliant balance of smooth speed, accuracy and userful toughness, outriding many carbon competitors at a price that's a steal." See full review in the images above. |
|
Is The Hunt Trail Wide The Best Wheelset You Can Buy Under £400?"With the Trail Wide being upgraded to a tougher alloy, and with only a slight increase in weight I believe that they are going to prove to be one of the best sub £400 wheelsets on the market for some time to come. They look classy, the quality is spot on and they keep rolling even when they’ve been battered." |
In the Box
Contents
- HUNT Black Shield PET high tensile strength tubeless tape fitted to wheels.
- Cassette spacer for 8/9/10 speed
- Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
