HUNT Proven Race XC UD Carbon Spoke 29 MTB Wheelset

1254g Width int size
30 mm 29"

Our lightest and most advanced carbon race XC wheelset weighing just 1254g.

Tuned carbon rims, 30mm internal rim diameter, ultra-lightweight but strong carbon UD spokes, and boasting our S_Radpidengae 2-degree engagement freehub.

Tyre size: Optimized for 2.2" to 2.4" tyres; work well with 2.0" up to 2.6" tyres

A perfect 5 star review for HUNT Proven Carbon Race XC UD from Mountain Bike Action.

"When climbing, these wheels simply rocket up anything we’re facing with relatively little effort."

£1,499
Limited Stock. Available Now.
29" (center lock) / Boost - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

We will ask for Axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

The Purpose _

<h1>Weight</h1><i>Engineered in West Sussex, UK and raced throughout the 2022 UCI XC World Cup season, Proven Carbon Race XC UD wheelsets weigh in at an unrivalled 1254g yet boast an impressive 30mm internal width for unbeatable strength and stability.</i>

The Purpose _

Beginning with the rims, Proven Carbon Race XC UD follow the principles of the rest of the Proven family, offering tuned compliance and stability with a modern 30mm internal width, but with the goal of making a competitive XC race wheel, low weight. Using carbon UD spokes the Proven Carbon Race XC UD is our lightest mountain bike wheelset.

Design changes like a reduction to a 22mm rim height and 36mm external rim width naturally reduce materials and weight, but our engineers didn’t stop here. Through the testing and study of carbon processes, resin choices and construction methods, we have been able to shave off every unnecessary gram while reinforcing key structural areas. The result is a front rim weight of 348g and a rear of 369g.

The search for speed didn't just stop at low weight. Our engineers also heavily invested in increasing efficiency by utilising super smooth EZO bearings throughout and updating our ratchet system to the latest S_RapidEngage system featuring a 3x2 pawl design and increased 90T ratchet for an incredible 2-degree engagement angle for instant power transfer from the pedal to the trail.

Full Specs _

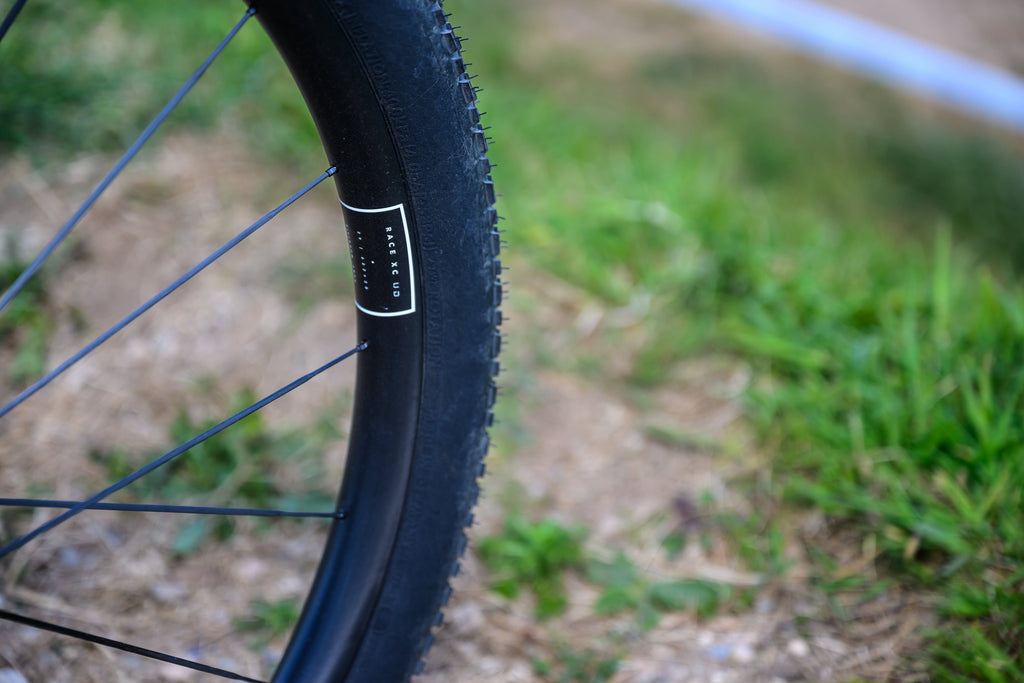

Rims
30mm internal rim width, 36mm external and 22mm depthLightweight construction, reinforced for strength.Front and rear-specific carbon construction, built for front-wheel compliance and rear-wheel strength.Hookless - Tubeless-ready – designed for use with tubeless tyres. Tubeless-rim tape and valves included.H-lock Wedge bead-seat up-kicks for easy and secure tubeless installation.Available in 29" only.
  • 30mm internal rim width, 36mm external and 22mm depth
  • Lightweight construction, reinforced for strength.
  • Front and rear-specific carbon construction, built for front-wheel compliance and rear-wheel strength.
  • Hookless - Tubeless-ready – designed for use with tubeless tyres. Tubeless-rim tape and valves included.
  • H-lock Wedge bead-seat up-kicks for easy and secure tubeless installation.
  • Available in 29" only.
Spokes
20F/24R Spoke countTaperLock UD carbon spokes30% less extension under load compared to steelLightweight and incredibly strongTaperlock UD spokes at 2.7 g per spoke can withstand a maximum tensile load of 405 Kgf2.7g per spoke
  • 20F/24R Spoke count
  • TaperLock UD carbon spokes
  • 30% less extension under load compared to steel
  • Lightweight and incredibly strong
  • Taperlock UD spokes at 2.7 g per spoke can withstand a maximum tensile load of 405 Kgf
  • 2.7g per spoke
Nipples
Secure Taper Lock Nipples.Lightweight alloy construction Designed to prevent spoke twistBlack finish
  • Secure Taper Lock Nipples.
  • Lightweight alloy construction
  • Designed to prevent spoke twist
  • Black finish
Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body110x15mm spacing.7075-T6 aluminium alloy axlesCenter-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.Gloss black finish with laser graphics.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body
  • 110x15mm spacing.
  • 7075-T6 aluminium alloy axles
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • Gloss black finish with laser graphics.

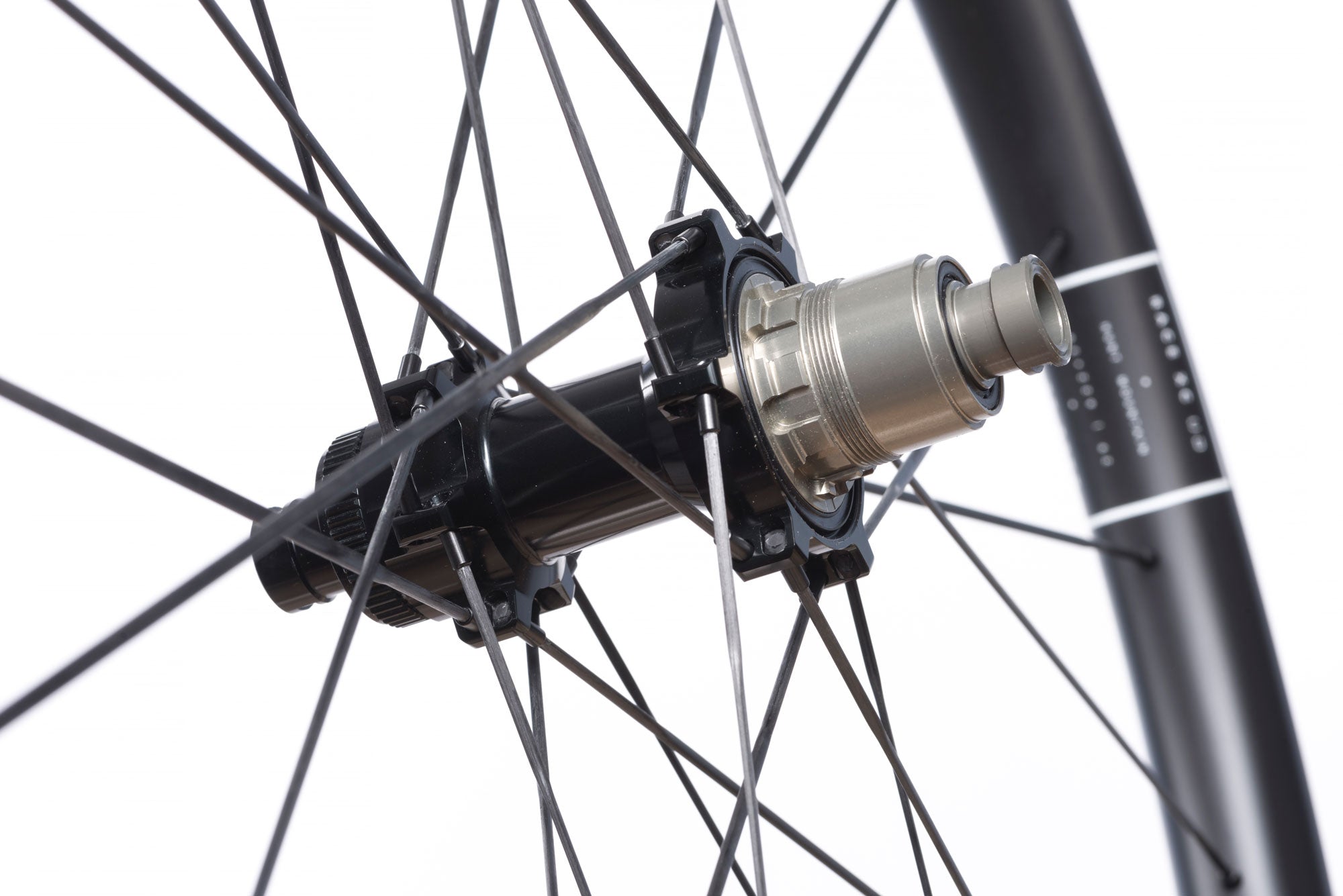

Rear Hub
CNC machined 6066-T6 heat-treated aluminium alloy hub body148x12mm Boost designH_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodiesUpdated S_RapidEngage 90T system2-degree engagementOveersized 7075-T6 heat-treated aluminium axlesCenter-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.Polished anodized black finish with laser graphics.
  • CNC machined 6066-T6 heat-treated aluminium alloy hub body
  • 148x12mm Boost design
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
  • Updated S_RapidEngage 90T system
  • 2-degree engagement
  • Oveersized 7075-T6 heat-treated aluminium axles
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
  • 9/10/11 speed Shimano/SRAM compatible freehub, Shimano Microspline and SRAM XD Driver version available.
  • Polished anodized black finish with laser graphics.
Bearings
Super smooth precision REVO bearings.Dual full-contact seals.Cartridge design for convenient servicing.
  • Super smooth precision REVO bearings.
  • Dual full-contact seals.
  • Cartridge design for convenient servicing.

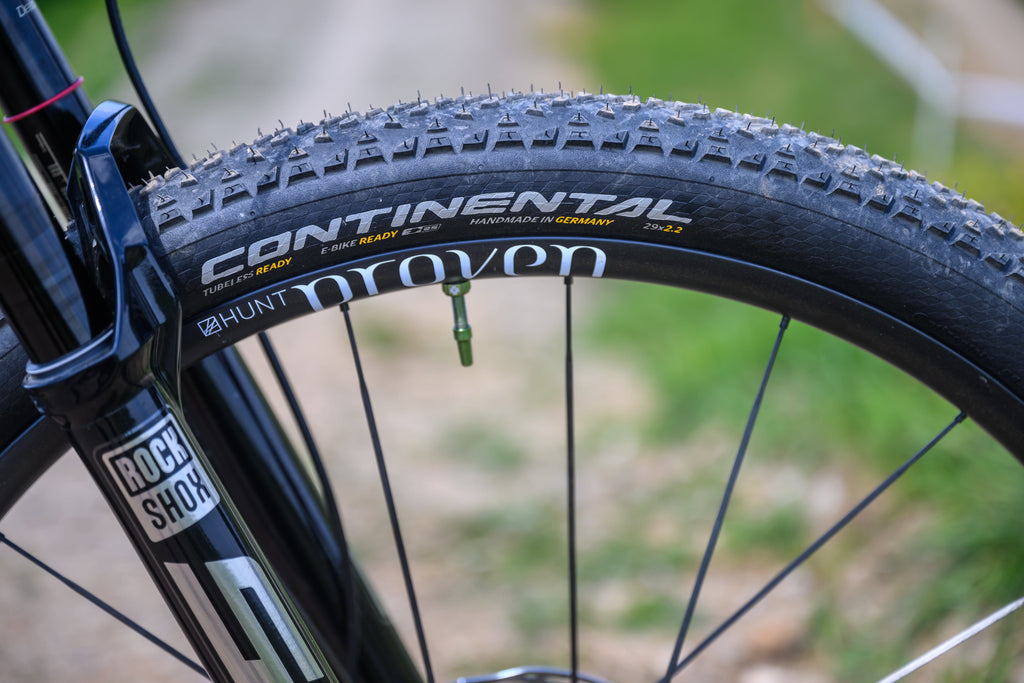

Tyres Info
HUNT recommends a 2.2"-2.4" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. Only use tyres marked as compatible with hookless (TSS) rims. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.2"-2.4" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • Only use tyres marked as compatible with hookless (TSS) rims.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
Boost - 148x12mm (Rear) with 110x15mm (Front).SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.
  • Boost - 148x12mm (Rear) with 110x15mm (Front).
  • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

HIGH SPECIFICATION COMPONENTS _

SPOKES

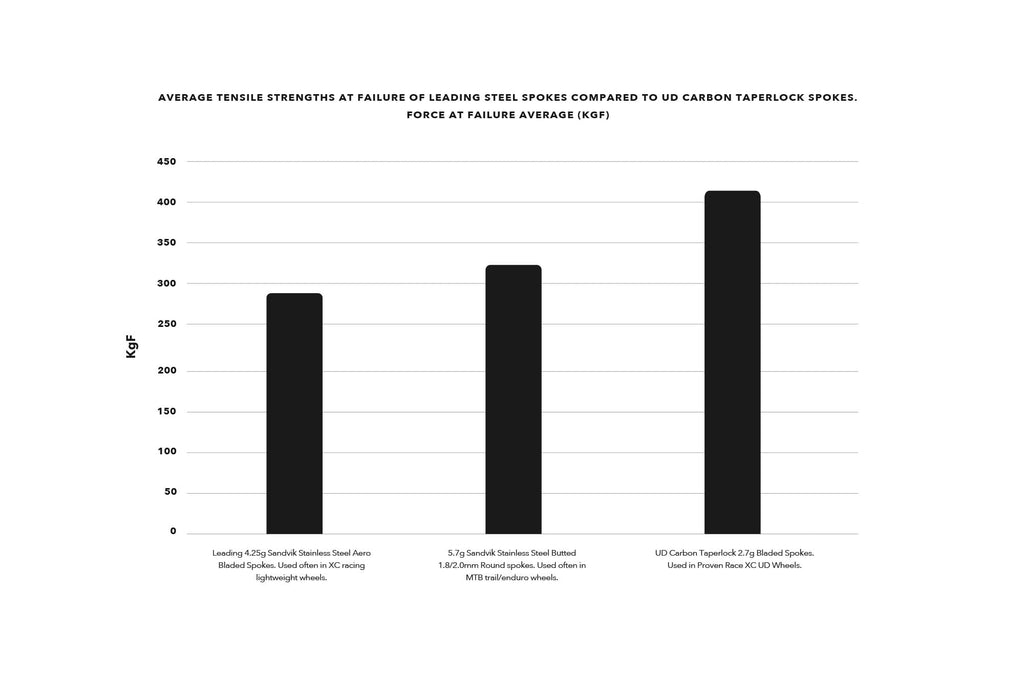

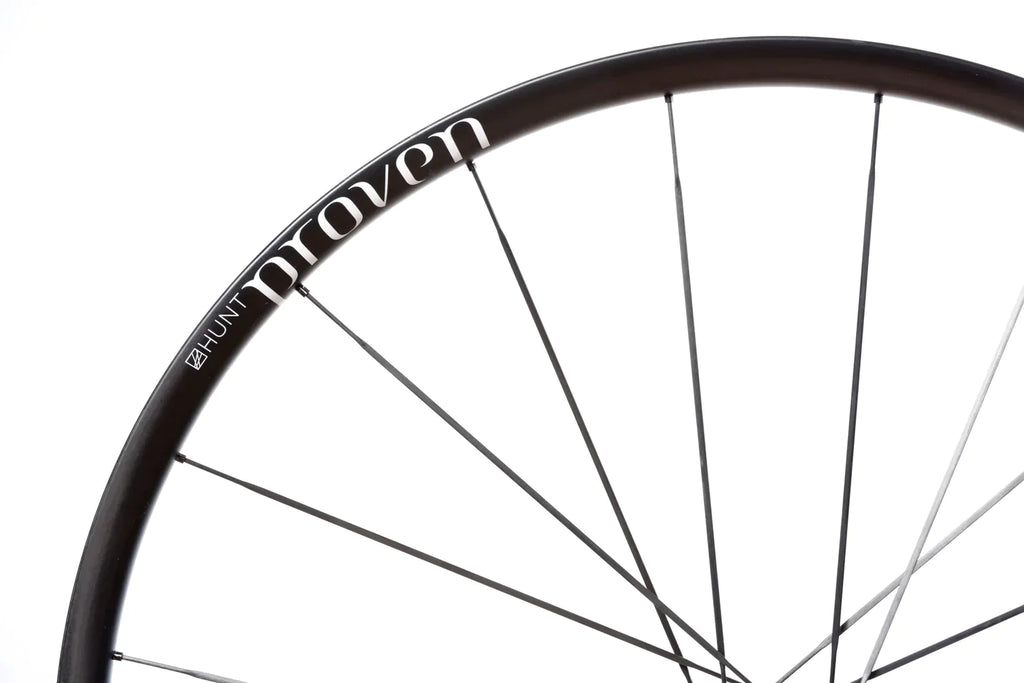

Pushing the boundaries of what's possible, we have borrowed race-winning technology from our advanced road wheels to cut weight and enhance performance. Cutting-edge TaperLock UD Carbon Spokes weigh just 2.7g per spoke but deliver an astounding 30% less extension under load compared to steel alternatives.

Weight

Engineered in West Sussex, UK and raced throughout the 2022 UCI XC World Cup season, Proven Carbon Race XC UD wheelsets weigh in at an unrivalled 1254g yet boast an impressive 30mm internal width for unbeatable strength and stability.

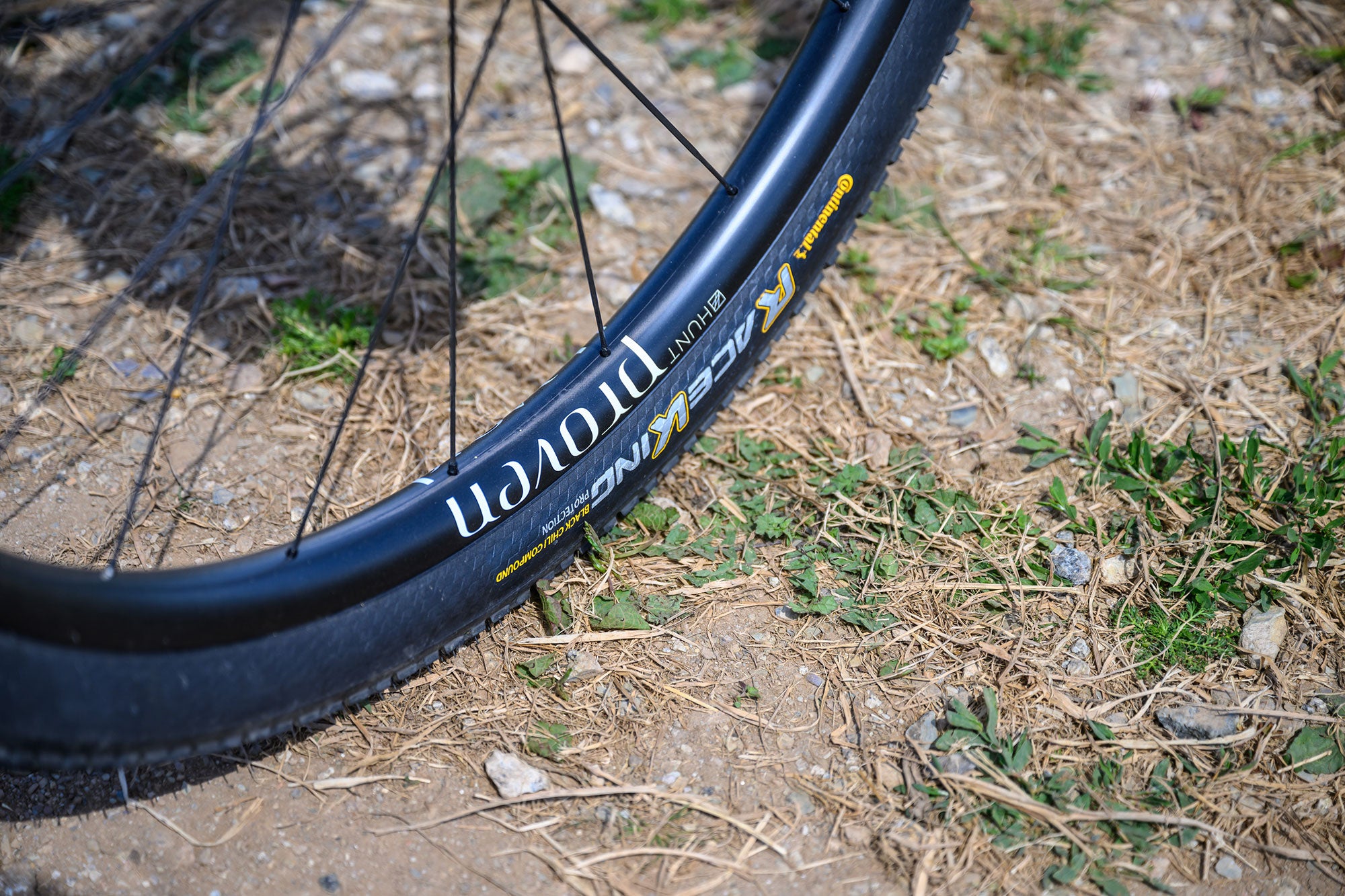

Nipples

Our lightweight alloy Taperlock nipples are designed to prevent the lightweight UD carbon spokes from twisting under harsh loads, ensuring equal tension from race to race.

Spoke Count

The perfect balance of strength and agility, the precision tuned spoke count has been developed for uncompromising performance. The 20F/24R spoke count ensures minimal weight resulting in rapid power transfer, comfort and accurate handling.

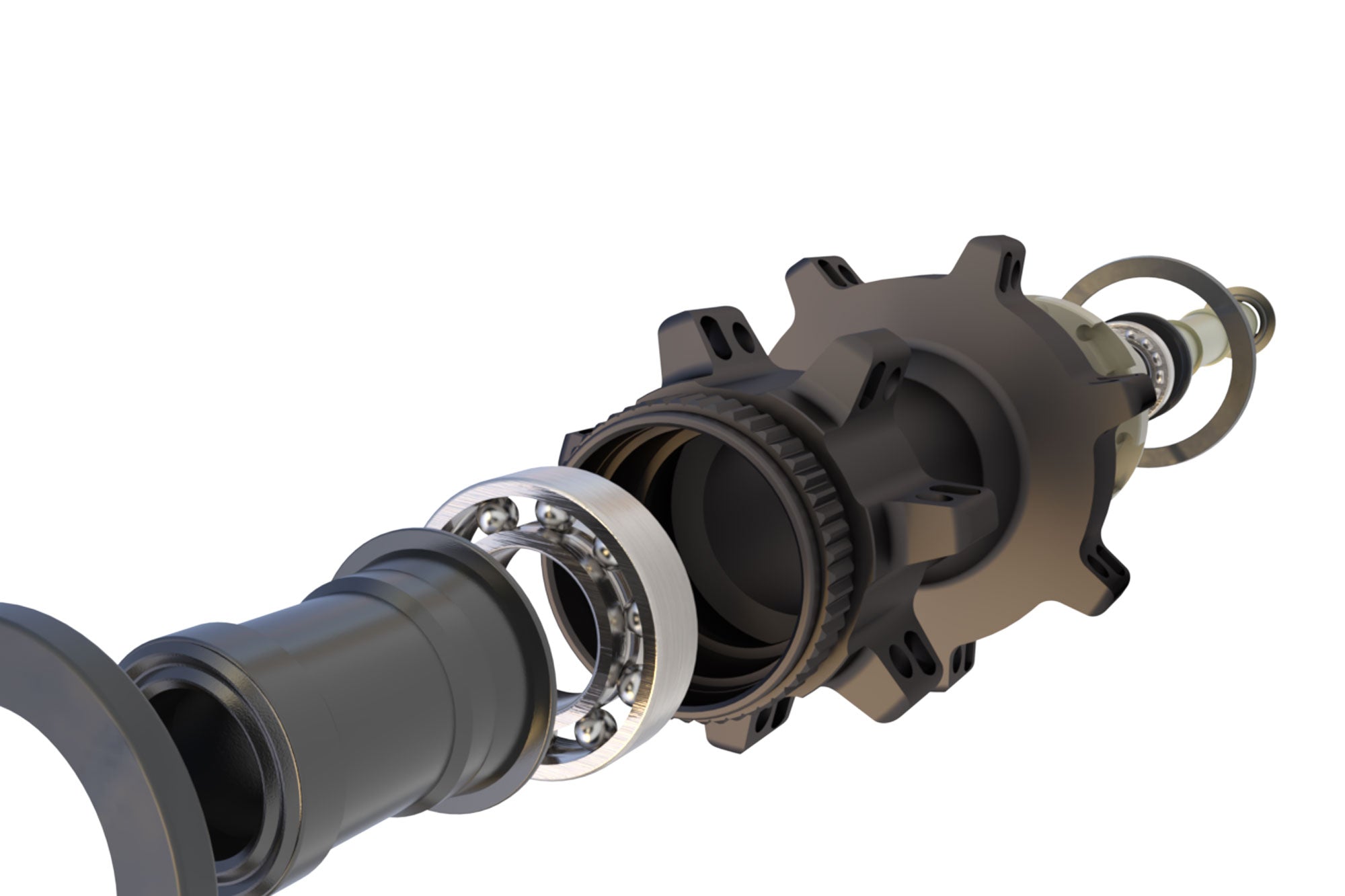

FREEHUB

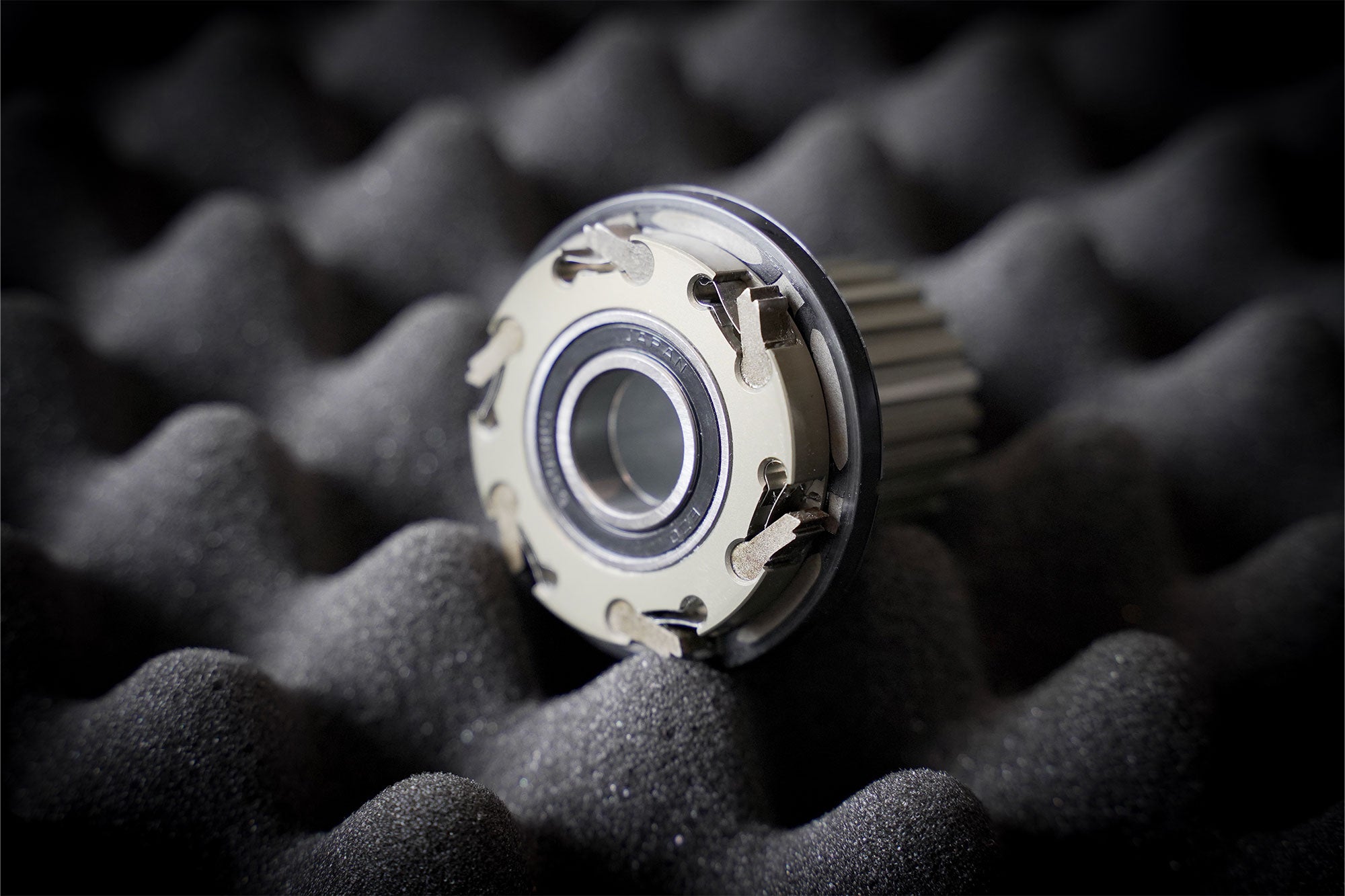

The all-new, race-ready S_RapidEngage freehub boasts 2 teeth per pawl to offer our fastest engaging MTB freehub to date. This race-ready 3x2 pawl system is mated to our new 90t ratchet ring with 6 durable pawls transferring power in an alternating pattern creating an almost instant 2-degree engagement for improved responsiveness and pedal input.

Bearings

Precision EZO bearings with dual full contact seals protect against dirt, mud and water, ensuring long lasting durability, and zero drag, unbeatable performance.

What's in the box _

  • HUNT Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 45mm Tubeless Valves
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><ul><li>HUNT Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners when used with single crown forks. Read all about it here.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135 kg (system weight – total weight of fully kitted up rider, bike and luggage). If the system is over 125 kg then an experienced bike mechanic should check the wheel regularly.

We've got your back

Rider Experience Support

Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

Spares Available

Any spares for our wheelsets can be found on our website. If you assistance, contact us and we can help you.

3-Year Warranty

We are riders ourselves and will do everything we can to get you back on the road and are here to support you. We offer a comprehensive 3-year warranty on all HUNT wheels including free returns if wheels need to be inspected. Goods found to have faults outside of normal wear and tear will be repaired or replaced (subject to stock availability).

60 Day Ride and Return

We are so confident that you'll be happy with you HUNT wheels that we offer a full 60 day to ride them & return for a full refund (or product swap). Click here to learn more.

ABOUT HUNT _

Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.

Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.

All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
