HUNT 50 Carbon Aero Disc Wheelset

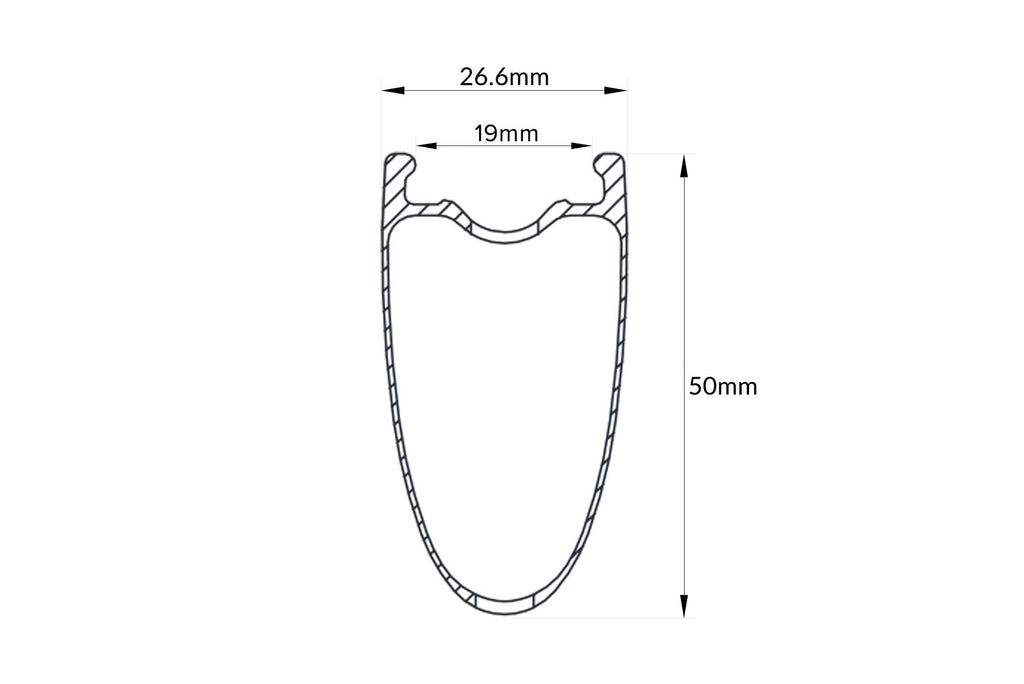

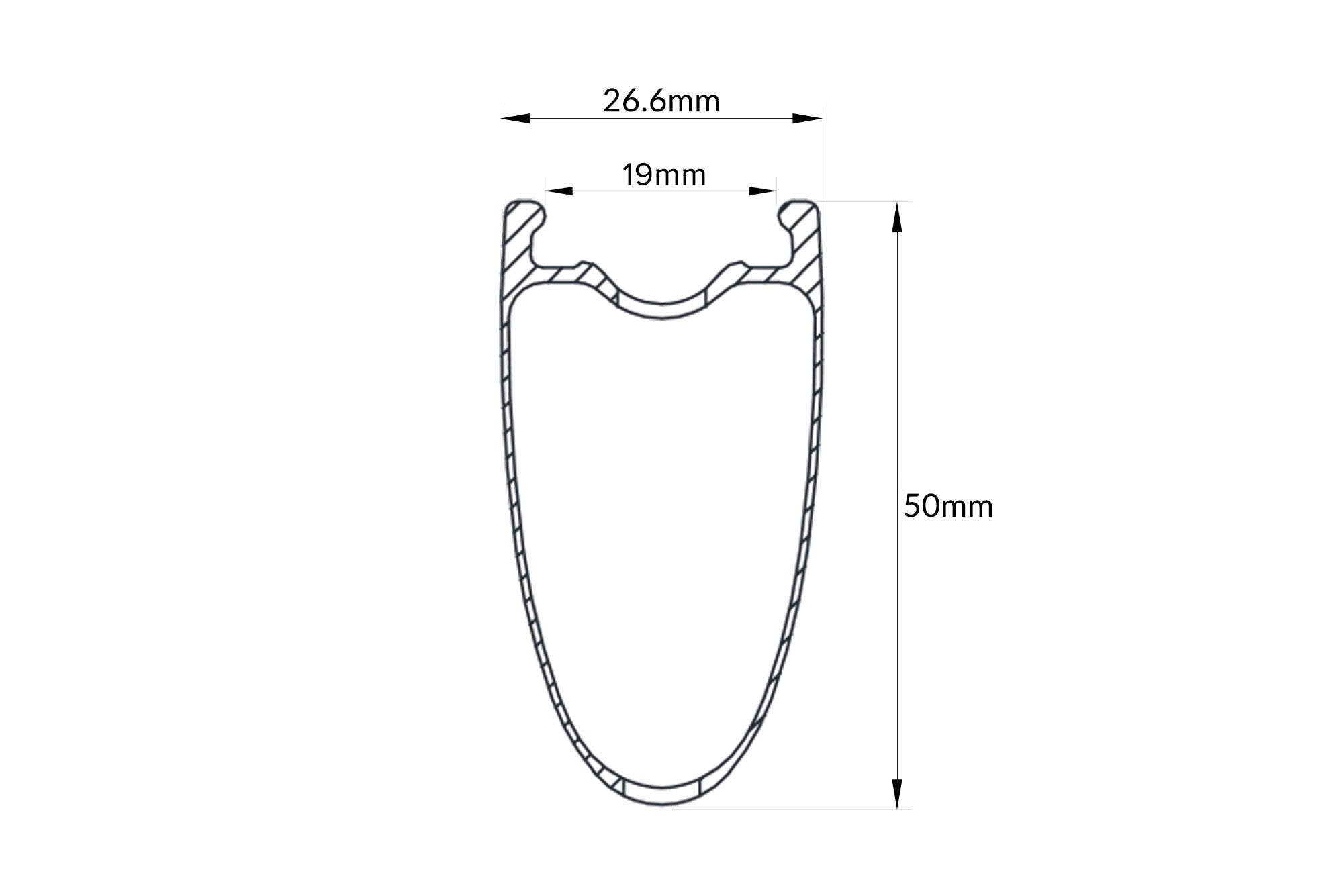

1487g Depth Width ext Width int size
50 mm 27 mm 19 mm 700c

With wind-cheating aerodynamic benefits, fast-engaging and reliable hubs, and proven track record in racing, the 50 Carbon Aero Disc is a favourite among riders for good reason. Ridden to Giro D'Italia stage victory by Team Qhubeka (Mauro Schmid, Stage 11, 2021 Edition).

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

The Purpose _

The Purpose _

Disc brake bikes have quickly become the norm in road races, criteriums, and even time trials, from the amateur ranks to the WorldTour, due to the numerous advantages provided.

The revolution is happening and to capitalise on the benefits, you will need an aero wheelset that delivers speed in buckets. Introducing the 50 Carbon Aero Disc, a HUNT best-seller and rider favourite, proven at the highest level of the sport. We’re proud to offer you the exact wheelset raced to victory on Stage 11 of the 2021 Giro d’Italia by Mauro Schmid of Team Qhubeka.

Read the full aerodynamics report on the 50 Carbon Aero Disc here.

Full Specs _

Rims
Hooked tubeless-ready rim profile.Full carbon fiber construction with re-enforced spoke holes.30mm external and 22mm internal width.50mm depth.UD finish with matte white contrasting graphics.
  • Hooked tubeless-ready rim profile.
  • Full carbon fiber construction with re-enforced spoke holes.
  • 30mm external and 22mm internal width.
  • 50mm depth.
  • UD finish with matte white contrasting graphics.
Spokes
24 front and 24 rear spokes with a 2-cross lacing pattern.J-bend cold drawn.Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).Black stainless treatment.
  • 24 front and 24 rear spokes with a 2-cross lacing pattern.
  • J-bend cold drawn.
  • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
  • Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless treatment.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.16mm length with washer for a strong connection to the spoke added durability.14 gauge.Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.
Tyres Info
HUNT recommends a 25-35mm tyre for best performance, tyre widths between 25mm and 50mm are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 25-35mm tyre for best performance, tyre widths between 25mm and 50mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mmRear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mmIf you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters.Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters.Please note; this form is shown after you have completed your order.

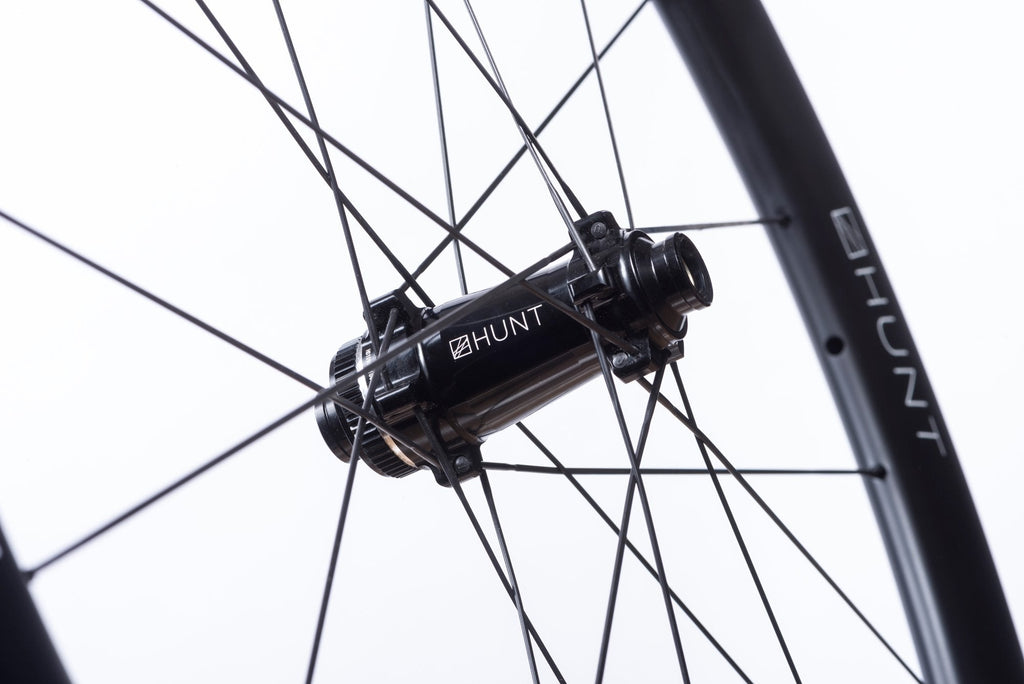

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Polished anodized black finish with laser graphics.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

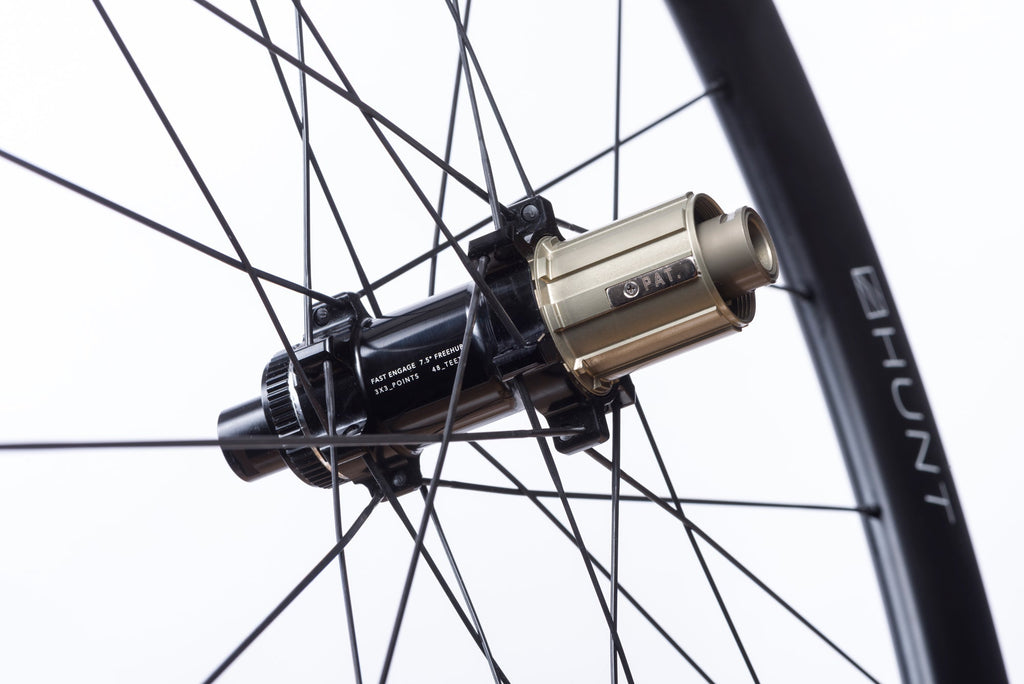

Rear Hub
HUNT H_Ratchet 36T SGLH_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.Single 36T Ratchet Ring equals 10° engagement.Forged and CNC’d 6061-T6 heat treated aluminium alloy body.7075-T6 aluminium alloy axles.Polished anodized black finish with laser graphics.All freehub standards accounted for.Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • HUNT H_Ratchet 36T SGL
  • H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
  • Single 36T Ratchet Ring equals 10° engagement.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • All freehub standards accounted for.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.Sealed cartridge replaceable units.Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.

HIGH SPECIFICATION COMPONENTS _

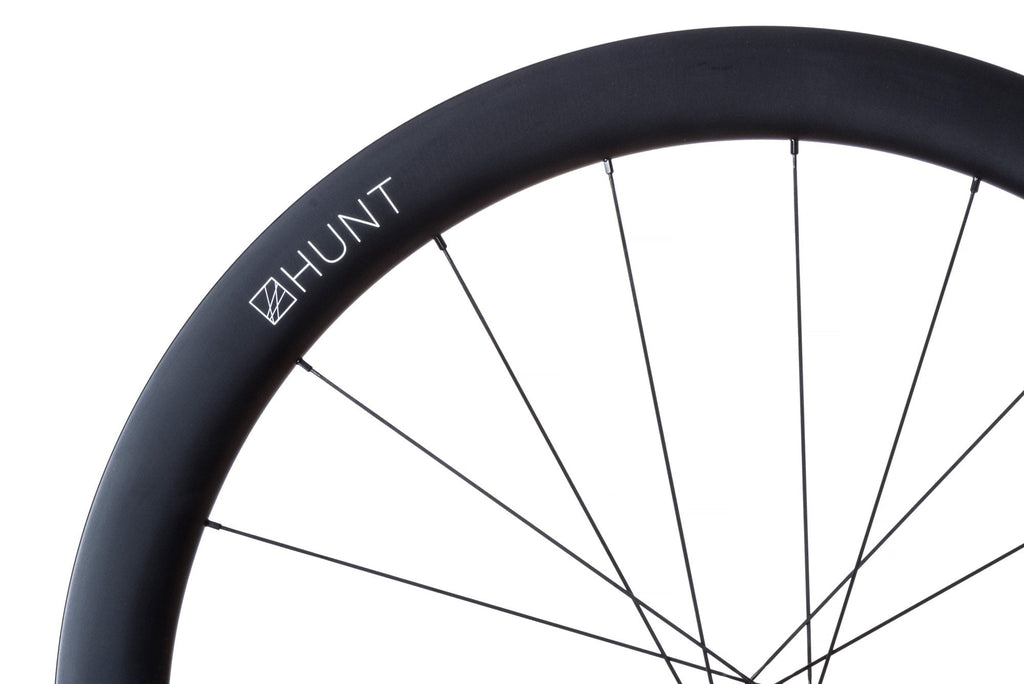

Rims

A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.

Freehub Body

Featuring 3 multi-point pawls with 3 teeth each and a 48t ratchet ring. The result an impressively low 7.5 deg engagement angle. Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by Japanese experts EZO. This wheelset has three of the rear hub bearings upgraded to S&S low-friction LU/LB seals on the internal bearing face to further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.

Spokes

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.

Rim Bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.

Rim Surface

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

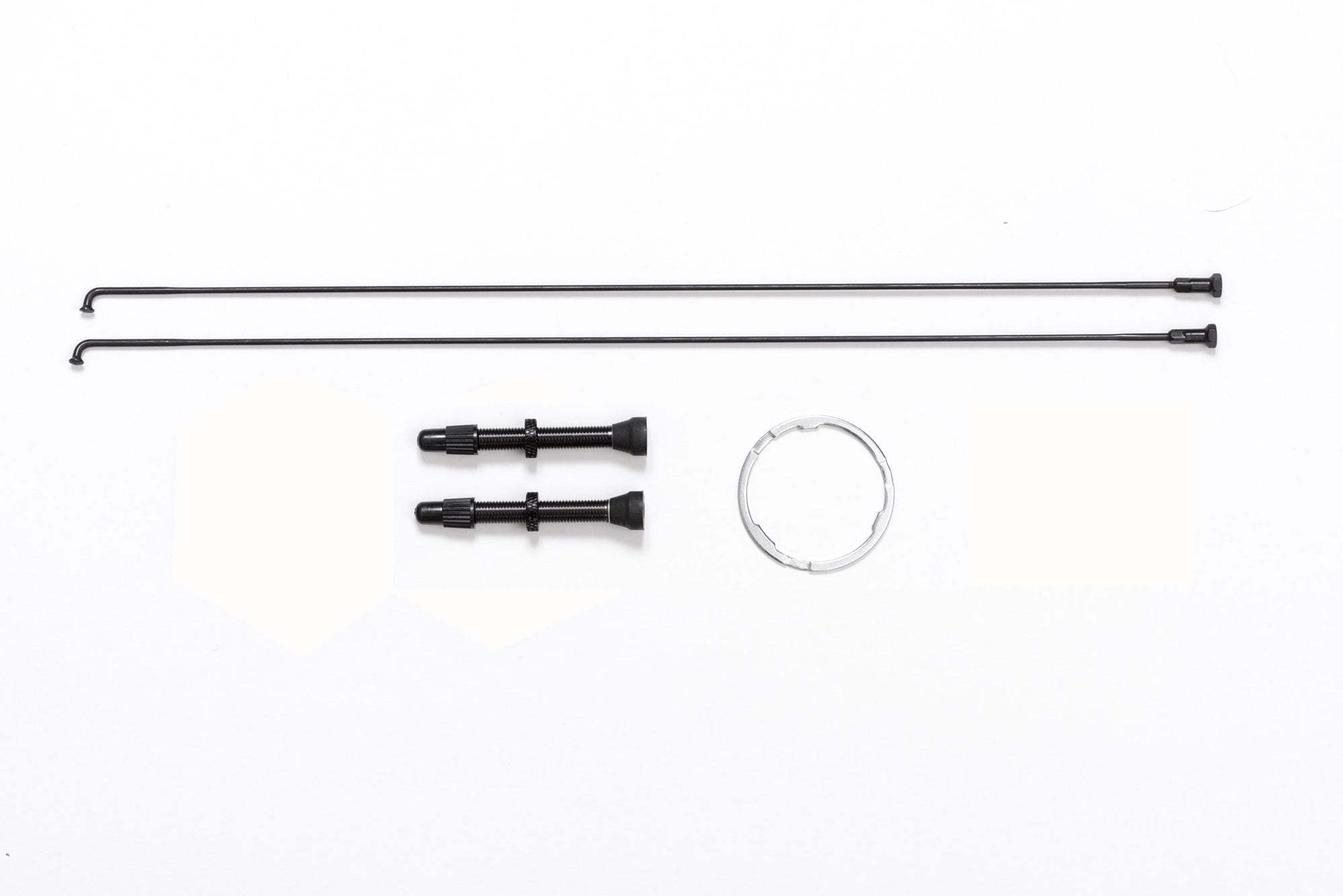

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.
  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
  • Cassette spacer for 8/9/10 speed
  • 60mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

<h1>In the Box</h1><i><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul></i>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

We've got your back

Rider Experience Support

Unmatched rider support, 7 days a week. For quick and immediate access to all the help you need, try our Live Chat. Our team consists of real bike riders who are fully equipped to answer any questions and help out. See Contact Us page for more details.

Spares Available

Any spares for our wheelsets can be found on our website. If you assistance, contact us and we can help you.

3-Year Warranty

We are riders ourselves and will do everything we can to get you back on the road and are here to support you. We offer a comprehensive 3-year warranty on all HUNT wheels including free returns if wheels need to be inspected. Goods found to have faults outside of normal wear and tear will be repaired or replaced (subject to stock availability).

60 Day Ride and Return

We are so confident that you'll be happy with you HUNT wheels that we offer a full 60 day to ride them & return for a full refund (or product swap). Click here to learn more.
